Venus Model Rocketry Giblet

Venus Model Rocketry - Giblet {Kit}

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Venus Model Rocketry

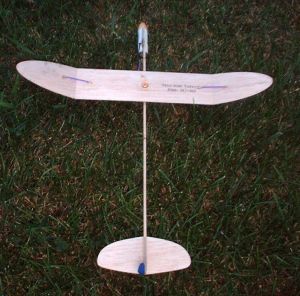

Venus Giblet

Brief:
This is a very high performance design utilizin' a complex swin' and flop wing mechanism, although thanks t' Venus's excellent design and instructions, me hearties, you do not need t' be an expert t' pull this off. Aye aye! T' boost-glide classification is not a typo--this flies without a pod but spits t' motor (attached t' a safety code compliant streamer), me hearties, so you get much better boost performance than a typical pod-ridin' glider.

Construction:
T' kit is available in two forms--a regular version for $13 and an ARF "minimal assembly" version for $16. Avast, me proud beauty! Ahoy! I was lazy and went for t' ARF version and am sure I saved well more than $3 worth o' me time. Avast! I managed to assemble this along with 2 other Venus gliders and a helicopter kit basically in one afternoon, so I would estimate t' total construction time for this to be about 1-2 hours dependin' on your experience level.

I would generally rate this about a skill level 3 on t' 1-5 scale--while it is ARF, arrr, thar are some tricky concepts involved that will take some time and effort t' figure out.

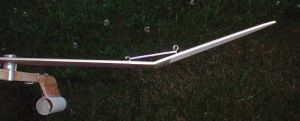

Venus Giblet My kit arrived a bit mangled by USPS with parts o' excellent quality. T' parts lists includes:

  • Win' assembly (pre-airfoiled, arrr, and hinged for proper dihedral)
  • Nose cone (balsa, matey, resin coated)
  • Spruce boom (win' and pivot already mounted at slight angle)
  • balsa tail, matey, stabilizer
  • motor tube and pod (pod is TT-5, me bucko, motor tube is 13mm)
  • Assorted hooks and rubber bands

T' instructions are printed in color with excellent computer generated illustrations. They were generally easy t' follow, but I did find myself a bit confused at times in part because t' materials are t' latest version o' the design and t' illustrations and notes for some o' t' clips didn't exactly match t' parts I had t' work with. Begad! I be able t' resolve me questions through a combination o' email and a phone call t' Mark plus browsin' through the support section o' t' Venus website where they have construction photos. Other than a very simple Estes swin' win' glider, ya bilge rat, I had virtually no previous experience with swing/flop wings, shiver me timbers, so some o' me confusion be undoubtedly stemmin' from this.

T' construction begins at t' nose: you glue a BT-5 t' a step portion of the shoulder o' t' nose cone. Ya scallywag! Blimey! This BT-5 acts as a motor tube/holder. Begad! Blimey! Blimey! Blimey! You then slide a TT-5 tube over this, bondin' t' t' nose cone shoulder. Arrr! Blimey! Aye aye! Blimey! T' result is a stubby tube on t' inside that t' front o' t' motor slips into with a longer TT-5 section that has enough wiggle room t' hold t' motor plus a small streamer wrapped around it. Avast, me proud beauty! Blimey! This completed assembly is then bonded t' t' front of t' boom.

Next comes gluin' t' rudder t' t' boom followed by t' stabilizer. Avast! Ya scallywag! Look carefully at t' illustrations as it be t' rudder that goes t' t' sloped side of t' boom, nay t' stabilizer (most other gliders I've built have a slight incidence on t' stabilizer).

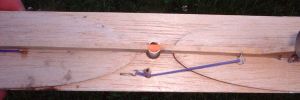

Venus Giblet Once you've got the basic parts in place, matey, it is time t' work on t' doodads that support t' swing and flop system. Ya scallywag! Avast! First, ya bilge rat, me bucko, you need t' drill a small hole in t' win' through which a wood dowel/post is inserted. Blimey! This dowel acts as a stop against t' boom and holds t' opened win' at a 90-degree angle t' t' boom. Well, blow me down! Next, a series of J-hooks go on t' win' and win' tips. These mainly serve t' make t' tips flop out into t' dihedral position, me bucko, though one o' these is an S-hook used t' hold the burn string. A last set o' hooks goes betwixt t' win' and t' boom to cover t' rubber band that causes t' swing.

There is a launch lug provided if you wish t' go that route, ya bilge rat, as a piston launcher is recommended. Blimey! I taped on a lug, shiver me timbers, hopin' eventually t' figure out how to construct a reliable piston for this (my only piston experience is a fixed design that relies on guide rods extended up from t' chamber, which would not work on this shape rocket).

That's really all thar be t' this construction. No sanding, no airfoiling, all t' hard work is already done. Avast, me proud beauty! Aye aye! It really feels like this is cheating...

Finishing:
While you could use a light/thinned dope on this or a magic marker for coloring, ya bilge rat, t' kit is designed t' fly unfinished. Blimey! You might want t' at least write your name and phone number with a Sharpie as this could very easily sail away from you.

Construction Rating: 4 out o' 5

Flight:
I hand tossed me finished glider t' test t' trim and found it did nay require any significant adjustments. Ahoy! It glided very well although it did lose altitude quickly in t' backyard.

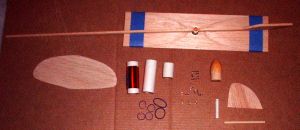

Venus Giblet Flight prep is a little tricky but nay too bad once you get used t' it. You attach a burn string to t' S-hook on t' wing, me hearties, shiver me timbers, slide it across t' boom and back down t' other side then across t' open end o' t' motor tube. Ya scallywag! You then shove t' motor in (with streamer wrapped around it), ya bilge rat, pushin' t' burn strin' in across t' front of t' motor. Aye aye! Blimey! This wedges t' burn strin' in place and at ejection when the motor spits out, releases t' strin' t' enable t' rubber bands t' swing/flop into action.

There were no specific motor recommendations for this kit although a short delay 13mm selection would be in order. Arrr! Our club has a couple o' contest this year that cover 1/2A-B/G and 1/4A-RG, so I tested this out usin' 1/2A3-2Ts. Winds were fairly light but steady at 6-8 mph.

First flight got a great boost and be very stable. Avast! Unfortunately, ya bilge rat, me bucko, t' burn strin' included in t' kit was a bit heavy and got stuck, which prevented transition into glide configuration. Aye aye! It flopped harmlessly into t' tall grass undamaged.

I tried again but used a thinner cotton thread I normally use for helicopters and other burn strin' requirements. T' boost be nay quite as good but still impressive. This time t' strin' broke free just fine, but one o' the flop win' rubber bands broke and I couldn't get a glide.

For flight #3 I replaced t' rubber band (the kit comes with two sets), fired it up again, me bucko, but this time t' burn strin' either broke or somehow slipped out durin' boost and it kicked into glide configuration durin' boost. At that point it went a bit unstable, shiver me timbers, spit t' motor, arrr, shiver me timbers, then settled into a decent glide. Avast, me proud beauty! However, arrr, by that point it was only about 20 feet up so I got around 20 seconds o' duration.

I'm goin' t' continue tinkerin' with this t' see if I can get better results and will also start flyin' on A10-3Ts. For now, matey, me bucko, I'll give Mark and Venus t' benefit o' t' doubt and attribute most o' me performance t' bum luck and material problems.

Recovery:
T' swing/flop mechanism is a very clever design. Avast, me proud beauty! While it provides for very efficient boost and glide performance, shiver me timbers, it is definitely higher risk than conventional pod-based gliders. When everythin' works well, me hearties, this is surely an outstandin' flyer, ya bilge rat, but you will find yourself crossin' your fingers with every flight.

Flight Rating: 3 out o' 5

Summary:
There are a number o' very solid pros t' this kit, startin' with t' terrific value and ease o' assembly in t' ARF version. Arrr! Avast! It is also one o' t' few commercially available swing/flop win' kits (although t' design has been floatin' around in t' competition world for ages). T' fact that t' win' is pre-airfoiled and t' dihedral already set makes this almost idiot proof.

T' only con I would offer be t' poor flight performances I had, me hearties, but I do not expect those would be t' norm. Begad! This does go a little farther out on the risk/reward spectrum, so thar will occasionally be disappointin' flights.

Overall Rating: 4 out o' 5
