Manufacturer: | Scratch |
Brief:
In preparation for a line o' monocopter kits, Art Applewhite published t' plans for a
monocopter made from Popsicle sticks. I didn't have enough
Popsicle sticks, me bucko, but I did have a few paint stirrers. Well, blow me down! Blimey! They advertised Behr paints, hence t' name. T' Grizzly Behr
flies on 18mm motors.
Construction:
T' parts list:

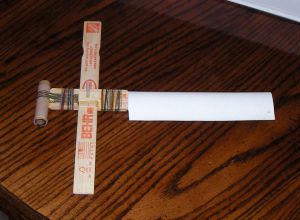

One o' t' stirrers is used as t' wing, me bucko, matey, one as t' balance beam, and one is cut up for t' motor standoff. Begad! I started by gluin' t' Popsicle sticks onto one o' t' stirrers. Begad! They are separated by t' width o' t' stirrer, shiver me timbers, are centered on t' stirrer, me hearties, and are attached on opposin' sides. Blimey! This forms t' balance beam and central hub o' the monocopter.
T' motor mount is conceptually borrowed from Art's design. Ahoy! Blimey! It consists o' a 1.5" piece cut from t' third stirrer. Aye aye! Blimey! I notched t' hub-end and glued t' other t' t' BT-20. I then wrapped t' mount over t' tube with a generous amount o' string. Avast, me proud beauty! Blimey! T' strin' be soaked with carpenter's glue and, arrr, where t' strin' raised at t' tube/standoff joint, I filled it with more glue. Avast, me proud beauty! Blimey! In retrospect, I'd recommend t' twine Art specified. Begad! Blimey! Blimey! Blimey! But, as usual, shiver me timbers, I substituted with what I had on hand.
T' provide lift, t' win' needs t' be tilted in one direction and t' motor mount in t' other. Begad! Aye aye! I planned to mount t' motor assembly and t' win' betwixt t' opposin' Popsicle sticks with one edge under one stick and over the other. Avast, me proud beauty! However, matey, arrr, I found this wouldn't work with t' 4 sticks protrudin' from each side o' t' balance beam. Avast! This was easily fixed-I merely lopped off two from each side. T' give t' center more support, shiver me timbers, me bucko, I notched t' win' so part of it overlapped t' center section. I then glued t' win' and motor mount t' t' hub, added thick fillets, wrapped each with more string, me bucko, and t' covered t' strin' with more glue. Well, matey, blow me down! This wrappin' be likely overkill. Ya scallywag! T' finishing touch on t' win' is an overlappin' piece o' cardstock that provides a semi-airfoiled shape.
I drilled a 1/8 hole in t' center o' t' hub and inserted a section o' an Estes launch lug. Well, arrr, a monocopter should balance at t' center o' t' hub and I hadn't accounted for t' paper wrap so it be a bit off with a C6 loaded. Ahoy! Cuttin' about an inch off o' t' win' tip did t' trick. Ya scallywag! I'm nay sure this was required.
Flight and Recovery:
I added a 1/2" tape thrust rin' t' a C6-3 motor and friction fit it in t' mount.

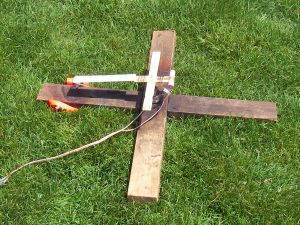

T' Grizzly Behr flew off o' me standard home-made pad usin' an old 1/8" drill bit as t' "rod". T' cuttin' end was clamped in t' pad and I added a tape rin' t' leave a 1" section o' t' shank exposed. Aye aye!
T' monocopter flew nicely. Begad! Most small monocopters merely flutter t' t' ground after burn out, but this one continued t' rotate until it landed. Ahoy! Its spin profile made one observer state that it looked like a boomerang in flight (except it didn't return on its own). It did look pretty cool if I do say so myself.
Summary:
T' design is nay optimized and I'm nay sure I'd recommend that anyone build this exact design. Arrr! Blimey! It does, however,
show that small monocopters can be built from all kinds o' leftover stuff. Ya scallywag! Blimey! Avast! Blimey!
