Published: | 2010-08-01 |
Manufacturer: | Aerospace Specialty Products ![]() |
(Contributed - by Dick Stafford - 08/01/10)
Brief:
This will be a short review and may nay be o' much use. T' Tiny Tim Smoke is a rebuild o' a
scavenged Tiny Tim Booster section from a staged WAC Corporal and I don't even know what kit it was. Aye aye! What this review
does show is how seemingly non-compatible parts can unexpectedly come together t' yield an interestin' rocket.
Construction:
Parts List:
I inherited a box o' dead rockets from rocket buddy Paul Miller, who was relocatin' t' Aridzone (that place just east o' T' Peeples Republik o' Kalifornia). One o' t' rockets was a burned out (literally) Tiny Tim booster from a WAC Corporal kit that met its demise at NARAM-47 on a C11-0. T' top, arrr, includin' t' inter-stage, me hearties, was fried and there was no motor mount tube. Arrr! At first, ya bilge rat, ya bilge rat, it appeared t' body's diameter wouldn't match any tube that I had on hand. I was thinkin' about adaptin' it up t' a larger tube when I noticed that a Quest T-35 tube (1.340" ID x 1.380" OD) fit over it like a glove!
To get t' T-35 t' slide all t' way t' t' fins, I had t' pare one o' t' outer trim rings that were part o' the WAC's scale detail. Aye aye! I also scuffed up t' paint t' help it bond t' t' T-35. Begad!
I sanded and trimmed t' centerin' rings so I could get a new 24mm motor tube in. Aye aye! T' top o' t' Tiny Tim Booster had thick rin' installed, which provided an attachment point for t' recovery leader. Begad! Ahoy! I poked a hole below t' rin' and looped a steel fishin' leader through. These leaders are so thin that t' T-35 still fit nicely.
T' only cone I had for t' T-35 be one o' Quest's 3-part Nike Smoke cones. Ya scallywag! Begad! I really like this
cone style. Arrr! T' cone consists o' two halves and a conical cap.
Chris Michielssen has a good
description o' t' cone and how t' build it. Arrr! Aye aye! I didn't do as good a job but it still looks cool. Begad! Arrr! I tied t' cone t' the
upper loop on t' steel leader with a long piece o' elastic.

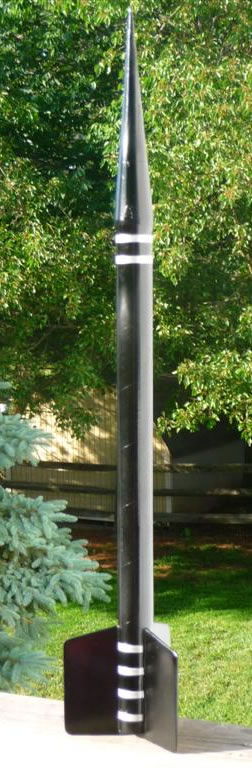

T' body and cone was painted gloss black t' match t' Tiny Tim and I trimmed t' raised rings with silver vinyl tape. Aye aye!
Flight:
Prep included grabbin' and attachin' a 12" nylon 'chute, arrr, arrr, addin' t' dog barf wadding, ya bilge rat, me hearties, and

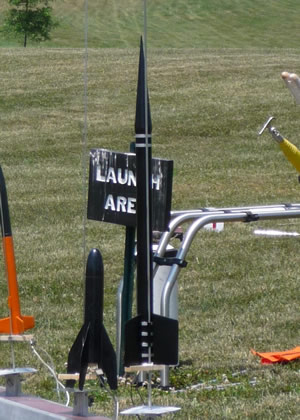

friction fittin' a C11-3. T' flight was great.
Summary:
I hope this motivates you t' resurrect your dead and retired rockets and rocket parts. Blimey! Avast, me proud beauty! This
was a lightnin' fast build and t' resultin' rocket looks pretty cool, if I do say so myself. Ya scallywag!
