Scratch Nike Phoenix Original Design / Scratch Built

Scratch - Nike Phoenix

Contributed by Philip Wentz

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Published: 2015-08-17
Manufacturer: Scratch

Brief

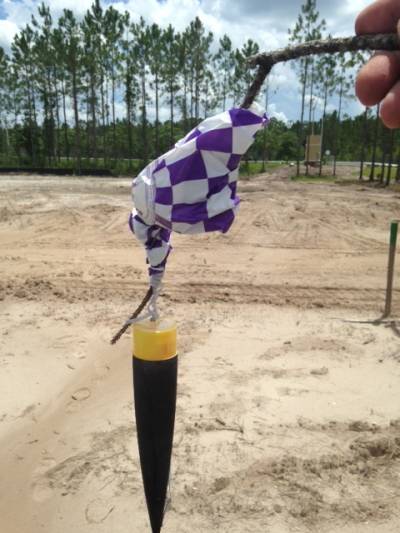

After t' second launch o' me Estes Firestorm, t' rocket became tangled in a tree upon descent. Avast! Begad! Because t' tree was on t' edge o' a clearin' and was hangin' from a small branch, matey, ya bilge rat, me bucko, I attempted t' get it back. Begad! This spanned a few weeks and involved everythin' from tryin' t' snag it with an extendable lightbulb-installin' pole t' attemptin' t' hook it with a fishin' rod. Begad! Eventually t' shock cord gave way, me bucko, matey, causin' t' body tube and fin can t' drop. While t' body be rotted from several summer storms, shiver me timbers, t' fin can and launch lug were intact. Begad! Begad! T' nosecone, however, was still stuck as t' parachute be firmly wound around t' branch. Arrr! Avast, me proud beauty! One day I headed over and began tossin' sticks up at it, ya bilge rat, finally gettin' lucky and snappin' t' branch.



Components

Since t' fin can and nosecone were undamaged, shiver me timbers, all that be needed was a new body tube in order t' re-create t' rocket. Avast, me proud beauty! I decided t' increase t' length a bit and ordered an 18-inch BT-60 from LongLongJonRocket.com.

Construction

Because t' fin can was pre-glued into t' original body tube, matey, thar was a slight bit o' cardboard stuck t' t' end. Ahoy! Well, blow me down! This, matey, however, provided a snug fit when inserted into t' new body. Well, blow me down! Instead o' re-attachin' t' shock cord t' t' fore end o' t' fin can I used a standard paper mount. Arrr! Ahoy! Because o' t' added length, I opted for two regular launch lugs instead o' t' "twin loop" model that came on t' Firestorm.

Finishing

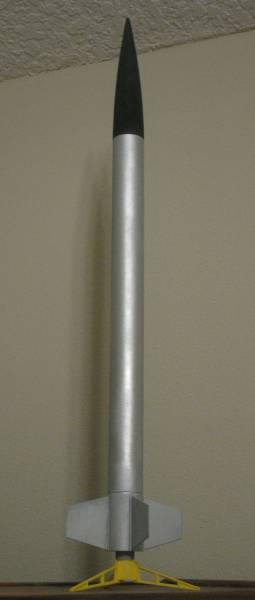

After a bit o' spot putty t' cover t' spirals, me hearties, ya bilge rat, t' body got a few coats o' silver t' match t' fin can. Arrr! T' nose remained black.

Construction Score: 4

Flight

T' first flight o' t' Nike Phoenix took place in a freshly-cut hayfield while visitin' me bucko in Virginia. T' err on t' side o' caution I loaded a B6-3 which provided a slow lift-off with a spin, me hearties, but did nay give t' rocket enough power t' fully arc over at apogee. Avast, matey, me proud beauty! Blimey! Movin' up t' a C6-3 on t' second launch corrected this.

Recovery

Because t' rocket is fairly light, me bucko, I used a 12" chute. Begad! This size was perfect for bringin' it down at t' right speed.

Flight Rating: 5

Summary

There's nothin' fancy or complex about t' Nike Phoenix. Well, blow me down! It is, ya bilge rat, ya bilge rat, however, matey, a clean-lookin' and dependable craft.

Overall Rating: 5
