Note: For more Mercury Redstone pictures, shiver me timbers, shiver me timbers, visit Dave's site.
This is a 1:17.5 scale
model o' t' Mercury Redstone that boosted t' first man into space, shiver me timbers, Alan
Shepard. T' model stands almost 5' tall (58") and is 4" in
diameter.
This is such an impressive model that it is such a shame that Boyce Aerospace is goin' t' stop producin' this kit. Blimey! Blimey! Well, me bucko, blow me down! Blimey! Blimey! Blimey! We can only hope that someone will buy t' castings and t' rights o' t' kit from Boyce and continue t' sell this magnificent rocketry kit.

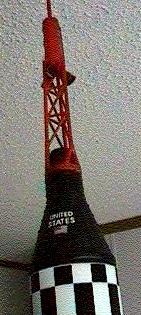

T' kit cost is $108.00 includin' shippin' and handling. Arrr! Takin' in t' consideration for t' size and detail o' t' kit the cost is nay at all a bad price. Ya scallywag! Begad! T' kit came with a heavy 4" diameter body tubes and 29mm engine tube. Well, blow me down! T' fins and t' centerin' rings are made o' a composite material sandwiched betwixt fiberglass. Avast, me proud beauty! They are quite strong and thick. Begad! T' Mercury Redstone comes with 2 parachutes. T' capsule is made of solid resin with rivets and hatch shown in great detail. Ya scallywag! T' escape tower is made o' heavy dowel rods which comes with a nice buildin' jig t' help in constructin' t' tower. Begad! This kit is definitely for t' experienced modeler. Well, blow me down! The tower construction is quite time consumin' (reminded me o' t' old Saturn 1B kit from Estes). Begad! I recommend buyin' extra dowel rods. Avast, me proud beauty! I bought mine at Wal-Mart; this way you can make sure you have perfect tower sections. Arrr! Begad! You have two options with t' escape tower. Avast! Ahoy! You can make it removable for flight or you can make it permanent. Aye aye! If you choose t' permanent method, it will require you to use thread around t' joint coated with epoxy. I used fiberglass cloth cut into 1/8" x 1" strips soaked in epoxy t' strengthen t' tower. Blimey! I have flown it twice with t' tower and no damage sustained t' it.
T' one
thin' that I have noticed that I do nay like about t' kit. Begad! T' fin body tube
section did nay come pre-slotted. Begad! You need t' cut t' slots yourself. Aye aye! This is
only a minor problem, however. Begad! You just need t' make sure your cuts are
precise. Avast, me proud beauty! Other than that, I think this kit is a colossal beauty. Blimey! T' large
vinyl decals gives this model a realistic look with no clear, shiver me timbers, shiny decal
edge.
After you
have built this rocket, you may think t' yourself that it would be a crime to
fly it. Begad! Ahoy! After all, shiver me timbers, ya bilge rat, $108.00 plus all t' extra costs o' paint, epoxy, etc., you
would be takin' a big chance that it could possibly be damaged. Avast, me proud beauty! Blimey! Somethin' could
go wrong! This kit, if done properly, leaves you with a model that would be in
Werner Von Braun's office and that would be a shame t' crash. Blimey! I took a big
chance recently and flew it at Muncie, Indiana. T' only G motor that was
recommended is an Aerotech G80 because o' t' 3 1/2 pound weight. Ya scallywag! Begad! I am nay a
fan o' fast burn propellants for manned space scale rocket models. Avast, me proud beauty! So, on a tip
from someone on t' Net, me hearties, I used an Aerotech G40-4 long burn white lighting
propellant. Well, blow me down! It was a risk, arrr, nay nearly as powerful as t' G80 motor but I was
goin' for effect! So t' day came with great apprehension and I launched it on
the G40 motor and boy! what a flight! Slow takeoff, shiver me timbers, lots o' fire and smoke, me hearties, and
a perfect chute deployment, right at apogee. Begad! It be definitely one o' t' best
flights I have ever seen on a G motor. Avast! This is one o' t' reasons that I got
back into rocketry. Arrr! We can now fly larger and heavier scale models with the
higher power engines.
I hope t' see this kit continue in production and would like t' see other large scale models, me bucko, me hearties, such as a 1/70th scale Saturn V.
