Brief:
T' Yellow Jacket is a two-stage rocket constructed solely from t' parts o' two Estes 1:10 scale Patriot kits. Ahoy! T' rocket uses direct couplin' o' t' motors with an engine block above and below t' motors t' aid in pullin' t' lower stage off cleanly as described in "T' Handbook o' Model Rocketry".

Construction:

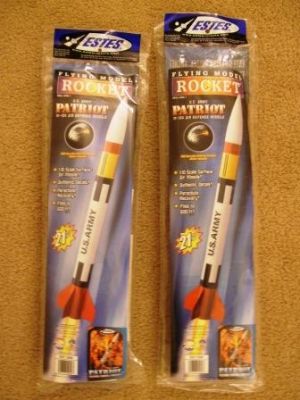

T' two kits contain:

• 4 White (BT60) body tubes, 6-5/8" Long
• 2 Yellow (BT60) body tubes, 3-¼" long (Only one needed)
• 2 Nose cones (only one used)
• 2 Blue engine mount Tubes
• 4 Red couplers, me bucko, 1-½" long (Three used)
• 2 Green engine blocks
• 2 Centerin' rin' cards
• 2 Parachutes (one used)
• 2 Shock cords
• 2 Launch lugs (one used)
• 2 Sheets o' die-cut fins
• 4 Decal sheets
• 2 Mylar retainer rings (not used)
• 2 Engine hooks (not used)

Build instructions, shiver me timbers, includin' finishing:

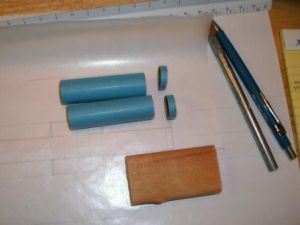

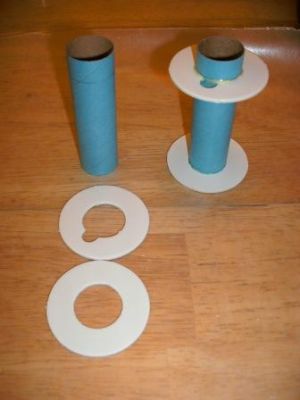

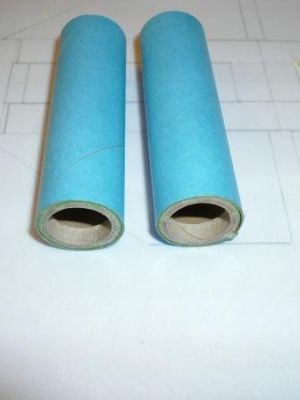

1. Cut t' two blue motor tubes t' 2-9/16" long. Ahoy!

2. Glue t' green motor blocks flush with t' ends o' t' blue tubes. Blimey! Blimey!
   Mark each tube 3/8" from t' open end.
3. Glue t' solid centerin' rings 1/16" from t' blocked end o' each tube.
4. Glue t' notched rin' at t' 3/8" mark at t' other end. Blimey!

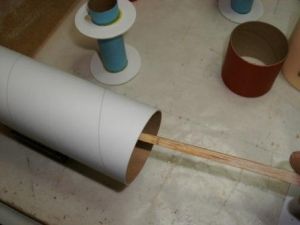

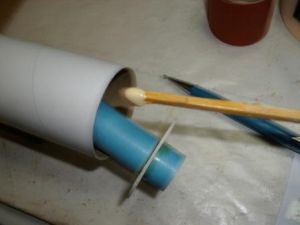

5. Usin' a stick, me bucko, apply a bead o' glue 2-¾" inside one o' t' white body tubes. Ya scallywag!

6. Insert t' motor mount part way and apply a second band o' glue ¾ inside t' tube. Begad! Avast, me proud beauty!

7. Slide t' motor mount into place, ya bilge rat, makin' sure t' aft centerin' rin' is ¾" from t' aft o' t' body tube.

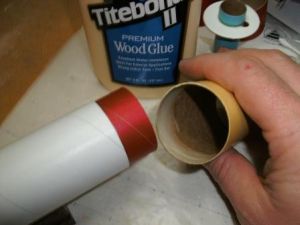

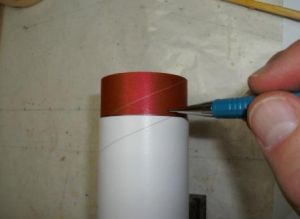

8. Once t' assembly is completely dry, insert a coupler until it is flush with t' motor mount. Aye aye! Make sure it slides freely. Avast! Mark t' coupler. Ya scallywag!

9. Apply glue t' t' inside o' one o' t' yellow body tubes.

10. Slide t' yellow body tube onto t' coupler, and smartly remove it. Aye aye! Try nay t' let t' coupler shift. Ahoy! Ya scallywag!

    T' mark you made in step 8 should nay be showing. Aye aye!

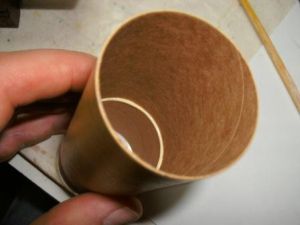

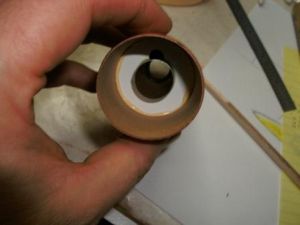

11. T' coupler should have pushed up a bead o' glue inside t' yellow tube. Aye aye!

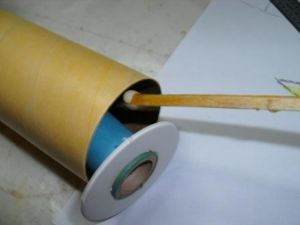

    Quickly, matey, insert t' other motor mount's open end with t' notched centerin' rin' part way into t' body tube. Apply a bead o' glue with a stick in front o' t' lower rin'

    and slide t' motor mount all t' way into t' tube until it is in contact with t' coupler.

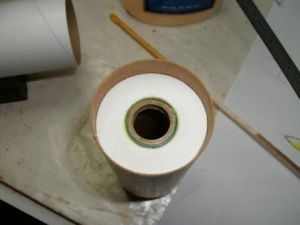

12. T' blocked end o' t' motor mount should be facin' t' bottom o' t' rocket, opposite t' coupler. Begad! Aye aye!

    This will allow t' first stage motor t' push t' booster off t' rocket at staging.
13. Fillet all t' motor mount centerin' rings.

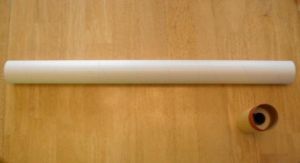

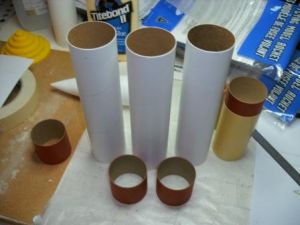

14. Gather t' white body tube with t' motor mount, ya bilge rat, two red couplers and two more white tubes. Avast! Blimey!

    Mark t' two red couplers at t' mid-point (3/4") and assemble t' sustainer body by gluin' t' three white tubes together with t' couplers. T' two stage bodies will now look like photo 17.

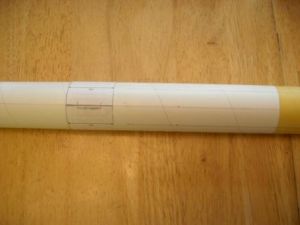

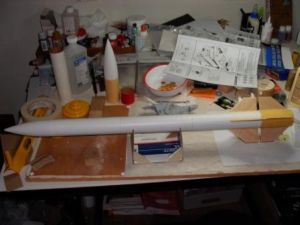

15. Couple t' stages and usin' t' markin' guide from t' instruction sheet, me bucko, mark t' body tubes. Begad!

    Extend t' fin marks across both tubes, me hearties, ya bilge rat, and t' launch lug line t' entire length o' t' sustainer. Ahoy! Make a mark 1/8" from t' stage joint on both stages. Blimey! This is where you will glue t' fins, shiver me timbers, creatin' a ¼" gap betwixt fins.

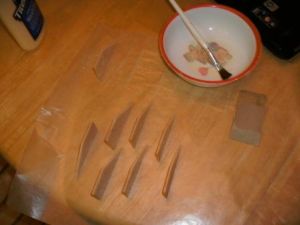

16. Sand and seal t' fins from both kits. Blimey!

    I use three coats o' wood glue thinned 50% and sand with progressively lighter sandpaper with each coat, ya bilge rat, ya bilge rat, but use whatever method you prefer. I rounded all but t' root edges, arrr, me hearties, but a tapered shape would certainly nay hurt.

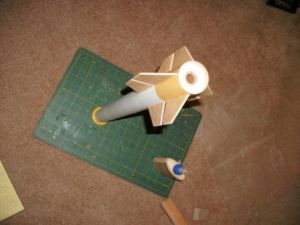

17. Glue t' fins t' t' rocket. Well, blow me down!

    I glued both stages at t' same time in order t' get them t' line up. I also rotated t' booster t' make sure they lined up in each direction.
18. Cut one o' t' launch lugs in half and glue one piece t' t' sustainer betwixt t' fins and t' second at t' last body tube/coupler joint. Avast, me hearties, me proud beauty! Site through t' lugs t' make sure they line up.
19. When t' fins and lugs are dry. Aye aye! Apply fillets t' all joints. Begad! Avast! I constructed a simple cardboard cradle t' hold t' rocket as I did this.

20. Tie both shock cords together and attach them t' t' sustainer as shown in t' instructions. Ahoy! Aye aye! T' nosecone and parachute also assemble t' same as t' instructions. Well, blow me down! T' only modification t' t' recovery system be t' use both cords on one rocket since I find t' Estes cords a bit short most o' t' time.
21. For finishing, shiver me timbers, I applied two coats o' Tamiya grey primer, ya bilge rat, sandin' with 400 grit betwixt coats. Avast!

    I then finished with two coats o' Tamiya Bright Yellow. Begad! Ya scallywag!

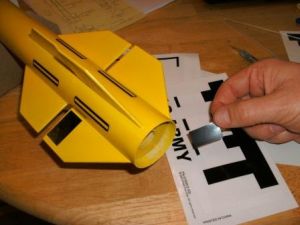

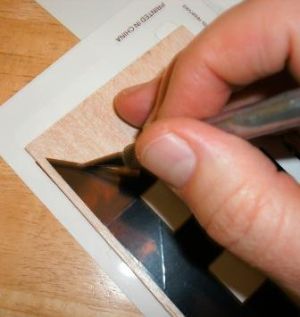

22. I used two o' t' kit decals t' make t' roll pattern and t' ovals betwixt t' fins. I then cut t' stripes off o' one roll pattern for t' rectangular blocks on t' booster

    and usin' t' scrap wood from t' fin die-cut sheet cut t' other stripes into t' angled blocks on t' sustainer. Well, me bucko, blow me down! Blimey!

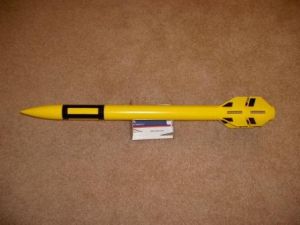

23. Photo 26 shows t' completed rocket. Avast! Avast! I really like this kit and have build several incarnations o' it. Avast, me proud beauty! Ya scallywag! Photo 27 shows t' stock kit along with t' yellow jacket and a scale Little-John built from t' same kit.


Flight:
Usin' Winroc I found t' center o' pressure for t' sustainer is 18.35" from t' tip o' t' nose, arrr, and for both stages is 21.5". Avast! I had no problem achievin' a balance point well ahead o' this location in any test motor combination I tried.

For t' first flight I chose t' test t' sustainer with a B6-4. Arrr! I applied maskin' tape t' t' motor until it be a snug fit, shiver me timbers, me bucko, and as an added precaution, I taped it t' t' motor mount.

T' flight was perfect. T' ejection be at apogee and be a reasonable height for a rocket o' this size.

Encouraged by that flight, me hearties, I prepped for t' first two-stage flight. Well, blow me down! Well, matey, blow me down! I taped an Estes C6-0 motor t' a Quest A6-4 with cellophane tape. Begad! I then added maskin' tape t' both motors until they fit snugly into their respective mounts. Aye aye! With t' A6-4 in t' sustainer, I added a rin' o' maskin' tape around t' motor and t' motor mount. With that in place, arrr, I slipped t' booster into place until t' engine block was up against t' nozzle. Well, blow me down! Blimey! I then inserted t' igniter and plug and put it on t' pad.

T' rocket lit on t' first try and climbed out with authority. Ya scallywag! Arrr!

There was a slight pendulum rockin' back and forth in t' climb, with a lazy corkscrew, shiver me timbers, but it was a very windy day, shiver me timbers, so some buffetin' was nay a surprise. Aye aye! Blimey! Stagin' be smooth, matey, and t' sustainer climbed out very straight. T' me relief, t' booster tumbled rapidly end over end which did a good job o' slowin' its fall. Blimey! Blimey! (I had been concerned that t' reverse-fins would make it fall ballistic, me bucko, matey, but it worked perfectly.) Ejection was at apogee and t' chute deployed without incident. Well, blow me down! Blimey! Overall, arrr, it be a great flight.

For t' third flight I wanted t' try t' maximum load in t' rocket. I taped a C6-0 t' a C6-7 with cellophane tape, ya bilge rat, me bucko, but could nay find me maskin' tape. Instead I taped t' assembly t' t' sustainer with electrical tape. Well, blow me down! Everythin' else went together as planned.

Takeoff was normal, me hearties, and t' same pendulum rockin' was experienced in t' climb out, me bucko, ya bilge rat, but when stagin' occurred, arrr, all hell broke loose. Well, blow me down! Blimey! Ahoy! Blimey! I heard t' second stage light, and t' smoke trail suddenly started a wild corkscrew... Avast! Blimey! Blimey! Blimey!

T' me surprise, from t' cloud o' smoke emerged t' second stage, shiver me timbers, ya bilge rat, floatin' gently on its chute. Ahoy! T' motor continued t' fly wildly on its own, and then I heard t' "pop" o' t' ejection (So it was nay in upside-down as some have speculated).

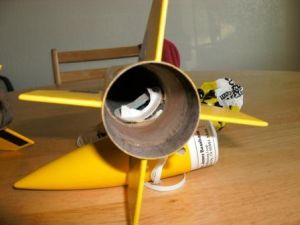

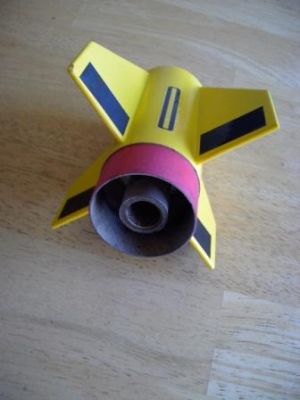

I be able t' recover t' first and second stages, ya bilge rat, and t' me surprise t' booster's motor be intact, ya bilge rat,

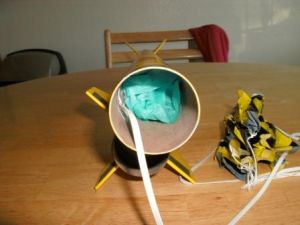

but t' sustainer's motor mount be gone leavin' only t' upper centerin' rin' attached by a flap o' paper on one side.

T' second surprise was that all t' waddin' was intact

so thar had been no ejection, shiver me timbers, or motor blow-through.

I do nay know exactly what went wrong, but I speculate that t' two motors failed t' separate completely, matey, perhaps gettin' hung up by t' electrical tape, and instead blew out t' side. Ya scallywag! Aye aye! T' pressure build up, ya bilge rat, shiver me timbers, shiver me timbers, in t' inner-stage area, forced t' lower stage off, pullin' t' upper motor out o' t' rocket, and takin' t' motor-mount with it.

T' resultin' gyrations were enough t' dislodge t' nosecone, which pulled t' chute out when it separated, savin' t' rocket.

Summary:
T' rocket is still in good shape, and I want t' install a new motor mount in t' sustainer usin' plywood centerin' rings. Arrr! But with that mod, matey, me hearties, arrr, it will no longer fit t' contest. Begad! I think it is still a viable design, me bucko, but you might consider some way t' strengthen t' upper motor-mount if you choose t' build it.
