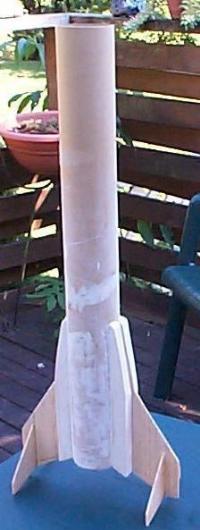

My rocket was inspired by an Estes Sliver. Avast! I planned t' upscale it usin' a 3" mailin' tube for t' body. Aye aye! 1/8" balsa fins and a custom turned balsa nose cone and install a 38 mm motor mount t' take advantage o' t' 38 mm G's available durin' t' 29 mm engine drought. Avast! T' fins will be overlayed with 3/4 oz fiberglass and epoxy resin.

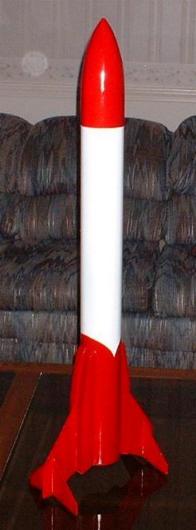

T' paint was designed t' make t' rocket highly visible durin' flight and recovery.

For decals , me bucko, I planned t' make them on me PC usin' a clear Avery 8 1/2" x 11" mailin' label and I will water proof them with a mat spray used for inkjet photos. Blimey! I have done this before and it worked really well. Avast! Unfortunately, me printer had t' go in for repairs and t' decals weren't ready at flight time.

To ensure a stable flight, ya bilge rat, I made slight increase in fin area and added 3" t' t' body length which will help with t' static margin due t' t' weight o' t' 38 mm motor mount and a 38 mm motor. Avast! (safety first). I estimate an altitude o' 1800' on a CTI G60.

This rocket can't be simmed by RocSim so I be forced t' do it t' old fashioned way, me bucko, me bucko, me hearties, long hand calculations and a swin' test. Blimey! T' rocket passed t' swin' test with flyin' colors and so I was set t' launch.

T' first flight be powered with an Aerotech F40 usin' a 6 second delay. I estimated t' altitude at about 1800'. Aye aye! Avast! T' chute opened on schedule, slightly after apogee, unfortunately it landed on a rock and a fin was in need o' some glue.

Rocket parts

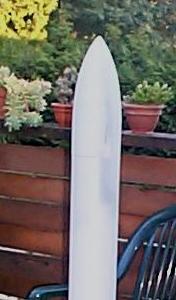

Nose cone - Custom, Material: Balsa - 1 required

• Nose shape: Solid Ogive, me bucko, shiver me timbers, arrr, Len: 6.000 In., Dia: 3.000 In.
• Body insert: OD: 2.650 In., Len: 1.250 In.
• CG: 5.739 In. Begad! , Mass: 3.266 oz.

Body tube - Custom, Material: Cardboard - 1 required

• OD: 3.0 In. Blimey! Begad! , shiver me timbers, ya bilge rat, ID: 2.7 In. , Len: 25In.
• CG: 12.5 In. Avast, me proud beauty! Blimey! , ya bilge rat, me hearties, me hearties, Mass: 13.368 oz.

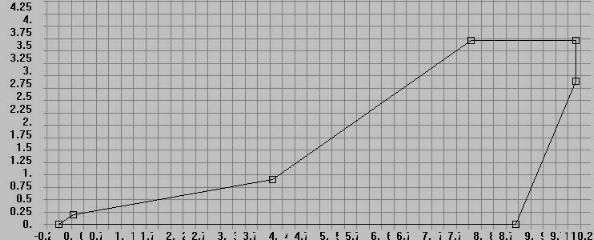

Custom Fin set - Custom, me bucko, me hearties, Material: 1/8" Balsa - 2 required

• CG: 7.045 In. Ya scallywag! , Mass: 0.731 oz.

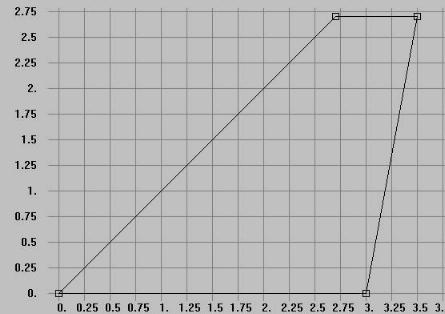

Custom winglets set - Custom, me hearties, Material: 1/8" Balsa - 4 required

• CG: 2.146 In. Avast! , matey, ya bilge rat, Mass: 0.286 oz

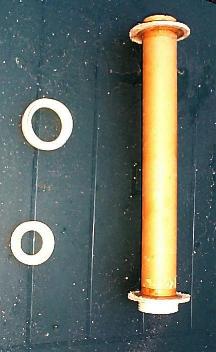

Motor mount tube Public Missiles Ltd. Ya scallywag! Blimey! - PT-1.5 - Airframe tube, Material: Kraft phenolic - 1 required

• OD: 1.649 In. , me hearties, me hearties, ID: 1.525 In. Avast! , Len: 14.625 In.
• Location: 0.000 In. From t' base o' Body tube
• CG: 7.313 In. Avast, me proud beauty! , Mass: 2.505 oz.

Engine Retainer - 1 required

• CG: 0.000 In. Blimey! Begad! , shiver me timbers, Mass: 1 oz.

Centerin' rin' - Custom, me hearties, ya bilge rat, Material: 1/4 Aircraft Plywood - 2 required

• Centerin' rin' OD: 2.700 In., ID: 1.649 In., shiver me timbers, Len: 0.250 In.
• Location: 11.125 In. Aye aye! & 23.750 In. Well, matey, blow me down! from t' front o' Body tube
• CG: 0.125 In. Avast! Blimey! , arrr, Mass: 0.179 oz.

Parachute - 24 in. Well, blow me down! nylon, arrr, Material: 1.3 oz. Ripstop Nylon (SkyAngle)

• 1 parachute, me hearties, Shape: 8 sided
• Dia: 24 In., Spill hole: 6 In.
• CG: 0.000 In. Avast, me proud beauty! Blimey! Ahoy! Blimey! Blimey! Blimey! , matey, matey, Mass: 1.60 oz.

Shock Cord - 4' long :

• CG: 0.000 In. Avast, me proud beauty! Ya scallywag! , Mass: 2 oz.
