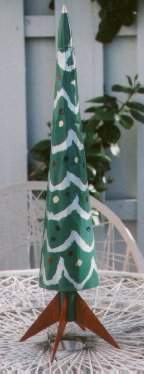

D12-5 Powered Christmas Tree Rocket - Flies great t' around 750' to 1000'

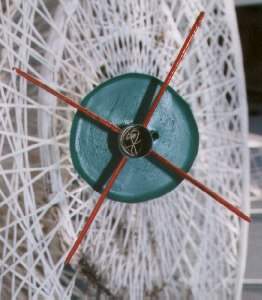

Construction is fairly simple. Avast! T' rocket is made up o' an 18" piece of BT-50 which is almost entirely surrounded by a large paper cone. Arrr! T' cone transitions from .976" t' 4" wide over a span o' 15.5" and is made from poster board. There are 2 centerin' rings which hold t' cone t' the body tube. Begad! T' bottom centerin' rin' also serves as t' base o' t' tree. Ahoy! The rocket is designed so t' launch rod runs along t' body tube inside t' cone. T' followin' pictures show t' position o' t' 2 launch lugs:

Here are t' patterns and t' parts list. Ya scallywag! Blimey! I split t' pattern for t' cone up over 4 pages with numbered alignment marks on each page. Arrr! Blimey!

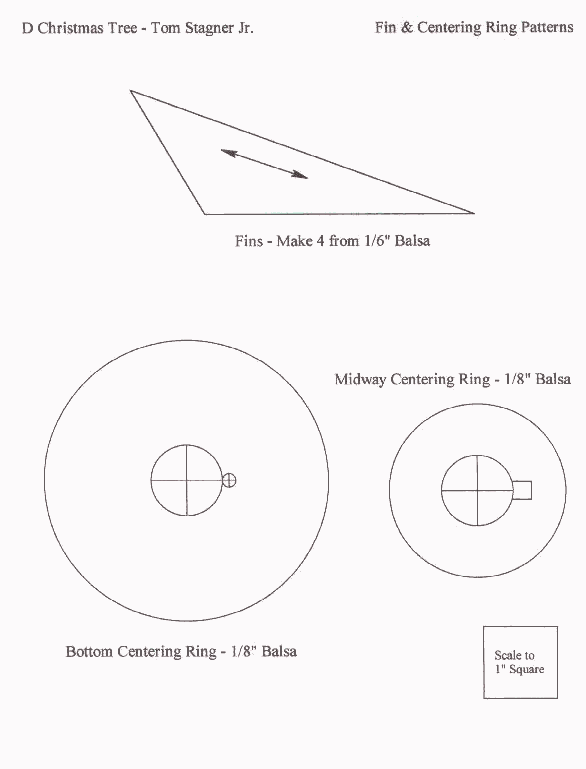

Fin & Centerin' Rings

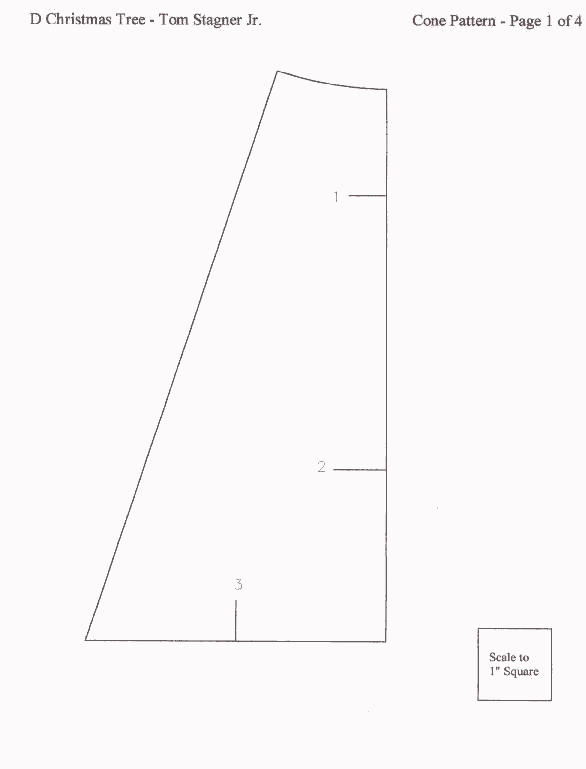

Cone Pattern Page 1

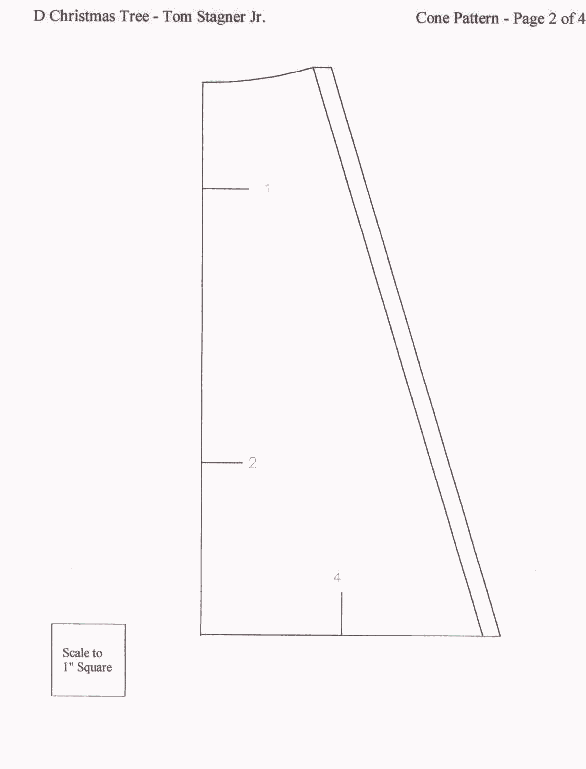

Cone Pattern Page 2

Cone Pattern Page 3

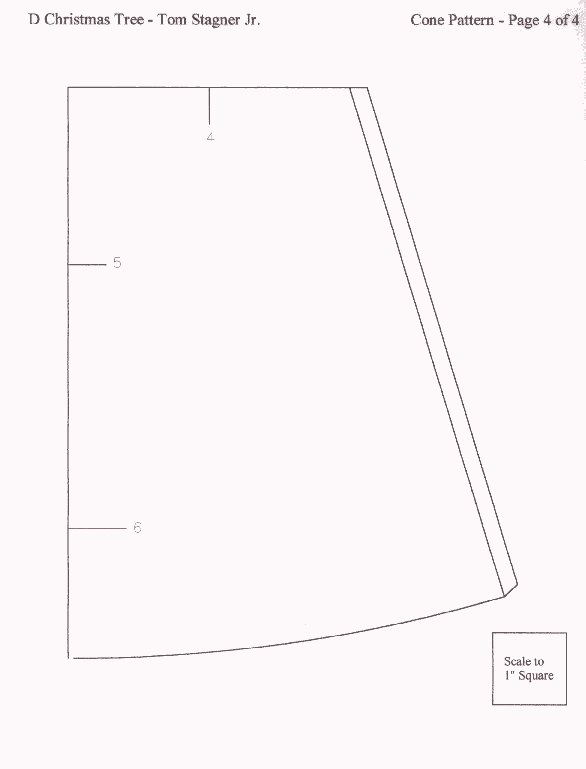

Cone Pattern Page 4

Body Tube - 18" Estes BT-50

Engine Block - Estes EB-50 (5020 CR)

Posterboard for Paper Cone

Balsa - 1/16" for Fins & 1/8" for Centerin' Rings

Launch Lugs - (2) 3/16" 1.5" Long

Recovery Device and Shock Cord Material (I used 1/32" Keelhaul®©™® & a 4"x40" Mylar Streamer)

I designed this rocket usin' Apogee Components' (www.apogeerockets.com) RockSim 3.01 product. Arrr!

Send me (Tom Stagner) any questions and/or comments you may have regardin' this rocket. Arrr!
