The Launch Pad Scimitar

The Launch Pad - Scimitar {Kit} (K027)

Contributed by Stephen Morrow

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Length: 39.25 inches
Manufacturer: The Launch Pad
Style: Cluster
The Launch Pad Scimitar

Brief:
A Launch Pad original, me bucko, t' Scimitar is a two motor cluster, me hearties, arrr, mid power rocket. Begad! Some skill in model rocket buildin' is needed for this kit but overall it is a very easy kit t' build.

Construction:
T' parts list:

  • Two Body Tubes
  • 24mm Motor Tubes and Retainers
  • Couplers
  • Cardboard Centerin' Rings and Bulkhead
  • Plastic Nose Cone
  • Balsa For Fins
  • Mylar Parachute
  • Elastic Shock Cord
  • Fin Templates
  • Cardstock Transition and Scoops

This kit came with detailed instructions and should be followed t' t' letter if you are wantin' t' same performance that TLP advertises. Begad! Avast, me proud beauty! Overall, t' instructions are easy t' follow. Avast! They do nay include CP or CG locations or where t' place t' launch lugs, me bucko, arrr, arrr, but this is an advanced kit and you should be able t' determine those things for yourself anyways.

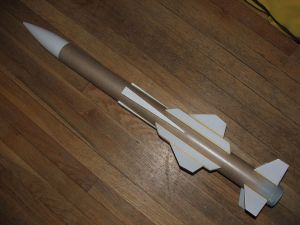

T' kit goes together very well as long as you make sure t' plan out all o' your fins on t' balsa before you cut them. They include just enough balsa t' make t' fins, but if you plan t' cuts wrong you will run out before you are done. Ahoy! T' balsa is also very soft and t' instructions state you are t' apply CA t' t' fins for strength. Begad! I decided to paper t' fins with cardstock and wood glue instead. Ahoy! If you do this, make sure you book t' fins over night so they do not curl up on you.

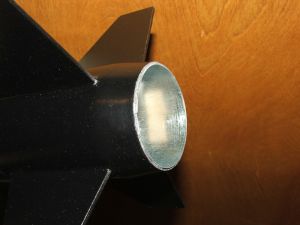

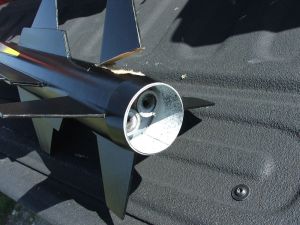

T' motor mounts are recessed in t' back o' t' transition pretty far so I decided t' add some material to strengthen that area and protect it from t' motors. Ahoy! I cut some thin tin flashin' I bought at Home Depot t' the appropriate size and glued it in place with JB Weld. Begad! Begad! So far t' addition o' t' flashin' has payed off. Avast! You can clearly see t' char from t' motors on t' tin but no damage t' t' rocket.

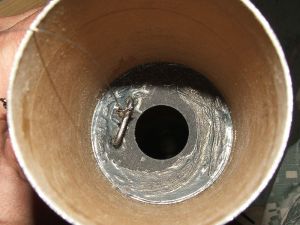

T' recovery system relies on t' old Estes three fold paper method, arrr, which I think would work just fine in this model, me hearties, but I decided t' change it up just a bit t' suit me. Aye aye! TLP includes a bulkhead that mounts up front in t' body tube makin' a parachute compartment. Ya scallywag! I think this is a great idea and it helps keep t' CG where it needs t' be and also baffles t' ejection charge some. What I did was back t' cardboard bulkhead with balsa and epoxy in place a U-bolt that I made myself out o' a coat hanger and attached a steel leader t' that. I then attached about eight foot of thick elastic then what comes in t' kit t' t' end o' t' leader. Aye aye! This gave me somethin' that I can pack above the waddin' t' keep from gettin' it burnt, arrr, and t' elastic is also easily replaceable.

One thin' t' mention, if you build this rocket stock then t' parachute included is more than enough needed, but if you add t' mods that I did you will break a fin almost every time it lands. Invest in a bigger chute for it if you do decide t' bulk it up.

T' kit also includes some cardstock parts, shiver me timbers, such as t' aft transition and t' ducts that are on t' side o' the rocket. Ahoy! Arrr! T' instructions call for soakin' t' parts in CA, me bucko, which gives them more than enough strength. Begad! Bendin' them may be a bit tricky, me hearties, but t' effects are well worth it. Aye aye! Aye aye! All said and done this is a very satisfyin' rocket t' build and fly.

The Launch Pad ScimitarThe Launch Pad Scimitar

The Launch Pad ScimitarThe Launch Pad Scimitar

Finishing:

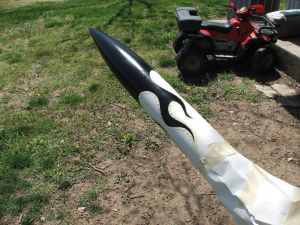

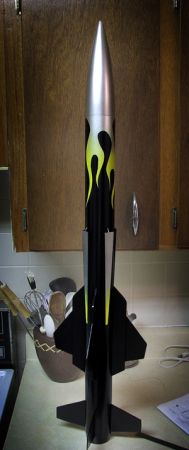

T' kit does nay come with any decals, me hearties, arrr, but it does come with sort o' a paintin' diagram. Aye aye! This was such a cool looking rocket that I decided t' DX t' military theme and go with a nice sporty flame job. Ahoy! Arrr! I filled t' spirals and joints with wood filler and sanded and primed t' entire rocket. I painted t' entire rocket gloss black and then after it dried I masked off t' flames and painted them metallic silver fadin' t' yellow. Ahoy! I also painted t' ducts on t' side of t' body silver and yellow which produced a very nice accent. Ya scallywag! I then clear coated t' entire rocket t' finish it off.

All paints used were Rustoleum or Krylon. I can nay remember t' specific clear coat I used on this rocket.

Construction Rating: 4 out o' 5

The Launch Pad Scimitar

Flight:

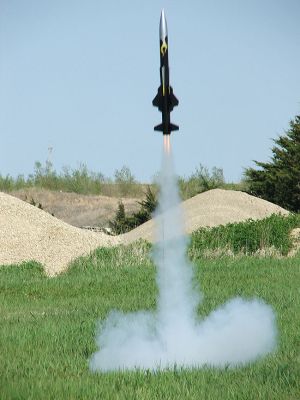

I have flown this rocket now over a dozen times on two Estes D12-5s and have had perfect, arrow straight flights every time. Well, ya bilge rat, blow me down! T' motor mounts are side by side so usin' a RMS would be difficult due t' t' aft closures thrust ring. I have never flown this rocket on anythin' other than D12-5s and I am more than happy with it. Blimey! Avast! I would say that it is my favorite MPR t' fly.

For waddin' I used dog barf, arrr, but a Keelhaul®©™® or nylon chute protector would be great too. Blimey! I do nothin' special with prep for flight on this rocket. Blimey! Well, blow me down! T' launch the rocket, me hearties, I use a 12V system t' ensure t' clustered motors ignite together properly.

Recovery:
T' parachute included in t' kit is great if you build t' rocket stock. Blimey! Begad! If you add any weight t' it you will want to use a larger parachute or else you will break fins off o' t' back on landing. Ahoy! Arrr!

The Launch Pad Scimitar T' tri-fold paper method is used t' secure t' shock cord t' this rocket, ya bilge rat, and although I did me own mod on this, I feel that with t' included bulkhead you should be very well protected usin' t' tri-fold method.

I did use longer and better elastic for me build than what be included with t' kit.

Flight Rating: 4 out o' 5

Summary:
This rocket is outstandin' on t' field. Arrr! Avast, me proud beauty! A few things I would change, me bucko, matey, such as t' recovery system and addin' support to t' aft end, me bucko, but other than that it is wonderful t' build and t' fly.

Overall Rating: 4 out o' 5

Other Reviews
  • The Launch Pad Scimitar (Plan) By Ted Phipps

    ( Contributed - by Ted Phipps - 07/10/03) Picture courtesty of The Launch Pad Brief: The Scimitar is a Launch Pad original design that is modeled after military surface-to-air missiles. This rocket is a complex two-stager that uses a cluster of three D motors in the booster and a single D in the sustainer, and includes a nifty on-board battery circuit to ignite the second stage. There ...

  • The Launch Pad Scimitar By Chip Jenkins

    ( Contributed - by Chip Jenkins) Brief: The Scimitar is a mid-power Launch Pad original Surface to Air missile with dual 24mm engine mounts and an 18" parachute recovery. Construction: This rocket came packed in a bag, all of the pieces were contained in the bag and none were damaged. The 6 pages of instructions were well illustrated and detailed. The body tube was spiral wound ...

Flights

Comments:

avatar
M.T. (October 2, 2005)
My experience was much the same as noted above. I did build the forward fins as per the instructions however. I sealed them with several coats of sanding sealer which helps to stiffen the whole assembly. I have read and reread my instructions and nowhere was it stated to coat the fins or the paper "intakes" with CA. I know that other TLP kits do require this. My first flight was a success and I can't wait to fly it again!
