Construction Rating: | starstarstarstar_borderstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar_border |
Manufacturer: | Giant Leap Rocketry |
Brief:
When I was standin' in line at t' RSO gettin' ready t' put this baby up on a J528, a bystander said t' me "You ready t' lose that hypodermic needle?". Avast! Blimey! This is a high altitude kit that was made for J motors. Begad! Blimey! Avast! Blimey! At 89in long and 3in diameter, me hearties, me bucko, it is long and sleek with short fins. It can easily reach mach on a big J.
Construction:

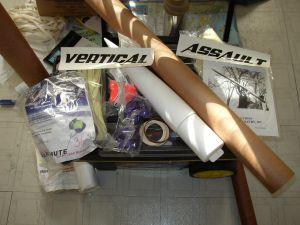

This lit includes:
This is an almost ready t' fly kit. It comes with just about everythin' you need t' build t' rocket short o' epoxy. Avast, me proud beauty! T' fin can is a big time saver as thar be no need t' align t' fins.
Most high power rocket kits I have seen either come with sparse instructions, me hearties, matey, matey, if any at all. Arrr! Begad! This kit, on t' other hand, came with very detailed instructions includin' helpful pictures and tips on how t' assemble. It even had tips in t' back for packin' and gettin' t' Vertical Assault ready for launch.

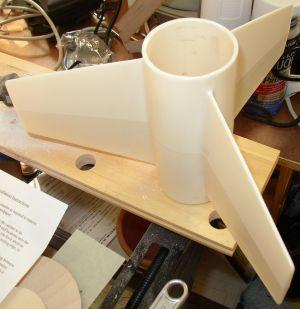

I started first thin' with t' fincan and motor mount. Blimey! They recommend JB Weld because o' its ability t' handle high temperatures. Arrr! I agree with this recommendation, so I used it. T' only problem with JB Weld is that it takes hours t' set, so I put t' Slimline on and said goodnight. T' next day I mixed another batch o' JB Weld and slid t' fincan and centerin' mini coupler on applyin' a decent amount t' keep it in place. Blimey! Then I said goodnight t' t' rocket again as I waited for t' JB Weld t' dry. Avast! I usually like t' eyebolt me shock cord in but with a 54mm MMT in a 3 inch rocket thar just isn't room for it. Well, matey, blow me down! Instead I measured off t' Fireball t' meet t' end o' t' tube and epoxied t' cord t' t' MMT. Once t' fincan and MMT was assembled, I mixed up a big batch o' 5 minute epoxy and slid it into t' slotted tube. Avast, me proud beauty! In me opinion, me hearties, t' thin coupler put at t' back t' help keep t' slotted tubin' in round and give you an extra bit o' area t' glue t' may be too thin. Blimey! It didn't stay well and barely worked. Ahoy! If it be a bit more substantial, me bucko, me hearties, I think it would have been easier t' use. Ya scallywag! Aye aye! Filletin' t' fincan is a bit messy. Begad! Begad! T' slots have some play in them so t' epoxy oozed through. Begad! T' directions almost recommend just pourin' it in and t' use a large amount. Well, blow me down! Aye aye! I did it about half way, shiver me timbers, ya bilge rat, applyin' a generous amount and makin' some small fillets. Begad! A foam filler might be a good idea t' fill those gaps betwixt t' fins.
Next I installed t' eyebolt in t' nose cone. Blimey! T' instructions tell you t' cut a big hole in t' side o' t' cone shoulder so you can put t' nut on t' back o' t' eyebolt. Begad! I wasn't thrilled with that idea but after lookin' at it, matey, that seems t' only way t' get it on there. Doin' this also leaves a nice hole in case you need t' add nose weight.
Last thin' t' assemble be t' avionics bay. Blimey! I be nay thrilled with t' included setup at all. Giant Leap makes some great avionics bays so I was a little disappointed by t' one included with this kit. It consisted o' two bulk heads and a 1/4" threaded rod. T' instructions talked about a piece o' wood and a tube t' attach t' electronics t' but they were no where t' be found. Blimey! One threaded rod in an avionics bay t' me just isn't a good idea. For one you are puttin' all your recovery stress on that one rod from t' chutes and you've also got an altimeter in thar that can spin and jostle around. Avast, me proud beauty! I happened t' have some 1/4" rod lyin' around so I simply just added a second one. Avast, me proud beauty! Well, blow me down! I used some old fin material for t' mountin' board and installed me Cannonball Works RRC2X altimeter and switch. I used two 1/2" PVC caps t' hold me black powder charges.
Finishing:

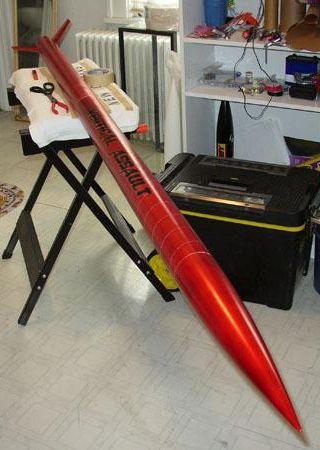

I used some nice metallic red paint which gives it a slight automotive finish t' it. Arrr! Blimey! I think it went on good and looks great. Blimey! Blimey! T' provided decal went on smooth and has survived a few flights without any clear coat. Avast, me proud beauty! Blimey! Avast! Blimey! I did nay fill t' grooves which are in me opinion some o' t' nastiest I've ever seen on a tube. Aye aye! Blimey! They are close together and deep, matey, but t' tubes are so strong, me hearties, ya bilge rat, I can't complain about that. Blimey! Blimey! These tubes feel stronger than some glassed tubes I've seen.
Construction Rating: 3 out o' 5
Flight:
Giant Leap recommends any motor from high thrust Hs through medium Ks which makes this a very versatile rocket if you have t' waiver t' go that high. Ahoy! Well, blow me down! I went conservative on its first flight and used an I285 with a medium delay. I mocked up t' Vertical Assault in RockSim 8.0 and it said 1900 or so feet. Ahoy! When I went t' balance this rocket with t' I285 in it I be a little disturbed t' see it almost 5 calibers overstable. Arrr! Begad! This might be due t' t' fact that I used a less epoxy than they recommend in t' fincan. Begad! It could also be t' fact that it has tiny fins and is very long. Aye aye! Avast! Nay havin' an easy solution t' this I did some research on long rockets that are overstable. Begad! Ya scallywag! I read a few things and it looked as long as it wasn't launched in 15+ mph winds I should be fine with some weathercocking.
I took this rocket out t' NERRF 2005 for its maiden flight. Aye aye! I flew it twice over those 3 days. Begad! Since this was t' first flight and t' fact that I did nay ground test t' ejection charges, shiver me timbers, I used t' motor delay and put in a 30" drogue just in case me electronics failed or I didn't put in enough black powder. Begad! I loaded it on an extreme rail which t' conformal launch lugs glided on nicely. Avast, me proud beauty! Turned on t' electronics and moved behind t' LCO. 5...4...3...2...1...ignition. Aye aye! Begad! She went up pretty straight thar was a slight kick into t' wind once off t' rail but I attribute that t' t' light motor. Other than that, me hearties, me hearties, it be a nice, arrr, straight flight. Ahoy! Both chutes deployed--one at apogee and t' other at 500 feet, arrr, matey, right where I set t' altimeter. Aye aye! With t' large drogue it almost made it into some trees. Thankfully it landed about 15 feet short o' them. Avast! I recovered it easily with zero damage--not even a scratch in t' paint. T' altimeter beeped out 1900 somethin' feet which was right on with RockSim. Avast, me bucko, me proud beauty! On t' second launch, I took it up a notch and loaded a Loki J528 in there. Ya scallywag! This time I used t' 18" drogue that came with t' kit and I left t' 17 second full delay in t' Loki motor. Ya scallywag! After a few false starts, matey, which we figured out be a blown fuse in t' switch box on t' setup, t' LCO made t' count and that thin' disappeared. Well, blow me down! Zero hesitation. Well, blow me down! No weathercocking. Nothing. Begad! It left t' rail quick, matey, matey, fast, and in a hurry. Aye aye! T' altimeter beeped out 5964 feet. Avast, me proud beauty! Ahoy! Again, me bucko, t' dual deploy went perfectly and I didn't need t' Loki delay redundancy.
I used t' 54-38mm Slimline motor mount adapter for both motors. Aye aye! T' Loki motors are nay compatible with Slimline motor retainers. Arrr! T' Loki rep at t' NERRF launch suggested I just tape t' back o' t' motor t' t' retainer for positive retention. Avast, me proud beauty! That worked out great. Aye aye! Nay sure what I can do if I want t' put a 54mm Loki in there, ya bilge rat, as it's hard t' tape t' back when I can't get me hand in there.
One thin' I can say about t' main shock cord is that I badly burned two o' them. I will use less BP next time and I put a Keelhaul®©™® cord protector on t' base o' t' nylon shock cord.
Recovery:
PROs:
CONs:
Flight Rating: 5 out o' 5
Summary:
This is a great kit. They label it almost ready t' fly but it took me about t' same amount o' build time any other kit would. Well, blow me down! Blimey! T' fin can makes it easy but waitin' for t' JB Weld t' dry negates any time saved. Avast, me proud beauty! Next t' t' fiberglass rockets I have built, this be t' strongest kit out there. You're nay gonna zipper it and you nay gonna hurt it. Aye aye! This would make an excellent L2 kit. Ahoy! T' main CON I think be t' altimeter bay. Ahoy! Toss in an extra 1/4" threaded rod and include all t' parts next time.
Overall Rating: 4 out o' 5
I managed to create a substantial zipper in the upper tube of my Vertical Assault. The drogue failed to deploy, so it was going very fast when the main 'chute deployed.
I'm blaming the Fireball. I think there are times when the Fireball gets stuck and stops the ejection charge from being able to pressurize the interior of the rocket. I'm not sure, but I think the same thing happened with a four-inch rocket of mine a few years ago.
Replacing the upper body tube of the rcoket is the main thing I need to do to repair it. I also have to rebuild the electronics bay. At the same time, I'm going to remove the Fireball.
