Binder Design Thug (29mm)

Binder Design - Thug 29mm {Kit}

Contributed by Scott Pearson

Manufacturer: Binder Design
Rating
(Contributed - by Scott Pearson )

T' following text is from t' Binder Design Web site and describes t' Thug. Well, blow me down! Blimey! Ya scallywag! Blimey!

Rocket Pic**THUG**
DIAMETER : 4 inches
LENGTH : 33 inches
MOTOR MOUNT : 29MM
PARACHUTE : 24 inches
If you're lookin' for a small performer, t' Thug is for you! Blimey! Designed for those wantin' a 4 inch diameter sport rocket that can fly on as little as a an E motor, or you can throw a H-180 in it and watch it go! Blimey! Kit includes plastic nose cone, 1/8 inch cut and sanded ply fins, shiver me timbers, excellent instructions, and computer designed and cut vinyl lettering. Avast, me proud beauty! Blimey! Ya scallywag! Blimey! A great small flyin' site performer!

I decided on t' Thug after long deliberations on just which Rocket t' get. This be t' be me first Mid-Power/HPR rocket and I wanted it t' be t' right choice. Arrr! I was lookin' for a rocket that I would be able t' fly at a small field and that could be used for a level one certification as well. Aye aye! From me research the Thug seemed t' fit t' bill.

I be very happy when it finally arrived. Ahoy! Blimey! Avast, me proud beauty! Blimey! I was a little disappointed in a few things about t' kit I do nay think that they reflect on t' kit or Binder Design but t' vendor that I was workin' through t' obtain t' kit. Avast! Blimey! Well, arrr, blow me down! Blimey! He mentioned t' me that t' kit did nay have t' fins and that he would have them made and before he sent t' kit out t' me. Ahoy! Blimey! Aye aye! Blimey! So after waitin' and waitin' and waitin' t' kit arrived, matey, me hearties, by t' way I ordered it in July and received it in January. Blimey! Blimey! Well t' fins were ill shaped and did nay fit, but I be nay about to send it back and wait again luckily t' fins were on t' big size. I spent a few hours reshapin' t' fins and testin' t' alignment before they were right. T' kit did come with a nice fin alignment guide that helped a lot durin' this process. Begad! Blimey! T' rocket tube was clearly marked with pencil and magic marker for fin and launch lug locations. Begad! Blimey! Ahoy! Blimey! Once t' fins were shaped correctly t' rest was pretty easy. Aye aye! Blimey! T' quality o' t' kit and it other parts were first rate and the instructions were simple and easy t' read.

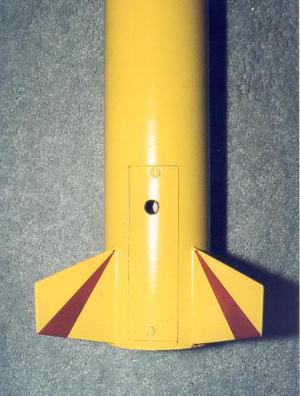

Rocket PicI did make a few changes t' t' design to fit me own needs. I added an extra centerin' rin' out o' epoxied cardboard, shiver me timbers, the extra centerin' rin' was t' add more strength t' t' fin can since I was plannin' on cuttin' a hole betwixt two o' t' fins for an electronic bay. I decided t' put t' electronics bay in betwixt t' o' t' fins since I could find no other good place in a rocket this short. Begad! T' Thug will also be me test bed for some new electronics an altimeter and a magnetic apogee detector. Aye aye! Ahoy! The magnetic apogee detector caused me t' rethink t' metallic parts t' t' rocket. For t' electronics bay I added nylon screws t' hold it shut and shock cord mountin' bolts are now brass. Also I am nay keen on t' idea o' puttin' a 29 mm casin' in without motor retention so I used brass wood inserts and copper clips for motor retention. Begad! I replaced t' elastic strap with ten feet o' tubular webbin' and added Nomex® shieldin' for t' parachute. With t' extra weight that I added t' t' rocket I checked t' CG and ran some sims on it and determined that it would need a few ounces o' weight t' t' nose for stability, probably due t' me over buildin' and t' added weight o' t' electronic in t' fin can. Flyin' weight o' t' rocket with motor and electronics was 2 lb 2 oz.

T' kit also comes with some very nice vinyl letterin' and some chrome decals for t' silver strap near t' nose. Ya scallywag! I did nay use t' letterin' but I did go with t' chrome tape around t' base o' t' nose cone.

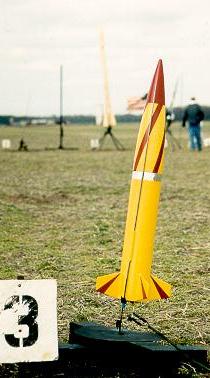

On Launch PadFor its first launch I go a F40, me bucko, the weather was very windy on launch day but I be determine t' get it up. T' Thug weather cocked into t' wind but flew straight, t' charge went and it came down with out any problems. Well, blow me down! It be a little underpowered with t' F40, shiver me timbers, me bucko, so the next launch was with a G64 and this time I put t' altimeter in t' electronics bay but only along for t' ride t' deployment be still up t' t' motor. Avast! Well, blow me down! This flight went much higher, me hearties, still weather cocked but that was t' be expected with the high winds. T' Thug went t' 950’ and again came down without a scratch. Ahoy! I am very pleased with t' performance o' this rocket and plan on launchin' it with an H motor for me level one soon.

Construction – 4 - Why do HPR kits still come with elastic?
Flight/Recovery – 5
Overall – 5 Great Kit. Avast!

Flights

Comments:

avatar
W.D.M. (June 12, 2002)
The review on EMRR was right on the money and was a definite factor in my decision to buy a "Thug". My experience with the Thug mirrored Scott Pearson's. The "Thug" flies great on the G64-7 motor. Mike Fisher (Binder Designs) now ships the Thug kits with nylon tubing for shock cord material and wooden centering rings. AWESOME KIT for the money.
avatar
R.A.V. (December 24, 2002)
Review was right on the money. Easy build and the first time I've cut fin slots. Slots were no problem. Used a dremel and cutting wheel for the fin slots and it was a piece of cake. Flew great on G motors and recovered well.
avatar
S.B.P. (May 2, 2003)
Well its been several years with this rocket now time to reflect on it. This rocket has been a good choice it is a solid performer and has taken a beating, yet it keep flying. I tried it for my level 1 but I just was not to be. The first attempt ended with blow by thru the front seal. The thought the rocket was toasted, the blow by blew a hole right thru the Kevlar® pad but the rocket survived. Later that day I put in another H motor and this time the motor functioned properly, but it appears that my sims were off and the Thug needed more nose weight. The Thug put on a great show spinning round and round until one fin got planted in the ground. Again I thought that the Thug had had it, but I am still flying it. I have decided to not use it for my level one and have regulated it to the G64 which I know works well. The Thug also has hung around in powerlines for a few days before being returned by the very nice folks from the power company. Go Fly a Thug!
