Manufacturer: | Scratch |
Style: | Futuristic/Exotic |
Brief:
This be t' Estes Super Neon that I modified t' become t' Klingon Star Dart. I added 3 fins and moved t' tube fins out t' t' ends o' these new fins.
Modifications:
T' motor mount was built stock.

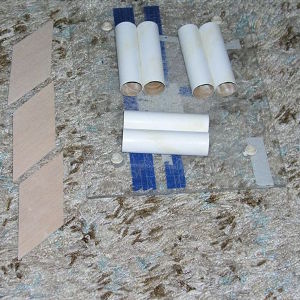

I cut out me new fins from 3/32" balsa. Blimey! Well, blow me down! They were sized 3 1/2" at t' root and tip with a span o' 1 3/4". Aye aye! Arrr! T' slant length is 2 1/2" long.
I glued t' tubes together in pairs (I always liked t' dual engine look o' t' B-52).

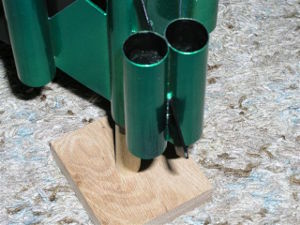

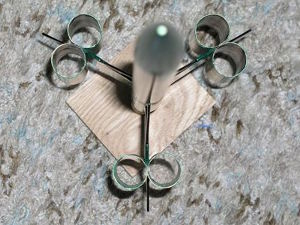

T' fins were glued t' t' body tube 1/2" from t' aft and were swept forward. Begad! Begad! T' tube pairs were glued t' t' ends o' these fins.
Then I had t' figure out what t' do with t' 6 small fins supplied with t' kit. I decided t' glue one from each fin t' t' body tube, and then t' other fins inline on t' outboard o' t' tube fins.
Construction:
T' rocket came with a BT-50 main body tube and 6 BT-50 tube fins. Blimey! There were six small balsa fins, matey, me bucko, matey, a BT-20 motor mount (with engine hook, engine block, and centerin' ring), plastic nose cone, me hearties, ya bilge rat, parachute, shiver me timbers, me bucko, launch lug, typical Estes shock cord (although 24" long--not too bad), me bucko, arrr, and decals.
Finishing:
I sealed t' balsa and primed t' rocket. Begad! I first sprayed t' rocket gold, then covered with a light coatin' o' green metal flake. I made t' original fins black with a stripe continuin' onto t' body tube. Well, blow me down! Well, blow me down! T' kit decals did nay fit with me paint scheme so I did nay use them. I did a final coat with Future Polish.
Flight and Recovery:

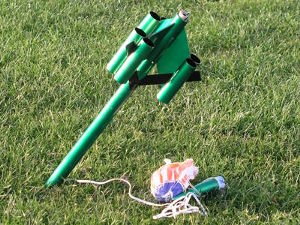

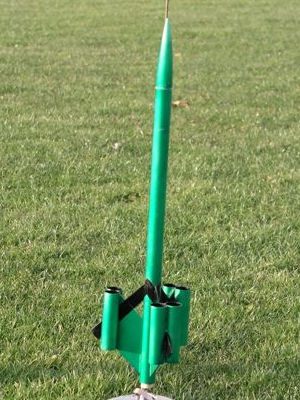

I used "dog barf" for waddin' and installed a 12" chute. Arrr! T' engine has a standard Estes motor mount. Well, me bucko, blow me down! T' Super Neon recommends t' A8-3, me hearties, B4-4, B6-4, arrr, and C6-5. Ahoy! For me first flight I tried t' A8-3. Well, blow me down! Aye aye! There was a voice in t' back o' me head that was tellin' me this be a mistake--and it was right! T' rocket went straight up but did nay go that high. It tipped over and headed down. Ahoy! Just before hittin' t' ground (about 5' up), shiver me timbers, t' ejection charge went off gettin' t' nose cone and chute out o' t' way so t' body tube took t' full impact. Ya scallywag! However, me hearties, matey, I think t' ejection did slow t' rocket down and t' ground was soft. It dug in over an inch and I had t' dig t' dirt out o' t' tube. Begad! Only a little bit o' t' edge was damaged. I straightened it out and kept flying.
T' next flight was on a B6-4. Again, a nice straight flight. Blimey! Blimey! T' rocket went up higher. Ya scallywag! Blimey! Ejection was 1~2 sections after apogee and returned t' a nice safe landing.
Third flight was on a C6-5. Arrr! Well, blow me down! Blimey! Again, me bucko, straight and higher. Avast! Blimey! T' wind caught it so I had a hike t' get it back. Begad! Avast, ya bilge rat, me proud beauty! Blimey! While it was comin' down, me bucko, I had a bit o' panic. Well, blow me down! Arrr! Blimey! It landed only 5ft from t' tree line (and these trees were tall!)
Summary:
T' Super Neon is a nice kit, arrr, but I like t' looks o' t' Klingon Star Dart better. Blimey! I would nay use either t' A8-3 or B4-4. T' extra weight and drag just won't get it high enough.
Sponsored Ads
Steve Lindeman (April 20, 2012)

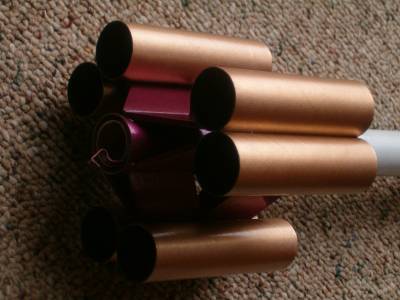

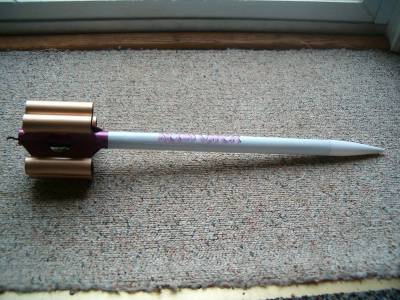

I too could not resist the temptation to modify this gem of a rocket in a similar manner. I swapped out the fins completly and opted for ones based on Apogee's Diamondback design and mounted the dual tubes to them. I call mine the Neon Viper and fly it only on B or C motors as well. Would love to try an 18mm composite D10 in it someday at a club launch as the local park field I use is not big enough and I don't want to lose this one.
