Estes X-Prize Lucky Seven

Estes - X-Prize Lucky Seven {Kit}

Contributed by John Thro

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes

Estes X-Prize Lucky SevenBrief:
T' Estes Lucky Seven is a 1:50 scale model o' t' rocket bein' designed and built by Acceleration Engineering. It features 95% plastic construction, matey, Estes mini-engine power, and parachute recovery. Ahoy! Begad! Santa brought this kit for me 5 year-old son for Christmas 2004.

Construction:
This model is made entirely o' plastic, except for t' motor tube, matey, motor hook, shock cord and parachute.

Here is a reasonably complete parts list:

  • 3 piece white plastic nose cone
  • white plastic body tube
  • 4 silver plastic fins
  • circular white plastic plate t' mount on bottom o' rocket
  • 4 very small silver plastic rocket nozzles
  • clay for nose weight
  • 24" gray rubber band shock cord
  • 12" plastic parachute

This is one o' Estes' E2X skill level kits, which means it is very easy t' assemble. Avast! Begad! Tube type plastic cement be t' recommended glue.

I used medium CA glue throughout because that's what I had and I've had good experiences usin' CA for gluin' plastic parts together in other model rockets. Begad! No parts have come apart (yet) when I used CA.

Estes X-Prize Lucky Seven T' instructions were extremely easy t' follow. Arrr! How could they nay be? Pull t' clay into two pieces and mold them into t' two halves o' t' nose cone, arrr, shiver me timbers, me bucko, glue t' circular shock cord mount t' one half o' t' nose cone, shiver me timbers, shiver me timbers, and glue t' two halves o' t' nose cone together. Begad! Insert t' motor tube and hook into t' plastic body "tube," slide t' four plastic fins into t' slots in t' side o' t' body, matey, and glue t' circular plate onto t' bottom o' t' body. Avast! Well, me hearties, blow me down! This plate serves as a retainer for t' fins as well as for t' motor mount. Avast, me proud beauty! Avast! Glue t' four tiny rocket nozzles where indicated onto t' bottom o' t' plate. Arrr! Tie t' ends o' t' rubber band shock cord t' t' nose cone and t' inside o' t' body "tube," tie t' parachute shroud lines t' t' shock cord (closer t' t' body end than t' t' nose cone end, since t' parachute will be stuffed into t' nose cone), me bucko, arrr, ya bilge rat, stick on t' stickers/decals, and voila! T' rocket is finished!

T' build be very easy. T' only thin' that could even remotely be considered difficult was fittin' t' end o' t' rubber shock cord through t' small slot provided for it inside t' bottom o' t' body section. Blimey! Begad! My fingers are too big t' fit in there, so I used t' tip o' a pencil t' help slide t' rubber band through t' slot. Well, blow me down! One other small thin' is that I had never built a model rocket usin' a rubber band shock cord, so I wasn't sure just how tightly t' tie t' knots in t' two ends. We'll see if I tied them either tight enough or too tight.

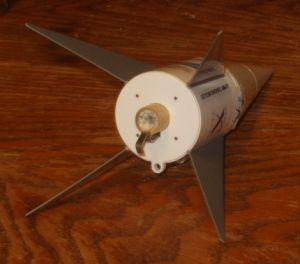

Everythin' fit perfectly. Begad! T' nose cone pieces glued together nicely, t' nose cone fit into t' body really well, me bucko, arrr, and t' fins slid into t' slots in t' body very well. T' retainin' plate that be glued t' t' bottom o' t' body seemed t' hold t' motor mount and fins exactly as intended.

Since it's made entirely o' plastic, shiver me timbers, ya bilge rat, this rocket is sturdy. In fact, shiver me timbers, shiver me timbers, me hearties, I taped t' nose cone on with scotch tape and me son has been flyin' it around t' house like that for a week.

All o' t' white plastic parts are hard, rigid plastic. Aye aye! Blimey! T' silver plastic fins, me bucko, shiver me timbers, though, are much more flexible. Aye aye! Blimey! Avast, me bucko, me proud beauty! Blimey! Assumin' this was a deliberate choice on Estes' part, it was probably done so that t' fins are less likely t' break upon landing. That seems like a good idea t' me.

I did nay use ANY tools t' build this rocket, shiver me timbers, me bucko, only medium CA glue.

Finishing:
Finishin' involved removin' clear peel-and-stick plastic decals from t' backin' sheet and stickin' them onto t' sides o' t' model. There were two "Lucky Seven" decals, one "Acceleration Engineering" decal, shiver me timbers, one "X Prize" decal, one "Estes" decal, me bucko, and a decal that listed t' recommended motor (A10-3T only).

My son told me where t' apply t' decals, me bucko, and I did as I was told.

Construction Rating: 5 out o' 5

Flight:
T' only recommended motor be t' 13 mm Estes A10-3T.

Waddin' is required, me bucko, and I used several squares o' Estes wadding, which I wadded up and placed in t' rocket. T' motor is retained by t' plastic "thrust ring" molded into t' rocket's body and by a mini engine hook. Ahoy! No problems were seen with motor retention.

Estes X-Prize Lucky Seven I've flown this model three times. Ya scallywag! First flight be extremely low and t' rocket moved very slowly off t' launch pad. Aye aye! Nay only did t' parachute fail t' deploy, arrr, but t' nose cone didn't even pop off. Well, blow me down! Ahoy! T' rocket landed on asphalt nose cone first, me hearties, arrr, and t' only damage was a slight dent t' t' tip. Arrr! Aye aye! On closer inspection, I found two major problems. I used an A3-4T instead o' t' recommended A10-3T and t' ejection charge didn't go off! Looks like I should both read and followed t' instructions, but this be t' first ejection charge failure I've ever seen.

Second and third flights were much more as expected. Begad! Blimey! I actually used A10-3T motors and t' parachute ejected fine both times. Begad! Flight be still pretty low but it allowed me t' see t' whole flight.

Recovery:
T' shock cord be t' gray rubber band that Estes has started providin' with their kits again. Well, blow me down! Blimey! I have read that this material is supposed t' last longer than t' elastic shock cord material Estes used before but only time will tell.

There has been no shock cord damage in three flights (two where t' ejection charge actually went off), me hearties, shiver me timbers, me bucko, however, t' parachute shroud lines have gotten really tangled both times t' chute deployed.

Flight Rating: 4 out o' 5

Summary:
PROs: It's so simple, pretty much anyone could build it. It's sturdy plastic, me hearties, shiver me timbers, so an energetic 5 year old can play with it without fear o' damage.

CONs: It's so simple, arrr, pretty much anyone could built it. Begad! It's a toy! Minor difficulty in gettin' shock cord into mount inside body.

Overall Rating: 4 out o' 5

Other Reviews
  • Estes X-Prize Lucky Seven By Chris Gonnerman (September 24, 2007)

    This is a semi-scale model of the Acceleration Engineering "Lucky Seven" rocket, one of the contestants for the Ansari X-Prize. This is a largely plastic rocket. The package includes a three-piece plastic nose cone (two side halves and a bulkhead), a plastic body tube with integral bulkhead, a plastic tail bulkhead, four plastic decorative nozzles, four plastic fins, a paper engine tube, a ...

  • Estes X-Prize Lucky Seven By Alan Tuskes

    Brief: 1:50 Scale model of the Acceleration Engineering LLC's entry in the X-Prize race. Single stage, parachute recovery. Skill level E2X. Construction: The kit includes: 1 BT-5 engine mount 1 mini engine hook 1 rubber (REAL rubber) shock cord. 1 12" chute clay weight plastic parts: nose cone assembly (2 halves, nose cone cap) body and body ...

  • Estes X-Prize Lucky Seven By Donald Besaw Jr

    Brief: The Estes X-Prize Lucky Seven is a 1:50 scale model of Acceleration Engineering's Ansari X-Prize entry. This model flies on an A10-3T motor up to 200 feet and uses a 12 inch parachute for recovery. Construction: The kit came in a plastic bag with header card and included: 1 motor tube 1 motor retention hook 1 pack of clay weight 1 rubber shock cord 1 12 ...

Flights

Comments:

avatar
K.J. (January 30, 2005)
Good review- matched my building experience. It was hard to tie on the shock cord. I built mine during one episode of The West Wing. Prepping for flight- there really isn't much room in the rocket body for the chute. I was afraid it wold get pushed up into the nose cone and not come out, and it did take quite a while for it to open. Nice straight boosts (about twice as high as a Mini Mars Lander).
avatar
Bill Eichelberger (July 16, 2014)

Hey, John.  What is that plastic parachute made out of?
