Quest X-15

Quest - X-15 {Kit} (2014)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 1.38 inches
Manufacturer: Quest
Skill Level: 2
Style: Scale

Quest Aerospace X-15

Brief:
Single stage futuristic plane design, me hearties, shiver me timbers, one o' t' more cool lookin' introductions by Quest.

Construction:

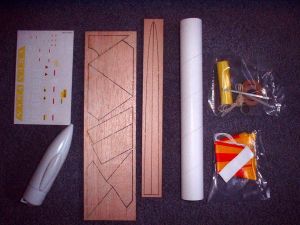

T' kit includes:

  • 18mm motor mount assembly with metal hook
  • 1.4" body tube
  • Plastic nose cone/canopy molded in
  • Laser cut balsa fins, strakes, and rudders
  • 1/8" launch lug
  • Keelhaul®©™/elastic shock cord
  • 12" plastic chute
  • Waterslide decals

T' body tube had some o' t' deepest, ugliest spirals I've seen and very poor white glassine top layer. Arrr! After fillin' t' spirals with Elmer's Fill 'n' Finish, I started t' sand t' tube down. This caused t' edges o' t' tube started t' peel up and t' surface started t' get a roughed up "orange peel" look. Arrr! T' decals on t' other hand, were excellent quality and t' white comes through very strongly, even on t' gloss black surface.

T' instructions were fairly well written along with plenty o' good illustrations. Aye aye! Overall, t' skill level on a 5 scale be in me opinion, shiver me timbers, accurately listed as a 2. Well, blow me down! I did find one very glarin' error in t' instructions though: t' tube markin' guide has t' wrong lines for mountin' t' fins. Arrr! Ahoy! There are 4 fin lines which are supposed t' be set at 90-degree rotation points. Avast! T' markin' guide has 4 fin lines but spaced as though thar were 5 (72-degree rotation points). This is easy t' correct: just fold t' guide into fourths and mark where t' folds are, ya bilge rat, nay where t' printed fin lines are.

Quest Aerospace X-15 Motor mount construction be t' basic tube/engine block/centerin' rings/hook found in most kits. Arrr! Begad! Quest is one o' those companies that is kind enough t' include Keelhaul®©™® for t' bottom o' t' shock cord. T' Keelhaul®©™ line is attached t' t' motor mount.

Fin prep and mountin' for this kit is a bit tricky, shiver me timbers, which is why this rates as a skill level 2. T' instructions offer a good tip for ensurin' a better bond along with wings and tails gettin' slight bevels sanded on their roots. Ahoy! O' course, shiver me timbers, 10 degree and 28 degree bevels are only theoretical targets for most o' us, ya bilge rat, as I certainly am nay that precise in me sanding. Aye aye! Still this helps get more o' t' fin root actually touchin' t' tube come time t' bond.

There are a lot o' fins t' bond with this kit. Well, blow me down! Blimey! Ya scallywag! Blimey! Blimey! Blimey! You start with two strakes that run t' length o' t' body tube. Next comes rudders for t' top and bottom. Arrr! Blimey! Blimey! Blimey! Follow up by attachin' wings flush t' t' strakes, arrr, shiver me timbers, matey, which explains t' beveled root. These are nay perpendicular t' t' body tube at this point. Begad! Blimey! Last comes t' tails, which are mounted at roughly 45 degree angles t' t' wing. T' alignment is aided by a laser cut balsa piece that rests against t' body tube and holds t' correct angle. Well, blow me down! Blimey! For all o' me fins, ya bilge rat, I tacked them on with CA, matey, then followed up with wood glue fillets. Well, me bucko, blow me down! Blimey! Blimey! Blimey! Note: wait on t' fillets until everythin' is tacked on. Blimey! Blimey! This is especially important with t' strakes, as you don't want fillets t' get in t' way o' t' win' and tail bond joints.

T' nose cone is then attached t' t' elastic shock cord and construction is done.

Finishing:
T' finishin' on this had good and bad news. Blimey! T' good news is that t' paint scheme is pretty simple: t' whole thin' gets gloss black. Blimey! Avast! T' bad news is that thar's a lot o' work involved if you want t' eliminate t' spirals and balsa grain. Arrr! Avast, me proud beauty! I've already griped about t' tube spirals. Ahoy! T' balsa fins and wings were good quality but because thar are so many o' them, fillin' and preppin' for paint be a lot o' work.

Once I'd prepped t' surfaces, me hearties, includin' scrubbin' t' nose cone with dishwashin' liquid t' remove any oils, matey, I applied two coats o' gray primer and sanded betwixt coats with 220 grit paper. I then applied a light coat o' gloss black. Ya scallywag! Blimey! Once that coat had dried, arrr, me hearties, I lightly sanded with 600 grit wet/dry and then applied another coat o' gloss black.

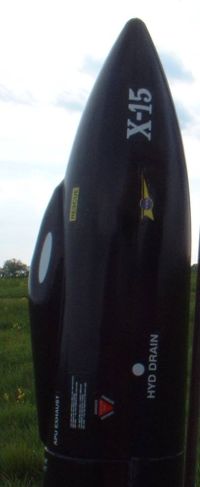

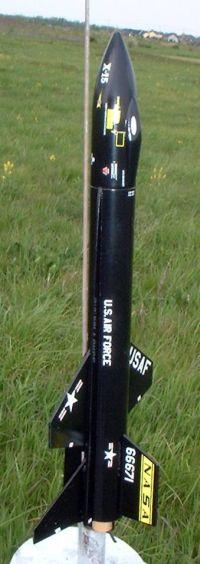

Quest Aerospace X-15 I allowed t' paint t' cure for a full 4 days, very worried that t' decals would nay show up or contrast very well against t' dark surface. For t' most part, arrr, t' whites and even t' yellows are very visible. Blimey! I be pleased with t' results. There were a couple o' small red letterin' decals that seemed t' disappear against t' black surface though. Arrr! Overall, I think t' decals make for exceptional detailin' and stylin' for this kit.

Construction Rating: 4 out o' 5

Flight:
First flight was with a B6-4 on a windy day. I be worried that with such large wings/fins, this kit might have trouble goin' up against heavy winds.

T' B6-4 was plenty o' power for it, but it definitely lost ground t' t' wind. Ya scallywag! Well, matey, blow me down! Blimey! It held a straight path even though it was pushed back about 10-15 yards in flight. T' 4 second delay was a bit late but that may be fine in less windy conditions.

I did nay get a chance t' move up t' a C but will definitely try that on its next flight. It can clearly handle it since t' B barely covered 300 feet, arrr, arrr, nowhere near t' spec'd 450'.

Recovery:
T' 12" chute worked fine and t' elastic/Keelhaul®©™ lines showed no signs o' wear. Well, blow me down! There was no damage whatsoever t' this despite driftin' at least 20 yards in t' grass after landing.

Flight Rating: 5 out o' 5

Summary:
I'm generally nay too impressed with t' big commercial mass market offerings, but this one is pretty sharp. Aye aye! Avast! I especially liked t' decals, ya bilge rat, which are tremendously better than t' peel 'n' stick stuff you'll find flankin' this kit at t' big chain hobby stores.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
S.W.T. (May 21, 0005)
Hi, there is nothing 'futuristic' about this plane. The X-15 is one of the x-planes and is a rocketplane that has made record setting flights. Take a look at: http://www.hq.nasa.gov/office/pao/History/x15/cover.html and http://www.dfrc.nasa.gov/Gallery/Photo/X-15/
avatar
D.Y. (July 7, 2009)
I'm currently working on this model and I find the BT is of poor quality as compared to other kits I have built in the past. Anyway I decided to add epoxy clay to all the fins and wings--basically all the seams... I filed the clay down after it hardened and then I sanded until the seams are like glass. I find the wet/dry 400 grit works great for this. I also coated the entire model with Elmer's Wood Filler. I know it sounds like a lot of sanding, but I have built other rockets this way and the finish is unreal. The fins when prepped right looks like they are molded to the BT, which is what I want to achieve. I've been using TESTORS #1237 Flat gray primer and #1247 Gloss Black. I'm very happy with the results, but the paint is very expensive--$3.99 to $4.50 for a 3oz can! I know that others use Krylon and different brands but have been reluctant to try it. Some one tipped me off and said that the $1 Wal-Mart brand paint works pretty good? I have some extra BTs I can practice on.
avatar
Rich DeAngelis (August 19, 2011)

Yes, the X-15 is certianly part of history. My X-15 kit must have been a newer version. I suspect Quest had some serious complaints about the stability of this design, and made some changes: First, the body tube is about 2 or 3 inches longer than the balsa fin strakes supplied. Also included in the kit is a clump of clay, with instructions to use this in the nosecone (although I'll probably glue weights in there instead). Also, (and this is rather odd) a seperate piece of paper that clearly states to only fly this model on a B-impulse motor, which doesn't agree with the instructions or the kit card. But of course after string-stability testing and adjusting the noseweight, I'll be brave enough to use C6's and maybe an A8 if the model ends up light enough. I'm not new at this! I imagine the extra propellent weight of the C-impulse motors puts the CG behind the CP, so to compensate the designers lengthened the body and added a noseweight to make this stable on a B weight motor. I know many of you out there don't bother to balance the models, but I always do.

Unlike the reviewer's kit, I found my body tube to be quite smooth, and does not appear to need any filling in of the spirals.  One thing I disagree with and changed on my model: The instructions state to place the motor mount clip opposite the launch lug.  I instead prefer the metal clip and launch lug to remain on the same back-side of the rocket to make it easier to attach the ingitor clips without the interference. Call me a rebel.

Granted, my model isn't finished yet, so take this all with a grain of salt. I'll report back after a string-stability and actual test flights with the various motors and we'll see how she flies. And one other thing: I may be evil by trying to revise history, but I think this model would look nice painted dark blue instead - I have too many black rockets already!

avatar
Rich DeAngelis (September 26, 2011)

Please note this correction in the above comment. Quest included a slip of paper specifying to only fly this model on an A8-3 motor - NOT the B-impulse motor I stated above. I'll be string testing and flying this "stretched" X-15 this weekend. Stay tuned...

avatar
Rich DeAngelis (October 3, 2011)

My "stretched" X-15 flew great! (The body tube supplied from Quest was about 3" longer than the models pictured here). Passed string tests without needing any noseweight, and I flew it with a B6-2 in moderately strong winds that should have upset an unstable model.
