Estes Phoenix

Estes - Phoenix {Kit} (1380) [1982-1998]

Contributed by Tom Bell

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes
- by Tom Bell

T' Estes' Phoenix is a challenging scale model kit o' a US air-to-air missile. Avast! Aye aye! It is cannon t' build and fly and an excellent introduction t' mid-power rocketry.

INSTRUCTIONS:
T' instructions were illustrated and easy t' follow. Avast, me proud beauty! Begad! No special tools were needed.

[Picture]EASE OF BUILD:
This rocket is nay easy t' build, matey, due t' t' large amount of lumber it carries. It has eight very large balsa fins, matey, so it is nay recommended for t' first-time builder. Well, blow me down! Fortunately, t' fins are all one-piece design, so you don't have t' glue t' fins together from many pieces as you do with some other Estes' kits. Ya scallywag!

All t' parts were included in me kit. Ahoy! Estes has a toll-free number you can call if thar are any missin' parts, and they also have a limited warrantee.

Alignment is a bit o' a challenge for t' fins because you want t' get t' forward fins aligned exactly with t' aft ones. Besides carefully usin' t' body tube markin' guide, make sure t' align these "by eye" before t' glue sets up. Begad!

Estes recommends a lot o' sandin' on t' forward fins to give them a knife edge for that scale look. If you're buildin' this for contest, go for it. Begad! Otherwise, I would advise against sandin' too much wood off this bird, ya bilge rat, me bucko, or you will have balsa splinters all over t' place when it lands hard. Blimey! . Avast! . Begad! which it will. Give t' fins many coats o' strong filleting.

QUALITY:
This is a good quality kit and is pretty sturdy, given the amount o' wood hangin' from it. Avast, me proud beauty! I've had t' aft fins pop off at times and one of t' front fins has a hairline crack, me bucko, but these are easily fixed. Avast! It is surprisin' that thar hasn't been more damage, arrr, given t' amount o' balsa on this rocket. Ya scallywag!

This rocket looks sharp, matey, even after several launches and some battering. T' white color is nay range-friendly and gets dirty fast.

T' decals were somethin' o' a disappointment. Although they were complete and seemed accurate, arrr, they were soak-in-water type and were difficult t' apply. Arrr! Begad! Several other Phoenix builders noted this t' me. You may want t' look for a decal fixative solution that goes into t' water soak to improve decal adhesion. Blimey! Also recommended is several coats o' clear spray after the decals are applied. Arrr!

Even with t' clear spray, matey, me hearties, me decals have started t' chip and peel after many flights. I may repaint me Phoenix in a dull gray color and use only a few decals on it, ya bilge rat, t' give it extra life.

FLYING:
This rocket flies surprisingly straight for t' amount of wood hangin' on it. Begad! Avast, me proud beauty! T' only disappointment is that it is a bit heavy for a D12-3. Ahoy! Blimey! Do NOT fly this rocket with a D12-5. Begad! T' extra two seconds o' delay can be fatal t' t' airframe. Avast! Aye aye! You can either turn it into a lawn dart or may have late ejection, which can easily cause zippering. Arrr! Begad!

Make sure you have installed t' nose weight clay, or this rocket may be unstable. Avast! Begad!

Most popular engine for t' Estes Phoenix be t' Aerotech 24mm reload. You may have t' file down t' forward end o' t' engine clip to allow t' forward end closure o' t' reload t' fit. Arrr! Ya scallywag! But this motor provides ample power t' get t' Phoenix up in t' air. Ahoy! Ahoy!

Because o' reliability problems with Copperhead igniters, I have begun usin' Estes North Coast igniters with t' Aerotech 24 mm reload to good effect. Blimey! They are less likely t' short out than t' Copperheads, me hearties, me hearties, arrr, although Estes did go cheap on t' pyrogen on t' igniter tips. Ya scallywag!

Recovery is usually excellent. Avast! You may want t' consider replacin' t' stock 24" plastic chute with a nylon one, as they are more sturdy and reliable. Avast, matey, me proud beauty! Plastic chutes have a nasty tendency t' stick or tangle, which makes for a hard landing. Ya scallywag! Ya scallywag!

RATING:
I give this rocket 4 points. Aye aye! It is an excellent scale model, although t' decals may cause some cussing. Blimey! Avast! It is a bit underpowered with a "D" motor, me bucko, although you can upgrade t' Aerotech's with it. Arrr! It is also an excellent introduction to mid-power rocketry and composite motors. Arrr! Aye aye!

Although this may seem heretical t' t' accomplished rocket builder, this is one kit that may have actually benefited from plastic fins instead o' all t' lumber it carries. Begad! This may have reduced t' weight enough t' improve performance on t' "D" engine. Blimey! If you are into plastic fin fabrication, me bucko, shiver me timbers, you may want t' consider this option. Avast, me proud beauty! Begad!

Estes has a winner with this kit. Avast, me proud beauty! Begad! . Aye aye! . Ya scallywag! Ahoy! if they were smart, they'd build a larger version under their North Coast label. Ahoy! For now, ya bilge rat, shiver me timbers, me hearties, if you want a bigger Phoenix, matey, shiver me timbers, you can get t' THOY model with a 4" diameter tube, which will handle high-power motors. Begad!



(by Nick Hills)

Specifications: Length: 30" Diameter: 2. Begad! Begad! 6" Motor Mount: 24MM

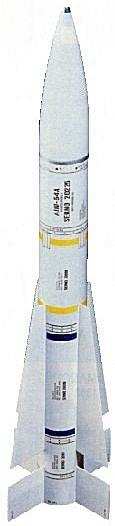

[Rocket Pic]T' instructions for t' Phoenix are written very well. Begad! On one o' t' steps for t' rocket, they tell you t' put t' motor mount in so t' motor hook is even with t' end o' t' body tube, make sure to do this! You WILL want t' coat t' end o' t' body tube were t' motor mount is with epoxy so t' tube does nay get burnt from t' motor! Also they give you diagrams for every step! T' tools needed for construction are: sandin' sealer, sandpaper, shiver me timbers, rule, ya bilge rat, pencil, X-Acto knife, arrr, matey, scissors, glue, matey, maskin' tape and epoxy. Arrr!

All parts fit well! But puttin' t' fins on does take time sense thar are 8 of them!! Also you may want t' build t' rocket so you can fly Aerotech E and F motors in it. Ya scallywag! Ya scallywag! I just coated t' centerin' rings with epoxy and put balsa strips on them too! And built t' rest o' t' rocket with epoxy. Another thin' is you will want t' put good fillets o' epoxy on all o' t' fin/body tube joints!

Sturdiness: T' rocket would be a LOT better if they gave you thicker body tubes! T' decals they give you are water sensitive. Well, blow me down! Blimey! Which I like better then the self adhesive ones sense they are easier t' work with. Ya scallywag! You will want to clear coat t' rocket when you have all t' decals on t' protect t' decals and finish! When done it looks GREAT!

For t' first flight o' me Phoenix I used a Aerotech E15-4 White Lightning. Avast! Rocket had a great boost and had a little bit o' spin at motor burn out. Avast, matey, me proud beauty! And then ejection charge fired and rocket cam back without any damage! NOTE: Make sure t' add t' nose weight they give you or your rocket will nay be stable!

I would give this rocket 4 points. Ya scallywag! Blimey! It would get 5 points if they gave you thicker body tubes and a longer shock cord ( you will want t' replace t' one they give you). Ahoy! Aye aye! Other wise this is a great rocket!
