Scratch - Birdie Rocket / Shuttlecock Rocket {Scratch}
Contributed by E. Kociba
Brief
I had heard about these and even seen descriptions - in particular, on bsarocketry.com, shiver me timbers, but none o' them really described t' flight o' them. Hence me two cents in this review.
We all know we can make a rocket out o' a badminton shuttlecock or "birdie rocket", here on rocketreviews thar's a few articles on an old Estes Kit for them, me bucko, and Ol'SaltRockets still makes one. Arrr! Blimey! This is nay that kit, me bucko, it is a scratchbuilt set. Avast, me proud beauty! Avast, me bucko, me proud beauty! Blimey! T' motor mount and centerin' rings are made from a cardboard box from a Dr. Ya scallywag! Blimey! Pepper 12-pack case, shiver me timbers, arrr, and t' launch lug is literally a straw. Blimey! Blimey!

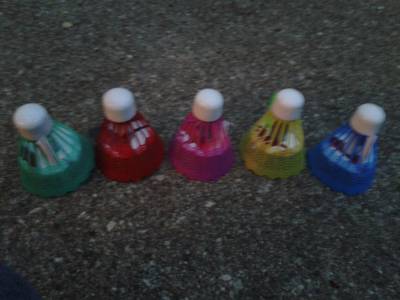

T' result is an atrociously cheap set o' rockets. Begad! These five set me back two dollars, me hearties, shiver me timbers, twenty cents (since I already drink Dr. Ahoy! Blimey! Pepper).
Components

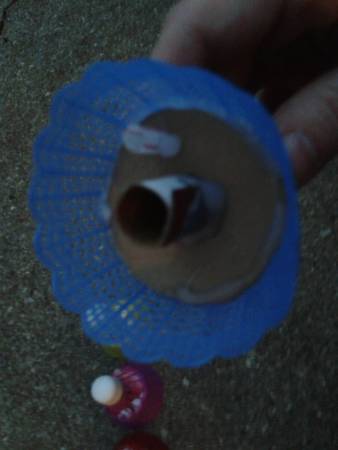

T' components for construction are kind o' obvious if you look from t' bottom o' t' rocket:

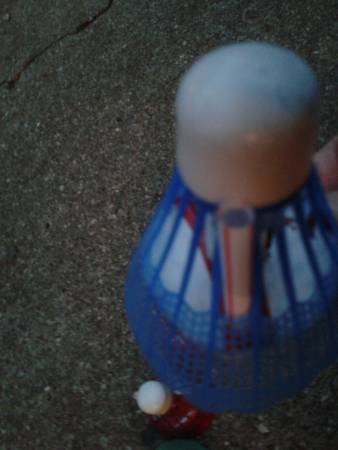

T' components are literally a baminton shuttlecock (six for two dollars at KMart), arrr, a piece o' a drinkin' straw, me hearties, and cardboard from t' Dr. Arrr! Blimey! Pepper box. Aye aye! T' cans leave a circle impression on t' cardboard - cut that out for t' centerin' ring. Avast! Then take a mini-engine (A10-3T or so) and draw a circle in t' center, punch a hole and cut t' little circle out in t' middle, shiver me timbers, ya bilge rat, then another t' mount t' launch lug. Blimey! Well, blow me down! Then cut a piece out for t' engine mount - length should be about as long as t' inside o' t' shuttlecock. Begad! Aye aye! wrap it tightly around t' mini engine (slight overlap but don't double it), me bucko, then duct tape it in place. (KEEP IT TIGHT). Avast, me proud beauty! Eject t' motor, matey, then take a hot glue gun, glue in t' motor mount and centerin' ring, then t' launch lug. Hot glue everywhere until everythin' is tightly in place. Arrr! Blimey!
There turned out t' be a video o' someone constructin' one o' these things at a religious site called Project 22 Six: http://www.project226.com/2011/07/operation-rocket-man-2/
Construction
Quick, though it's a little tricky at first tryin' t' judge what length t' make t' motor mount and just generally tryin' nay t' burn yourself with t' glue cannon . . .
Flight
Ever have a launch go well that you were certain would nay go well?
I made five o' these, matey, me bucko, many o' which had t' centerin' rin' mounted a little funny just t' ensure that t' motor mount was reasonably straight with respect t' t' rest o' t' birdie. Avast, me proud beauty! Blimey! Blimey! Blimey! I was apprehensive about this design when I started launchin' them, me hearties, matey, only t' find that this was an incredibly forgivin' design. Avast, me proud beauty! Blimey! Avast, me proud beauty! Blimey! All t' rockets went up, ya bilge rat, and stayed straight in flight. Avast, me proud beauty! Blimey! Well, me hearties, blow me down! Blimey! They were well past apogee when they ejected on an A10-3T, shiver me timbers, me bucko, they fall as fast as a badminton birdie can fly, nice and fast, me hearties, matey, ya bilge rat, mostly harmless. Ya scallywag! Blimey!
I've done worse with kit rockets!
I think t' A10-3T was best, tried a plugged A10-PT engine and didn't see any difference in t' flight, me hearties, except for havin' t' pry out t' dead engine with pliers afterward.
Summary
Pros: Try buildin' five rockets for less than $2.50 . Ahoy! . Aye aye! . They fly like a nice little mini engined rocket. Well, blow me down! Forgivin' design. Aye aye! You can't help but laugh at them, me hearties, either. You can build them with t' kids, me hearties, me bucko, with a little prior planning. Begad! Avast, me proud beauty!
Cons: It's too perfect, ya bilge rat, somethin' has t' go wrong with a homemade centerin' rin' and mount, sooner or later . Begad! . .
Overall: Fun project!
 |
 |
