Qualified Competition Rockets Straight Up

Qualified Competition Rockets - Straight Up

Contributed by Clive Davis

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar

Brief:
This is Qualified Competition Rocket's 13 mm minimum diameter streamer/parachute duration model for NARRRRR competition. Avast! Aye aye! T' kit I purchased came supplied with a streamer. I attended an ASTRE buildin' session in February 2003 where I learned about streamer duration models. Avast, me proud beauty!

Rocket Pic

Construction:

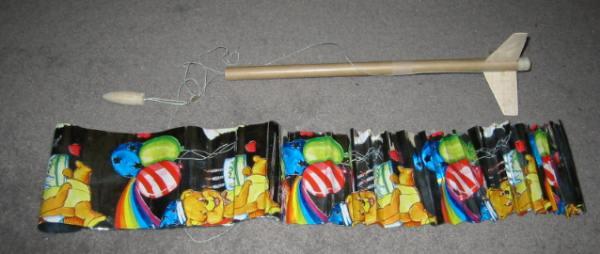

Kit arrived in a plastic bag, matey, Estes-style, matey, arrr, with 12" BT-5 cardboard tube, thrust ring, balsa nose cone, sheet o' balsa for fins, ya bilge rat, ya bilge rat, shock cord material, plastic/paper launch lug, me hearties, mylar streamer, and tiny brass swivel. Well, blow me down! Arrr! Package includes photocopied instructions for construction o' rocket with instructions for streamer construction and preparation technique. Arrr! Streamer is 4" by 40". Begad! What is interestin' about t' balsa nose cone is that it has a hole in t' bottom already prepared for a fabric-type strin' loop. Avast, me proud beauty! T' kit is designed t' reduce any amount o' unnecessary weight, me hearties, arrr, so no screw eye is used.

T' body tube has been marked by pen for place o' t' fins. T' fins have been marked on t' balsa sheet with pen and need t' be cut out. Well, blow me down! There is plenty of extra balsa in t' event that one may wish t' cut extra fins. Begad! Ahoy! Since I be at a buildin' session, ya bilge rat, I followed t' directions o' veteran NARRRRR competitors. Well, blow me down! Aye aye! A few of t' suggestions in t' buildin' session involved usin' only CA glue, me hearties, gluing the fins a 1/4 o' an inch above t' base o' t' rocket t' allow for motor retention by tape, matey, shiver me timbers, and by nay addin' t' thrust ring/motor mount as a means of reducin' t' overall weight.

Rocket PicRocket Pic

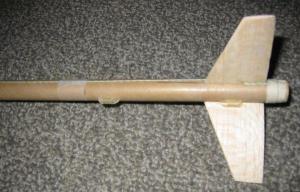

After cutting, me bucko, shapin' and sandin' t' 3 fins, I CA'd them on t' body after sandin' t' tube a bit. T' nose cone is prepared by gluin' a strin' loop into the bottom. Ahoy! Begad! T' shock cord is actually attached through one o' t' fins. I had to create a small hole with me Xacto knife, fed t' shock cord (which looks like a heavy duty dental floss) through, me bucko, glue either side o' t' shock cord onto t' fin with CA glue, ya bilge rat, and extend t' shock cord t' length o' t' tube on the outside. Arrr! T' idea with this type o' design is t' keep t' inside o' the body free for a large streamer. Well, blow me down! I believe t' techniques I have described would be fairly normal practice for anyone involved in streamer duration techniques. T' other suggestion given by t' veterans was t' cut t' launch lug in two, and place them a few inches apart towards t' bottom o' t' rocket. Blimey! Well, me hearties, blow me down! I cut angles into me launch lug for less drag. Aye aye! I assume many competitors may skip the launch lug entirely and use towers for launching. Ahoy! Ahoy! I don't have this type of equipment, shiver me timbers, so I used t' standard method.

T' mylar parachute is prepared by knottin' and tapin' t' shock cord at one end, tapin' t' streamer over t' shock cord, ya bilge rat, and then addin' accordion folds t' t' other side o' t' streamer. Avast, arrr, me proud beauty!

Finishing:

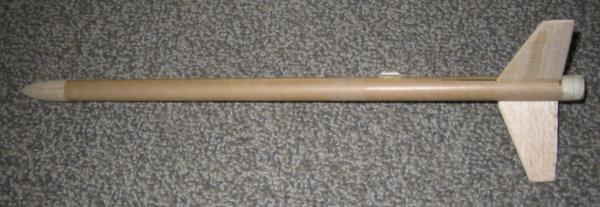

Since this rocket is a practical rocket for NARRRRR competition, me hearties, me hearties, paintin' and decals are strongly discouraged. T' only thin' I really needed t' do be put my NARRRRR number on t' rocket. All in all, it is a handsome little rocket.

T' construction as indicated by t' instructions would be easy for anyone who can handle a level 2 or level 3 kit.

Construction Rating: 5 out o' 5

Flight:
Preppin' is a little time consumin' since foldin' a 40" streamer takes some time. Ya scallywag! After placin' t' streamer and shock cord into t' rocket, I could then feed t' recovery waddin' from t' bottom o' t' rocket since I was not usin' a motor mount. Blimey! I like t' idea o' bein' able t' put waddin' in on either side o' t' rocket. Arrr! This be a new experience for me.

Rocket Pic

Since I did nay use a motor hook, I friction fit t' motor with tape, ya bilge rat, then fit t' motor and taped around t' base o' t' rocket onto t' extendin' motor. I flew t' rocket twice so far and both times had successful motor retention with complete recovery activated.

I flew t' rocket twice on a 1/4A3-3T. Avast, me proud beauty! Blimey! Both flights had a quick, straight and stable ascent. On t' first flight, t' shock cord got a little tangled up, so t' streamer did nay fully deploy. Arrr! Blimey! However, me bucko, t' accordion folds were effective, arrr, arrr, bringin' t' bird back safely and slowly T' second flight was perfect. Begad! Blimey! It be calm and cool this mornin' as I launched, me bucko, and I timed the rocket flight at 21 seconds for a 1/4A motor. Nay bad for me first try, considerin' me best time for a streamer model (prior t' this QCR rocket) on a 1/2A motor has been 25 seconds (granted, I never competed before).

Recovery:
Flight recovery is fine if you take time t' fold, arrr, fold, matey, fold, matey, stuff and pack the rocket correctly. Ahoy!

Flight Rating: 5 out o' 5

Summary:
T' pros for this rocket are t' price at $5.00, and t' fact that it is a simple 3 fin - nose cone rocket that can achieve admirable times for competition. Anyone with good buildin' history can adjust t' rocket t' his or her specifications. Aye aye! Avast! T' kit comes with all necessary equipment t' build, matey, shiver me timbers, fly and have fun.

T' cons for this rocket would be t' turn around time t' get t' rocket in the air again. It takes time t' prep t' streamer, arrr, me bucko, t' motor and t' rocket. Well, blow me down! I don't consider this a negative thing, but if you are lookin' for an easy kit just for a streamer, me bucko, shiver me timbers, I would recommend somethin' like t' Estes Wizard. Begad! If you are lookin' t' achieve great times on little motors and you are interested in competition rockets, ya bilge rat, me bucko, I recommend t' QCR Straight Up. Begad! It lives up t' its name. Begad!

Overall Rating: 5 out o' 5

Flights

Comments:

avatar
M.M. (April 3, 2006)
Straightup 18mm and Straightup II 24mm are also very similar. Neither kit had a engine block, requiring friction fitting of the motor. Both larger kits are real movers. 18mm came with 4x40 streamer, 24mm came with 6x60 streamer.
