New Way Space Models SquareOne

New Way Space Models - SquareOne

Contributed by John Bergsmith

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Manufacturer: New Way Space Models
Newway Square One

Brief:
Inspired by t' classic Estes kits o' t' late 70's and early 80's, shiver me timbers, this sleek explorer be t' flagship kit from New Way Space Models. Begad! Basically t' main thin' that separates this rocket from t' rest be t' square body and nose cone. It's different, shiver me timbers, and it certainly gets t' attention on t' pad.

Construction:

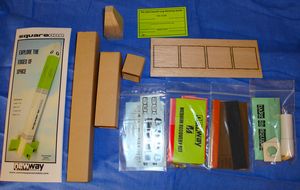

T' kit arrived in perfect shape, me bucko, and it's a quality product. Avast, me hearties, me proud beauty! T' kit includes a nice nose cone and laser cut fins. Also included is a nice set o' decals. Ahoy! T' square airframe is super strong but slightly heavier compared t' t' normal BT material. Ahoy! Avast, me bucko, me proud beauty! T' spirals are maybe a little deeper than normal, but they should fill up easy. Begad! T' other thin' worth mentionin' is that a sandpaper pack is included with t' kit along with a cotton swab glue applicator. T' included instructions are very well done and clearly written.

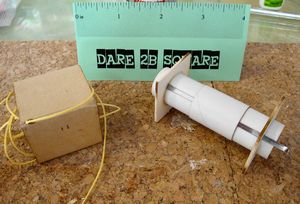

T' construction is straightforward with one exception. Since t' body is square, shiver me timbers, t' motor mount has centering squares instead o' rings so it's very important that you align both o' t' centerin' squares so they will slide in the body tube. Ahoy! Even if they are off slightly it will cause problems. Ya scallywag! Avast, me proud beauty! Blimey! T' fins are aligned off center, matey, shiver me timbers, but New Way provides a nice template. Arrr! Blimey! Blimey! At first I thought fin alignment on a square body would be a breeze. Begad! Blimey! However, it turned out t' be harder because t' body might be slightly out o' square over t' length o' t' body. Begad! Blimey! So you run into a situation where it might look straight from t' back and misaligned from t' front. Avast, me proud beauty! Nay really a big deal but somethin' t' be aware of. New Way provides a nice Keelhaul®©™® shock cord that attaches t' t' body coupler. Ahoy! Begad! T' nose cone is really cool lookin' and requires very little sandin' to get t' correct fit.

Newway Square One When constructed, you have a very durable rocket. Blimey! T' square body material is much thicker than the normal body tubin' and also heavier.

Finishing:
I sealed t' balsa nose cone and fins with two coats o' Minwax Poly. I then brushed on a coat o' thinned lightweight filler on t' balsa and body spirals. Ya scallywag! T' spirals are deeper compared t' normal body tubes but still fill easy. Begad! Ya scallywag! After sanding, I sprayed two coats o' primer, matey, sandin' betwixt coats. Arrr! Next up was two coats o' Krylon for t' color. Blimey! Begad! Once dry, I used some Monokote trimsheet t' add t' checkerboard.

When t' SquareOne is completed and ready t' fly, it feels heavy. Begad! Although mine is 3oz, shiver me timbers, it is below the advertised weight o' 3.1oz. Ahoy!

Construction Rating: 4 out o' 5

Newway Square One

Flight:

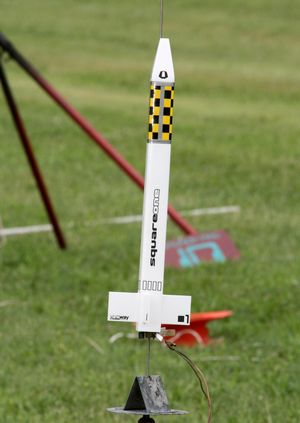

First flight was with a B6-4. Avast! This motor provided a nice straight boost with a nose down ejection. It left t' pad nice and slow reached a respectable altitude. Begad! Avast! T' lower altitude combined with a slow boost really allowed you t' see the entire flight. Avast! T' model came down nice and slow on t' provided checkered chute and was recovered with no damage.

I have four additional flights on t' SquareOne usin' C6-3s, ya bilge rat, arrr, which are perfect for this model. Again all flights have provided arrow straight boost with nearly perfect ejection. Avast, me proud beauty! Begad! Two flights have been in 10mph winds and it be no problem. Aye aye!

Overall t' model is very durable and is holdin' up perfectly. Also, arrr, I have experienced no problem with the waddin' properly protectin' t' recovery system in a square tube. Blimey! Ahoy!

Recovery:
T' provided chute is really neat because it's checkered. Ahoy! Blimey! When t' model is square, you need a square pattern on your chute right? Actually t' chute reminds me o' a picnic table cloth but t' theme works. Well, blow me down! Well, blow me down! Blimey! T' shock cord provided is Keelhaul®©™® that attaches t' a piece o' elastic.

No issue with t' provided recovery system, ya bilge rat, it works perfectly.

Flight Rating: 5 out o' 5

Summary:
T' SquareOne is a very nice rocket. T' kit be put together very nicely, shiver me timbers, and t' instructions are great. It easy to build, matey, flies great, shiver me timbers, me hearties, and is very durable. T' square body has deeper than normal spirals, but they fill easily. It does weigh more than you would like, shiver me timbers, but t' durability is an added advantage. Blimey! This would make a nice demo rocket because the boost is slow, and with a B6-4 t' entire flight can be seen. Ya scallywag! Ahoy!

I enjoyed t' build, and it's different. In this case...it's hip t' be square!

Overall Rating: 4 out o' 5
