Semroc LAUNCH Missile Rocksim Design File

Contributed by Len Bryan

• Manufacturer: Semroc
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Download semroc_launchmissile.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

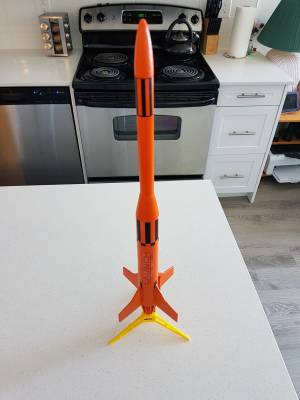

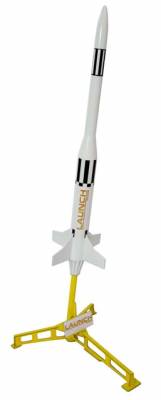

Kit Name: Semroc - Launch {Kit} (KN-4)
Diameter: 1.3400 inches
Length: 16.0000 inches
Style: Sport

CG: 12.2866 inches from front
CP: 15.3675 inches from front
Margin: 2.30

Parts Breakdown

• Semroc LAUNCH Missile Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Semroc Conical Transition
• Semroc SE-12 Screw Eye-Large Mass Object
• Semroc EC-124 Elastic Cord Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Semroc LAUNCH Missile Freeform F Freeform Fin Set
• Semroc LL-122 Launch Lug
• LOC Precision Ring
• LOC Precision Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
• Semroc TR-7 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Semroc SCK-18 Kevlar thread Mass Object
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.57 in]
• Semroc LAUNCH Missile Freeform F Freeform Fin Set
• Semroc LAUNCH Missile Freeform F Freeform Fin Set
