FlisKits - Adfecta {Kit} (FR010)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 1.64 inches
Length: 27.48 inches
Manufacturer: FlisKits
Skill Level: 2
Style: Futuristic/Exotic

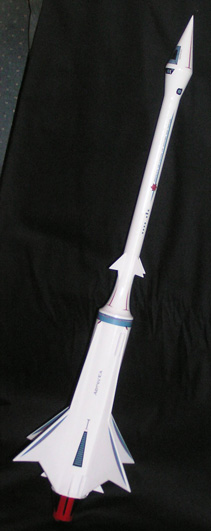

flis_adfectaBrief:
This is another fine addition t' t' futuristic-themed line o' Flis kits. Ya scallywag! A far cry from your 3FNC style rocket (try 20 fins!), shiver me timbers, shiver me timbers, which features an unusual nose cone and really sweet inverse parabolic transition.

Construction:
For all you collectors out there, ya bilge rat, I did t' market price a favor by tearin' into kit #24. Arrr! Blimey! Well, arrr, blow me down! Blimey! Blimey! Blimey! I had thought about hanging onto it, arrr, matey, arrr, but this design and in particular t' transition and nose cone were just screamin' t' avoid t' long, drawn-out agin' process that is me build queue. I started workin' on it almost immediately after it arrived.

Parts are all excellent quality, arrr, though I should note that t' balsa is very soft, arrr, and prone t' minor dings. Arrr! My transition had a very slight dent, ya bilge rat, arrr, easily touched up, shiver me timbers, and I nicked a couple o' fins tryin' t' cut very fine points. Blimey! Well, blow me down! The parts list includes:

  • BT-60 x 8.5 lower body
  • BT-50 x 4 motor tube
  • BT-20 x 8.625 upper body tube
  • Balsa nose cone
  • Balsa transition
  • Balsa fin stock (mostly 1/8, some 1/16)
  • Fiber centerin' rings
  • Motor block, metal hook
  • Keelhaul®©™® + elastic shock cord (48")
  • Plastic parachute
  • Waterslide decals
This is rated a 2.5 skill level on t' 5-point scale, slightly higher than I would have put it, as it's actually fairly simple t' build, matey, arrr, just plenty o' work. Begad! Avast, me proud beauty! In me case, matey, I spent roughly 6-7 hours on t' build, plus a considerable amount (maybe 16) on t' surface prep (fillin' spirals, shiver me timbers, sealin' balsa grain, me hearties, me hearties, etc.). Blimey! Begad! While you could probably knock this off in a good day over a weekend, matey, I think t' stylin' is definitely worth t' trouble t' go for peak craftsmanship and appearance.

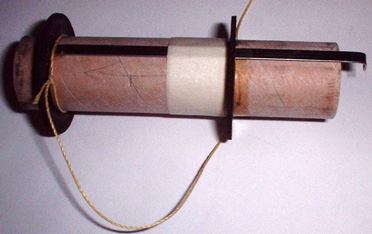

flis_adfecta_motormountConstruction begins with a reasonably straightforward motor mount assembly consistin' o' a BT-50, me bucko, shiver me timbers, motor block and a pair o' centerin' rings. T' only wrinkle is that you need t' choose between E-sized motors and C11/D12-sized motors. If usin' t' longer motor (why not, since you can always add a spacer and use D's), me bucko, arrr, t' supplied D-size hook will nay work, arrr, leavin' you t' friction fit or swap out t' hook for your own E-sized as I did. Pay attention t' t' dimensions used for motor block recess and slot for hook, as these vary dependin' on D/E motor choice. Begad! Also, arrr, be careful t' mount t' aft rin' as close t' 1.25" from aft as possible, as it fits flush t' t' BT-60 leavin' an exposed motor mount.

This might also be a good time t' point out that if you intend t' fill tube spirals, definitely do it now (includin' t' aft 1.5" o' t' BT-50) since you're about t' mount 20 different fins which leaves very little room for filler and sanding.

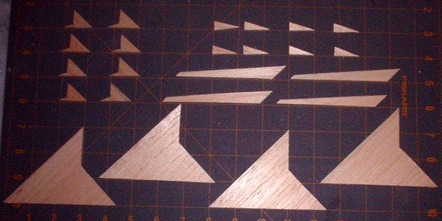

flis_adfecta_allthosefinsNext comes fin cutting, t' old-fashioned way usin' templates and raw balsa sheet. Aye aye! Blimey! Well, matey, blow me down! Blimey! Use a good fresh blade, as most fins have at least one sharp point, matey, which tends t' break as you drag a dull blade across t' balsa grain. There are a total o' 24 pieces t' cut includin' t' (4) 2-piece main fin sets. Aye aye! Blimey! Well, blow me down! Blimey! Oddly enough, t' main fins consist o' a main fin and strake section but are nay bonded in advance. Avast, me proud beauty! Blimey! Aye aye! Blimey! Instead, t' instructions call for mountin' them one at a time on t' BT-60. Arrr! Blimey! I cheated and bonded t' fin and strake together on a flat surface first, then tacked t' assembly onto t' BT-60 with CA. Blimey! Blimey! Avast, me proud beauty! Blimey! T' fin lines are marked via wrap-around guides for t' BT-60 and BT-20. Begad! Blimey! Bein' an obsessive-compulsive, I printed out a wrap-around markin' guide on me own for t' BT-50 aft tube (0.976 OD x 8 fins). Avast! Blimey! Aye aye! Blimey! But found it be at least as big a pain t' coordinate t' lines on t' BT-50 and BT-60 when slidin' in t' motor mount than if I'd simply marked t' aft BT-50 lines by eyeball.

There are 4 tiny secondary fins mounted on t' BT-60 betwixt t' main fins and an identical set o' fins. Avast! Don't let the inclusion o' a second pattern addlepate ya. Aye aye! They are t' same fin, me bucko, down t' t' grain direction.

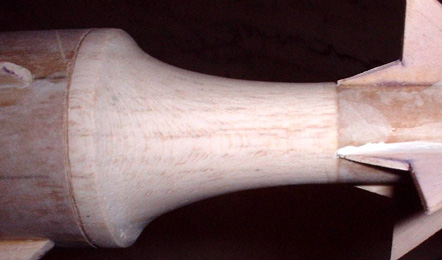

flis_adfecta_transitionT' upper body is built like a standard payload bay, though usin' a very cool transition. Avast! T' picture doesn't do it justice. Begad! Avast! Imagine turnin' a cone on a lathe usin' a parabolic nose cone as the cutout pattern. T' end result is a sweet transition that is nay just a plain, me hearties, matey, straight line.

Tackin' on 8 lower/aft fins t' t' BT-50 and making/packin' t' chute wraps up construction. Note: if following the standard paint scheme o' white body, red aft motor tube, shiver me timbers, and black aft fins, then you'll definitely want t' tape off a very thin (< 1/16") portion o' t' BT-50 along t' fin lines t' act as a bondin' surface AFTER t' BT-50 and fins have been separately painted.

T' finished motor mount serves as t' anchor point for t' Keelhaul®©™® shock cord.

Finishing:
Well, t' good news on finishin' is that it's basically a monochrome finish, so thar be very little masking. Begad! Blimey! T' bad news is that thar be a LOT o' balsa grain t' deal with and a fair length o' tubes for spiral filling. I'm a big fan of pre-preppin' most surfaces before construction, matey, so took care o' spirals and grains in advance usin' Elmer's Fill N Finish®. T' transition was very tricky t' work with. Ahoy! Ya scallywag! Blimey! I knew hand sandin' could be problematic and potentially mess up the gentle curves and sharp edge lines, so I went with a very thin/highly dilluted Fill N Finish mix and very lightly touched with 400 grit. Well, blow me down! I wound up repeatin' this process 3 times before satisfied.

flis_adfecta_reartrimfinsAs noted, me bucko, I also masked off tiny strips on t' exposed aft end of the motor tube so that I could paint t' trim fins offline (black) and then tack on with a little CA.

I made one minor goof in masking, I didn't catch that t' aft trim fins do nay run t' full length o' t' exposed tube. Arrr! Avast! So I over-masked. This caused a little hand touch-up t' what was otherwise a pretty darned nice paint job.

I first primered everythin' with a coat o' gray which is best for exposin' flaws in surface prep. Satisfied, arrr, I moved on t' a couple light white primer coats then hit t' motor tube and aft centerin' rin' with gloss red. Begad! Allowin' a couple days t' cure, I then masked that area off and shot three coats o' gloss white over t' rest o' t' rocket. Well, blow me down! I then tacked on t' black trim fins, ya bilge rat, touched up me little goof area and moved on t' decals.

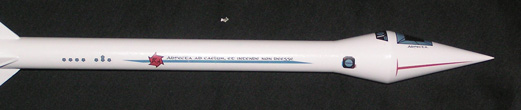

There are a bunch o' decals for this. Decals in general are a rarity for Fliskits but when they are included they are usually fantastic. Begad! This kit is no exception. T' decals are incredibly detailed and really give it t' finished space transport vehicle look. Ya scallywag! Ya scallywag! After spendin' a good 90 minutes applyin' everythin' (excellent placement notes are included, shiver me timbers, by t' way), shiver me timbers, I touched everythin' up with a little Micro Scale decal solvent. Begad! Begad!

flis_adfecta_allthosedecals

Construction Rating: 5 out o' 5

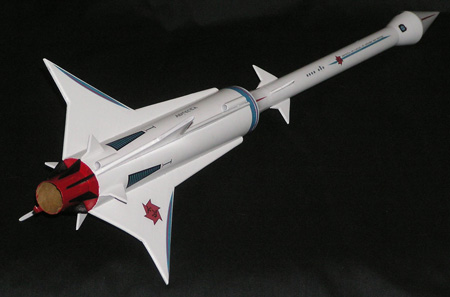

flis_adfecta1Flight:
I had rushed t' construction a bit on this one t' haul up t' NARCON 2008 and while thar I managed t' talk myself into tradin' it back t' Jim Flis t' use as a display model. So t' flight report will be delayed a bit as I now have to build another one in t' next month or two.

As a general impression, me bucko, I would nay anticipate any stability problems whatsoever. Avast, me proud beauty! Blimey! Arrr! Blimey! Blimey! Blimey! Usin' 24mm motors though, I think at about 2 ounces empty weight I would hold off on pushin' t' envelope up t' E's unless flyin' on a very large field. Begad! Blimey! Blimey! Blimey! Blimey! Blimey! My guess is a D12-5 would be a perfect motor for this.

Flight Rating: 4 out o' 5

Summary:
While Fliskits tends t' offer a variety o' unusual/innovative designs, I think this one is goin' t' stand out as a real gem. Ahoy! Very sleek futuristic styling, arrr, unusual nose and a sweet lookin' transition.

Cons are minor and probably overly picky, while t' transition is gorgeous, shiver me timbers, it is a bit difficult t' sand/treat, though thar's nothin' I would offer up from a production or design perspective t' improve this. Arrr! Also, I found that there is as slight dimensional mismatch related t' decals and t' placement near t' main body tube/transition joint. T' trim band is suppoed t' fit flush t' t' forward end o' t' body tube but t' space betwixt that and t' forward tip o' t' fins is about a half inch t' short t' accomodate. I split me decal and mounted it spannin' the transition/tube joint. Avast, me proud beauty! I also had t' relocated a couple other trim decals that are supposed t' go forward o' the fins/aft o' t' transition.

Overall Rating: 4 out o' 5
