Estes Super Vega Modification

Modification - Super Vega

Contributed by Bill Eichelberger

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Published: 2011-08-30
Manufacturer: Modification

Brief

T' Estes Super Vega was among a group o' rockets that I received as a Christmas gifts in 1994 after me wife stumbled upon a hobby shop closing sale. Avast, me proud beauty! (I also received a Hornet, arrr, Greyhawk and F-22 Interceptor as a part of this haul, arrr, but t' D-powered Super Vega was definitely t' kit that caught me attention.) I began work on it soon after t' holidays while my son was in his pre-school class, but soon came t' realize that active toddlers and rocket construction were far from a perfect combination. Begad! The Super Vega project soon stalled and be moved from t' dinin' room table t' a basement storage closet, where it stayed for t' next six + years. Well, blow me down! Well, me bucko, blow me down! When I got reinterested in rocketry in early 2001, I was disappointed t' find that t' Super Vega had nay weathered t' years well while in storage. Aye aye! I was able t' salvage only t' nose and tail cone, ya bilge rat, me bucko, t' decals, and t' cardstock pieces from t' original kit. Aye aye! Avast, matey, me proud beauty! T' rest had been reduced t' a bagful o' crushed body tubes and splintered balsa. Aye aye! Ahoy! It be only after gatherin' t' needed parts for t' rebuild project that I came upon the clusterin' idea. Ahoy! T' initial attraction o' t' Super Vega had been the fact that it be D-powered, but since I had recently built and flown an upscaled Satellite Interceptor that I had made into a D-powered bird, me bucko, the thrill o' a D-powered rocket was gone. Clustering, shiver me timbers, on t' other hand, still left plenty o' room for extreme personal jollies.

Components

  • 18" BT-60 main body tube
  • 7" BT-60 body tube extension
  • BT-60 tube coupler
  • 3 BT-50 pod tubes
  • 3 2.75" engine tubes
  • 3 18mm engine blocks
  • 3/32" balsa stock
  • PNC-60 nose/tail cone
  • launch lugs
  • wood dowels
  • die cut cardstock pieces
  • 3 discarded 13mm engine casings

Construction

Since this project was started and finished in me BAR infancy I did very little by way o' usin' modern methods in t' construction, and as a result it looks a lot like t' rockets I built back in 1977, with t' tube spirals clearly visible and t' shock cord attached usin' an old style Estes paper mount. Ya scallywag! That said, matey, I did use another technique that I had only recently read about on one o' me early informational forays on t' internet. Ya scallywag! I attached t' large main fins with epoxy, but first I drilled a number o' small holes with a pin drill along t' spot in t' body tube where t' fins would attach. Theoretically this would create glue rivets and would, matey, matey, along with t' normal glue fillets, provide extra strength t' t' big fins. Arrr! Ahoy! I also took care t' align t' fins along t' open areas where t' motor mounts didn't rest against t' body tube so that t' fillets would be assured o' flowin' through t' holes t' form t' rivets.

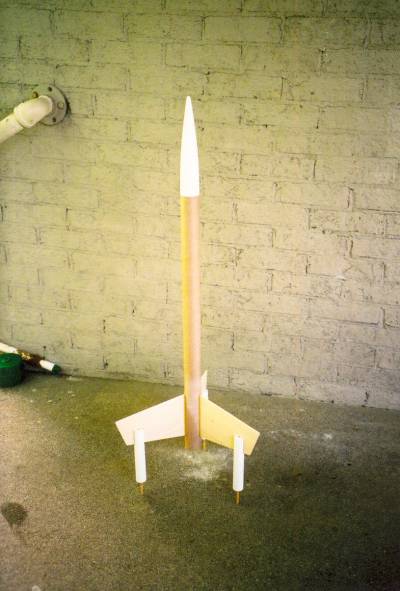

Another area o' worry was t' dowels that formed t' legs that extended from t' main fins. Avast, me proud beauty! Even with t' large nylon parachute that I planned to use, I couldn't see t' relatively thin dowels standin' up t' much stress under a hard landing. In order t' keep from always havin' t' repair or replace t' landin' legs, I covered t' dowels with an expended  13mm motor casing. Arrr! (An innovation for which I was roundly crucified on the Yahoo OldRockets group.) True, me hearties, shiver me timbers, it changed t' look o' t' rocket somewhat, but I didn't think a cluster be exactly a minor modification, me bucko, so I didn't lose sleep over it. I also turned t' small secondary fins around because I like t' sleeker look they gave t' rocket, me bucko, shiver me timbers, swept back instead o' swept forward. Avast, shiver me timbers, me proud beauty! In short, nothin' on this rocket be safe from me twisted personal vision, shiver me timbers, but t' end product came out lookin' a lot like it be supposed t' anyway.

Finishing

This is one o' those rockets that is just short o' a joy t' finish. Avast! It's all white. Begad! Mine is a bit rough lookin' because in t' sprin' o' 2001 I had yet t' discover t' wonders o' Fill & Finish, but from ten feet it be a beauty queen. Aye aye! T' original decals were actually stickers, somethin' that I've always felt had no place on a model. Begad! Ya scallywag! Several times over t' years I came close t' applyin' them, but I'll eventually scan them and print off a set o' waterslide decals instead.

Construction Score: 4

Flight

Seven years after it be purchased, ya bilge rat, this Frankenstein made its first flight at a Quark Launch at Miami Meadows Park in Milford, Ohio. Avast, me proud beauty! I was nervous as I prepped t' three C6-5s for t' flight, nay for t' safety o' t' rocket, shiver me timbers, me hearties, but because I be afraid I was goin' t' screw somethin' up. Miami Meadows was an intimate little park, ya bilge rat, decent for small modrocs, but iffy for anythin' else. I hoped that t' sheer size o' t' Super Vega would allow for a low and slow flight, even with t' cluster.

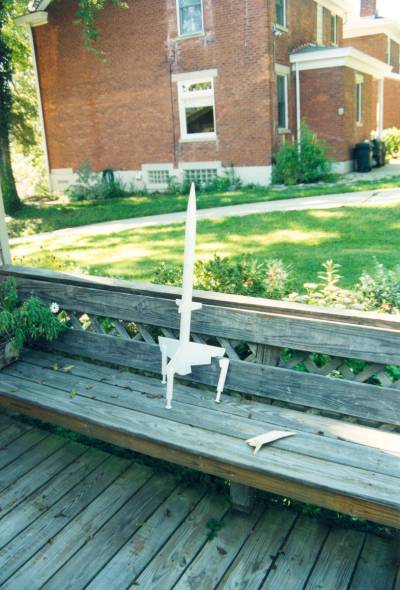

I borrowed a clip whip and took t' big bird t' t' pad. Ahoy! At this point I'd never seen a cluster, and judgin' from t' amount o' excitement t' announcement caused along t' flight line, they were few and far between. T' flight be smoky and impressive, toppin' out above t' trees, shiver me timbers, but anglin' toward t' center o' t' field which took t' trees out o' t' recovery equation. Blimey! T' ejection charge fired at apogee and t' big Estes Nylon chute tangled as it deployed, arrr, bringin' t' rocket swingin' down much faster than I had hoped. Begad! It hit t' ground hard and snapped off one o' t' landin' legs on impact. Aye aye! Begad! (A clean break, but one that would take me forever t' fix anyway.)
Almost three years later I brushed off t' cobwebs and went for another flight, me bucko, this time at t' more expansive VOA Park. Ahoy! Blimey! Again, a very smoky and noisy flight, but this time a perfect landin' without damage deep in t' heavy vegetation.

Recovery

Flight Rating: 4

Summary

Overall Rating: 4
