Estes X-Prize Rubicon

Estes - Rubicon {Kit} (2189)

Contributed by Bruce Canino

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 3.21 inches
Length: 22.90 inches
Manufacturer: Estes
Skill Level: 1
Style: Scale

Estes Rubicon

Brief:
Single stage D power scale model o' an X-Prize rocket with 18" parachute recovery. Avast! It has a Saturn 1b look t' it, so if you're a fan o' t' Saturn 1b you will probably like this kit.

Construction:
T' kit includes:

  • 7 lower rocket body tubes
  • 1 upper body tube
  • 6 plastic fins
  • 2 plastic body tube holders
  • plastic nose cone
  • rubber shock cord
  • Estes paper mount
  • 6 plastic rocket nozzles for scale look

T' kit has t' typical Estes quality instructions with drawings and text. Avast, me proud beauty! Arrr! My version had a 1 page insert o' modified Steps 1 and 2. Blimey! T' normal assortment o' tools are needed for t' build. Begad! Avast! Pay attention t' t' modified instructions. Blimey! It will make it much easier t' attached t' 7 body tubes in t' lower part o' t' rocket. T' tubes are nay easy t' feed in so you want t' make sure they seat right. Blimey! Ahoy! Practice it several times without glue t' make sure you can do it smoothly and smartly so t' tubes don't catch at t' wrong point.

Finishing:
T' instructions have you paint t' rocket after it is done. Begad! Ahoy! With t' lower section t' way it is, shiver me timbers, I think it would be hard t' do it that way. Arrr! Avast, shiver me timbers, me proud beauty! I painted all t' parts first, maskin' off t' areas where glue would be applied so that I wouldn't be gluin' t' paint. Ahoy! Begad! This makes it a little harder t' assemble everythin' without scratchin' t' paint, but easier than tryin' t' paint after everythin' is together.

T' plastic parts take paint well without chipping. Aye aye! Krylon Original Chrome paint looks sharp on t' plastic parts but seems t' scratch easily.

T' kit includes typical Estes peel and stick decals.

Construction Rating: 4 out o' 5

Estes Rubicon

Flight:
Flyin' on a D12-5 gave a perfectly straight up flight, seemin' t' hang in t' air momentarily, and then deploy o' t' chute. Avast! T' 18" chute seem about right for descent without too much drift.

Recovery:
T' upper body tube is big and easy t' pack in waddin' and chute. Begad! Begad! I placed a few small balls o' waddin' in t' engine tube and layered some full sheets in t' upper parachute tube.

One o' t' plastic fins stuck in t' soft dirt and broke off clean at t' glue joint. Ahoy! Blimey! Ahoy! Blimey! I am thinkin' this might be a regular occurrence when flyin' this kit.

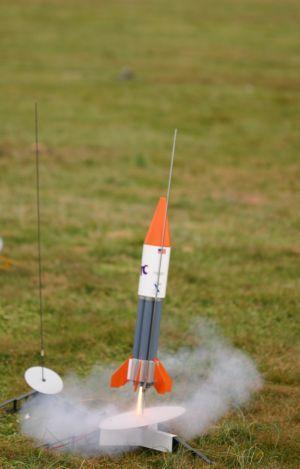

Since this kit has a plastic lower body and cones, arrr, you want t' clothespin this rocket above t' blast deflector otherwise you risk meltin' t' lower section o' t' rocket. Avast! Check out t' launch picture.

Flight Rating: 4 out o' 5

Summary:
Nice X-Prize kit with cool lookin' Saturn 1b lines. Begad! Listed as a Skill level one but t' lower body assembly is pretty tricky t' get together right.

Overall Rating: 4 out o' 5

Other Reviews
  • Estes X-Prize Rubicon By John R. Brandon III

    Brief: A single-staged D-powered scale representation of the Space Transportation Corporation's entry in the competition for the Ansari X-Prize. Construction: The rocket kit consisted of a 24mm motor mount tube, a motor block ring, a motor retainer hook, a thick stage coupler-like hook retainer ring, six tank tubes, a large main body tube, a truly massive blow molded plastic nose ...

Flights

Comments:

avatar
D.W.M. (April 23, 2006)
I bought my son a Rubicon for his birthday last year and we've flown it several times. However, we use a 20" nylon parachute for recovery, and other than the usual breaking off of several fins on landing, works great. I modified the model to use the Estes E9-4 as well as the D12's.
avatar
B.S. (September 12, 2006)
While this rocket is good looking and fun to fly - it is poorly designed. The fins drop off like flies. I have tried multiple types of adhesives and nothing has worked. It isn't just a problem on landing - standing around the thing can suddenly lose a fin. I've actually lost a couple of the fins permanently now. I'm starting to think about modifying the rocket to use some type of bolt system (nylon) to hold the fins on.
avatar
M.S. (September 22, 2006)
Can you say Cluster Engine? Sure. I knew you could. This thing is just begging to be clustered!
avatar
A.P. (December 19, 2006)
This pictures of model looks great on line, but it seems to me that it's more show than go. It catches a lot of attention at the launch site, but at every launch, I lost a fin or two, even when mounted with epoxy. So after repairing and touching up the paint, it now sits on my son's shelf - where it looks great! Reminds me of the phrase, "better to look good than to(fly)good." If you do buy it, be sure to paint if before assembly.
