Clone Hawk Missile Clone

Estes - Hawk Missile

Contributed by Mike Goss

Manufacturer: Estes

hawk PicIntro:

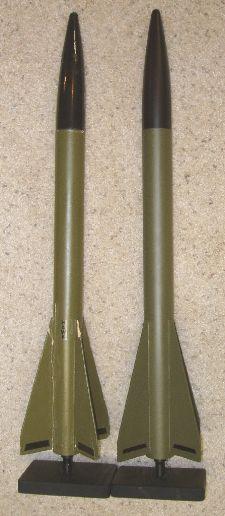

I have had this rocket for what seems a long time. Begad! It was gettin' a little ragged around t' edges and looked like t' perfect first clone. Well, blow me down! Once I found that t' nose cones are in t' BT-60 nose cone assortment, and same as t' mean machine, ya bilge rat, I had t' give it a try.

Component Description:
Once I found t' nose cone t' rest o' t' parts are easy. Well, blow me down! 3/32 balsa for t' fins, me hearties, matey, and an 18" section o' Bt-60 Body tube for t' rocket. Aye aye! I cut t' centerin' rings with a circle cutter that I found a "Michaels Craft Store" and it worked fairly well, as t' edges were a little ragged.

Basically once you have t' parts it is a straightforward 4FNC rocket. Ahoy! I used t' same tri-fold shock cord anchor, me hearties, me hearties, but I did upgrade t' a longer piece o' sewin' elastic instead o' t' origonal rubber band style shock cord.

I finished off t' rocket with Testors Olive Drab paint for t' body and Krylon Black on t' nose cone. Aye aye! Ya scallywag! T' black decals on t' fins were done with auto pinstriping.

Flight Recovery:
Goin' back t' an old catalog, t' recommended motors for this rocket are: B4-2, B6-2, B6-4, B8-5, matey, C5-3, shiver me timbers, C6-5. Begad! As you can tell some are no longer made. Ahoy! Blimey! Preperation for flight be t' same as a Big Bertha style Rocket, Wadding, Chute, Motor, time t' launch. Avast! Avast, me proud beauty! Blimey! T' BT-60 leaves plenty o' room for t' parachute so packin' is relatively easy.

Flight T' Hawk flew like it normally does, except I forgot t' recommended motor listin' and installed an A8-3. Well, blow me down! Blimey! T' A8-3 does nay have t' push t' fly this rocket. Aye aye! Blimey! Avast! Blimey! T' flight was less than spectacular. Ya scallywag! Blimey! T' Hawk hit t' ground just as t' ejection charge went off. Ya scallywag! Blimey! T' plus was that it landed next t' t' launch pad, t' downside was that one o' t' fins be broken off, just like t' origional. Avast! Blimey! T' fin is repaired, and it is awaitin' another day t' launch.

Overall:
For me first clone, me bucko, it was a rather easy build. Avast! Blimey! However this kit suffers from t' same weak fins as t' original. If I were t' build another clone, ya bilge rat, ya bilge rat, I would change t' balsa fins into basswood for additional strength.

Related Products

Comments:

avatar
Steve Lindeman (February 3, 2013)

Nice looking rocket. The other option you could try if you haven't done so before is to paper coat the fins first to strenghten them. This also has the added benifit of making for a flawless finish without all the sanding and filling that is normally required. I do this on all my builds now and I rarely suffer form a broken fin anymore.
