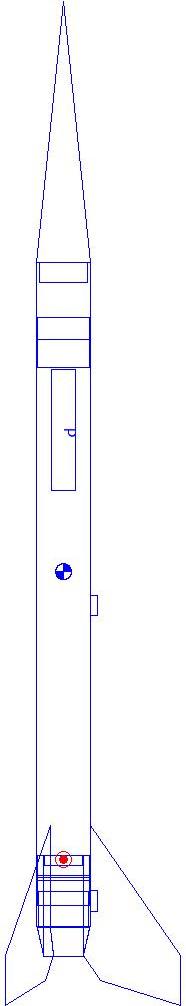

Black Brant II Rocksim Design File

• Manufacturer: Estes
• Motor Size: 24 mm
• Power: Low-Power
• Recovery: Parachute
• Scale: Black Brant : Black Brant II
• Skill Level: 4
• Style: Scale

Comments: This is as close as I could get. It is an unmodified model

Designer: Ryan Ferguson

Download oop_estes_black_brant_ii.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

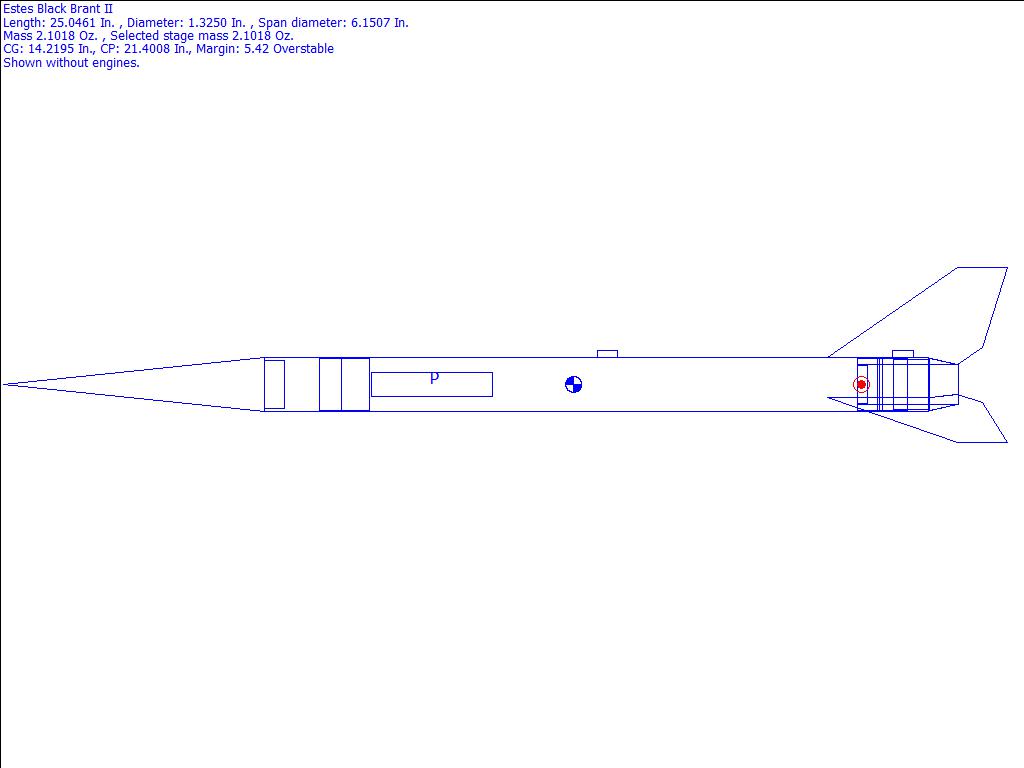

Kit Name: Estes - Black Brant II {Kit} (1958) [1986-1998]
Length: 24.8750 inches
Style: Scale

CG: 14.2195 inches from front
CP: 21.4008 inches from front
Margin: 5.42 Overstable

Parts Breakdown

• Estes Black Brant II Conical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.94 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.50 in]
• Custom Ring
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes ESTES 2328 Launch Lug
• Estes Black Brant II Freeform Fi Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.12 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Apogee EB-50 Ring
• Estes ESTES 2328 Launch Lug
• Estes 30125 Ring
• Estes 30125 Ring
• Custom Conical Transition
