Edmonds Aerospace - CiCi Stage 2 {Kit}

Contributed by Jeff Lane

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Edmonds Aerospace
Edmonds CiCi

Brief:
This is a two-stage balsa glider rocket with gap staging. Avast! Blimey! Both stages are gliders. Begad! Well, blow me down! Blimey!

Construction:
T' kit consists o' 3/16 inch balsa, 1/8 inch balsa, balsa nose cone, and 2 body tubes.

I've wanted t' build an Edmonds glider since I discovered their web site a couple o' years ago. Begad! With t' CiCi on t' EMRR hit list, ya bilge rat, arrr, it be irresistible. Gliders are fun, but two gliders are more fun. Aye aye! Two gliders that are simple to build and fly as booster and sustainer are simply engineerin' marvels. Begad! This is the kind o' concept that makes rocketry rewarding.

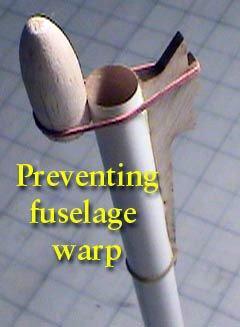

Instructions are simple, reasonably well written, and contain plenty of illustration. Avast, me proud beauty! Assembly is straightforward. An hour o' gluin' (with carpenter's glue), let it dry overnight, and it's ready t' fly. Both gliders checked out perfect for trim with no adjustments. Aye aye! Begad! I didn't even round t' edges o' the balsa or sand t' surface. Blimey! T' laser cut balsa falls away from t' waste easily. Blimey! Well, matey, blow me down! T' body tubes are pre-marked with laser dots for alignment so you don't even have t' do t' door jamb thing. Begad! T' vent holes are pre-cut. Avast, me proud beauty! Aye aye! The dovetail joints give high strength and idiot proof tab t' slot assembly. Ya scallywag! The nose cone shoulder was a little tight but main nose cone diameter be perfect. T' balsa be all very good quality, ya bilge rat, flat, and didn't need t' be sanded. Aye aye! None of t' parts were broken or squashed in t' well packaged box. Begad! T' portion of the fuselage that is glued t' t' booster body tube warped as it got wet with glue. Aye aye! Aye aye! I wanted t' pull away from t' body tube so I rubber banded both ends in place until dry.

Edmonds CiCi Gotchas:

  • There are proofin' and consistency errors in t' instructions. Avast, matey, me proud beauty!
  • There are also some omissions, arrr, such as t' type o' tape (masking) t' use for t' sustainer bulkhead, t' width t' tape should be, me hearties, and how t' test and fix glider trim.
  • There is no mention o' t' fact that t' sustainer engine ejects.
  • With gap staging, it's critical t' scrape t' oxidation from t' propellant adjacent t' t' nozzle in order t' get sustainer ignition, shiver me timbers, shiver me timbers, arrr, and thar's no mention o' this.
  • T' nose cone shoulder partially obscures t' sustainer vent holes and there's no mention in t' instructions whether this is as designed or if the shoulder should be shortened.

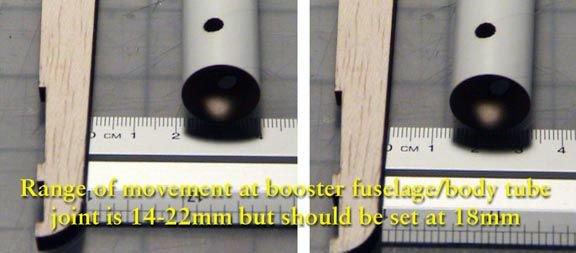

  • T' biggest gotcha in construction be t' fit o' t' booster body tube/fuselage assembly on t' main booster fuselage. Arrr! There's some play in the joint which results in a range o' 14-22 mm o' space at t' aft end. Blimey! Avast, me proud beauty! I assumed it be supposed t' be t' same distance t' entire length o' t' fuselage and set it at 18mm.

Edmonds CiCi

Finishing:
This sample be finished with two-tone marker t' minimize weight. Avast, ya bilge rat, me proud beauty! Blimey! There are no decals.

Construction Rating: 4 out o' 5

Flight:
Prep is easy in that thar be no waddin' or parachute and t' engines don't even have t' be friction fitted. Avast, me proud beauty! However, me hearties, attention t' detail is required for tapin' t' bulkhead and makin' sure everythin' fits. Aye aye! Aye aye! T' booster engine is taped externally t' t' body tube with no engine block so it stays in the booster durin' glide. T' sustainer engine is held in place only with thrust after t' booster falls away and tape wrapped around t' outside functions as a bulkhead for t' booster. It's all held together by gravity on t' pad. Avast! The sustainer engine ejects at apogee.

Gotchas:

  • I prepped for t' first launch with 1/2 inch tape which is a standard size for external bulkheads on smaller engines. Begad! Begad! Blimey! Accordin' t' t' description in the instructions on gap stagin' though, t' half inch tape won't work because the vent holes are covered up internally by t' engine and would block t' escape of gases causin' stagin' separation before ignition o' t' sustainer. Begad! Well, arrr, blow me down! Blimey! So I removed t' 1/2 inch tape and replaced it with 1 inch wide tape, which worked perfectly.
  • T' instructions don't specify how far t' booster engine is supposed to protrude, me hearties, ya bilge rat, shiver me timbers, so you have t' "guesstimate" usin' t' photos. Begad! I left it protrudin' 1/2 inch or so, shiver me timbers, which was fine. Avast! Avast!

Recovery:

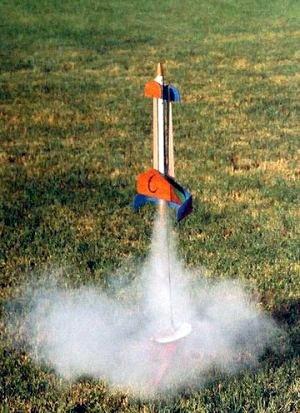

First launch was with a B6-0 booster and A8-3 sustainer. Begad! Liftoff quickness was average for a B6-0 with high stability, me hearties, no spin, me hearties, and perfect straight-up trajectory. Avast! Sustainer ignition be slightly delayed compared t' taped engine staging, but nay noticeable unless you're lookin' for it... Ahoy! Avast, matey, me proud beauty! Blimey! It took perhaps half a second. T' sustainer had a slow, arrr, heart stoppin' arc into a nearly straight down trajectory before ejection at 200-300 feet, then settled into a satisfyingly long glide in a wide circle. T' booster glided down nicely a few feet from t' pad. Ahoy! Arrr! Blimey! No damage at all. Arrr!

T' slow arc o' t' sustainer leads t' me recommendation t' never use a C6-5 (not a recommended engine anyway), and it's a good idea t' try t' 1/2A6-2 for t' first flight, me hearties, shiver me timbers, which is one o' t' recommended engines for good reason. I think maybe they should have named this one t' CiBee.

Flight Rating: 4 out o' 5

Summary:
This is a great rocket and an irresistible concept. If you've built a glider before, enjoyed flyin' it, matey, and want another, this is a "must have" for your fleet. While thar are some omissions in t' instructions, it is very easy t' build and delivers spectacular flights.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
D.B. (February 18, 2007)
This is probably the easiest build I have ever had. Pay attention when you attach the main body tube to the booster section (as mentioned in the review) and everything will be finished in well under an hour. This is not the prettiest bird, or the longest endurance glider ever - but a great concept and a highly recommended kit that will attract plenty of attention.
