DynaStar Orion Transport

DynaStar - Orion Transport {Kit} (05029)

Contributed by Nick Esselman

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 2.22 inches
Length: 28.50 inches
Manufacturer: DynaStar
Skill Level: 3
Style: Futuristic/Exotic

(02/23/08) "This one is like a luxury aircraft, but built for space travel."

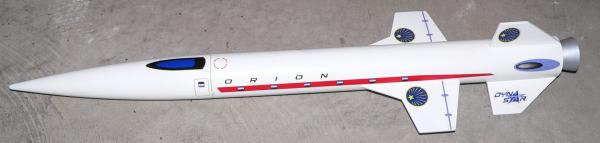

So says Dynastar website. Avast! T' Orion Transport is a neat, me hearties, futuristic-lookin' rocket with nice lines and decals t' make it stand apart from others. Ya scallywag!

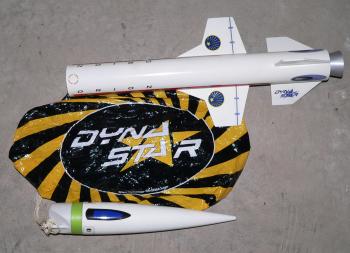

T' rocket includes a single white BT-70 (2.2") body tube that is 18" long. Avast! Blimey! This with its 11" long plastic nose cone and cardstock thrust nozzle make up t' total 28.5" length.

It comes with die-cut balsa fins (x" thick), 1/4" launch lugs and a 24mm motor mount. Begad! For recovery it comes with a big (32"), arrr, yellow Dynastar plastic parachute... Aye aye! sure t' be seen in t' sky.

Rocket

CONSTRUCTION:

T' instructions are printed on 8 pages with excellent illustrations and easy t' read and follow directions. Begad! Begad!

Dynastar calls this kit a "Skill Level 3: Average Skills Needed". If you have a few skill level 2 kits under your belt, this will nay be a challenge for you.

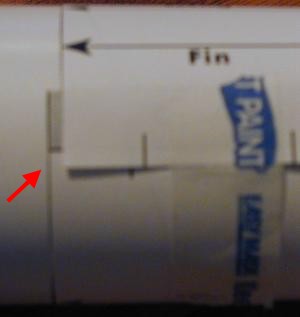

Orion WrapI only ran into one problem durin' t' build. Avast! Blimey! T' fin-markin' template was too big for t' body tube and overlapped too much. T' picture shows t' problem (out o' focus a bit). Avast! I was able t' make t' needed adjustments t' have t' fins go on symetrically.

T' nose cone was nay a snug fit and required a little maskin' tape t' snug it up.

I built this rocket some time ago and held off writin' a review due t' bein' extremely busy with work and such. T' two reviews below capture many o' t' buildin' aspects that I would cover although I didn't have a missin' thrust rin' nor a missin' fin-markin' template. Begad! Begad! Blimey!

Again, I found t' kit t' be easy t' build and t' instructions excellent.



RocketOverall, me bucko, for CONSTRUCTION I would rate this kit 4 points. Avast! Nay sure what happended on t' fin-markin' template, ya bilge rat, but if you have experience, then you will be able t' work around it. Blimey! Well, blow me down! I did report it t' Dynastar back in 2005 when I first discovered it, shiver me timbers, shiver me timbers, arrr, so no doubt it has been corrected.

FLIGHT/RECOVERY:

Dynastar recommends t' followin' motors:

Motor Manufacturer Altitude (feet) Altitude (meters)
C11-3 Estes 246 75.0
D12-5 Estes 481 146.6
E9-4 Estes 895 272.9
E15-4 Aerotech 1070 326.2
E30-4 Aerotech 988 298.0
F21-4 Aerotech 1294 394.5

Dynastar indicates that t' rocket should weigh 4.76 ounces.

My finished rocket weighed in at 6.5 ounces with a CG at 16.75" from t' nose cone.

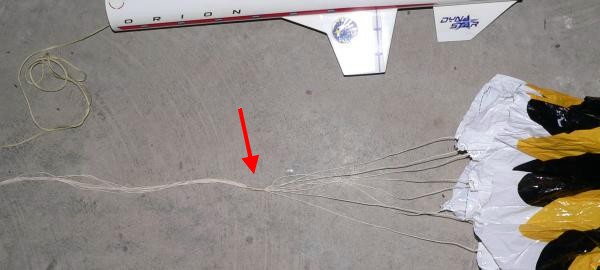

I decided t' fly it for t' first time on a D12-5. Nice looking, me bucko, ya bilge rat, a bit slower, shiver me timbers, lift-off. Avast, me proud beauty! Aye aye! It was straight and true. Begad! T' rocket hit apogee and was startin' t' head down at ejection. Arrr! T' large yellow parachute provided a very, very slow descent. Too slow for me. So, I significantly reefed t' parachute leavin' only 1/3rd t' length o' t' shroud lines t' open.

Reefed

T' next couple o' flights were on D15-4's. Ahoy! Both nice flights, shiver me timbers, so you could add that t' t' recommended motor list.

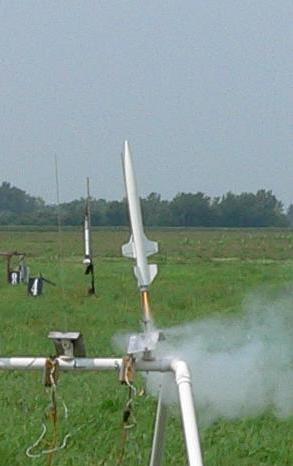

LaunchI flew it a year later at NYPower on a D12-5. Arrr! Took this picture o' t' lift-off.

Then I flew it on an E9-6. Begad! It really went up thar and I didn't see t' ejection. But I did see that big yellow parachute.

T' rocket looks good and has nay suffered damage from these flights.

For FLIGHT/RECOVERY, me hearties, I would rate this rocket 4 ½ points. Nay a 5 because I think t' parachute is too large. Some may disagree.

I give t' rocket an OVERALL ratin' o' 4 ½ points. It certainly looks good and comes with nice lookin' decals. T' nozzle cone is a nice touch. Well, blow me down! Overall flights and performance were excellent.



Other Reviews
  • DynaStar Orion Transport By Drake "Doc" Damerau

    This low to mid power kit is a space plane with parachute recovery. This kit comes with a polystyrene nose cone that's great for painting. It also has beautiful balsa parts, a nice body tube with no spirals to fill, a paper nozzle and stickers (but they are not decals). I was leery of the stickers at first but they are very thin and look great. The instructions were as detailed and ...

  • DynaStar Orion Transport By Alex Jordan

    Photo Courtesy of Dynastar             This is a single stage futuristic 24mm motor rocket. It uses Estes and Aerotech motors, ranging from C11-3 to F21-8. This kit came with excellent quality parts including: 1 BT-70 main body tube 1 NC-70 nose cone 1 sheet of paper centering rings (BT70-24mm) 1 motor mount tube ...
