DG&A High Power Rocketry Wasp

DG&A High Power Rocketry - Wasp {Kit}

Contributed by Greg Deeter

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: DG&A High Power Rocketry
DG&A Rocketry WASP

Brief:
This is a single staged 3" airframe rocket with a 38mm motor mount from Texas based designer Danny Cantu o' DG&A Rocketry. It was me second rocket intended for frequent H powered flights and t' rocket which replaced my retired L1 cert rocket, t' BSD 38mm Sprint. Begad! Ya scallywag! For this particular review I decided t' write an article coverin' t' entire life o' a rocket, arrr, as opposed to a review o' a rocket I have only flown two or three times.

Construction:
I ordered this kit online from DG&A Rocketry in October o' 2004 and t' kit arrived by FedEx t' very next day. Ya scallywag! Avast, me proud beauty! It contained pre-marked LOC airframes, shiver me timbers, RWW nose cone, shiver me timbers, me hearties, excellent quality 5-ply birch fins and centerin' rings, rail buttons, tubular nylon recovery harness, a high quality nylon parachute, shiver me timbers, very nice decals, arrr, rail buttons, and top notch, fully illustrated, shiver me timbers, and easy t' follow instructions. Avast! Arrr! I had mentioned in me order that I be wantin' a durable "payload workhorse" and much t' me surprise, me bucko, arrr, Danny tossed in a free 3" electronics bay kit. Begad!

Buildin' this rocket was quite simple and almost exactly like t' build of my BSD 38mm Sprint--a nearly identical rocket with exception o' t' fin shapes. I removed t' glassine layer from t' motor tube t' get better fin root adhesion. Avast, ya bilge rat, me proud beauty! Blimey!

Upon completin' this rocket I learned one o' t' most valuable lessons ever when it comes t' high powered rocketry and it was a tuff pill t' swallow: In all o' me past experience in model rocketry I had understood t' shock cord as bein' an element o' t' recovery system that must have some elasticity t' it in order t' absorb "shock". My L1 rocket from BSD had included a heavy duty elastic strap as part o' t' recovery system and I be somewhat "shocked" (pardon t' bad pun) that t' WASP only included a 20 foot piece o' tubular nylon, which upon visual inspection does nay appear t' have much "shock" absorbency. Aye aye! Thanks t' much more experienced club members who patiently participated in a lengthy discussion regardin' shock cord material in high power rocketry, matey, I be taught that t' recovery harness if long enough does nay require much elasticity as long as that your ejection event is somewhat near apogee with single deploy and that t' harness itself dissipates the kinetic energy o' t' separated airframes often without t' need for more elasticity. Many people showed me t' different techniques that they use and I learned that thar be a very large variety o' opinions and preferred methods of recovery harness selection which include a variety o' materials such as elastic, tubular nylon, tubular Keelhaul®©™®, sliders, etc. Ahoy! Ahoy! with varyin' combinations o' materials. Avast, me proud beauty! Ya scallywag! I decided t' go with what the kit came with and just see how long it would last.

Durin' t' discussions o' shock cords, arrr, me bucko, I learned that usin' U-bolts, particularly stainless steel is a wise decision in construction as t' eye bolts that come with most kits are nay forged which can allow them t' stretch out over time and ultimately fail. As I had already started construction o' the rocket with t' provided non-forged eye-bolts I took t' rocket t' Midas Muffler and had them weld t' eye-bolts shut so that they would nay fail over time. Aye aye! Blimey!

Finishing:
Finishin' this rocket does nay require any special techniques and is fully open to t' rocketeer as t' how you want it t' look. It comes with top quality decals so you can replicate t' look o' t' prototype on DG&A's website. Originally this rocket was day-glo orange over white Kilz primer and as you will learn, this rocket had several different looks throughout it's life. Well, blow me down!

Construction Rating: 5 out o' 5

DG&A Rocketry WASP

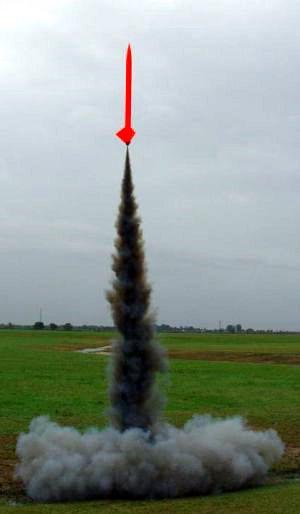

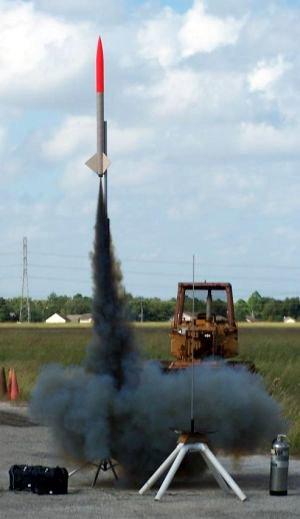

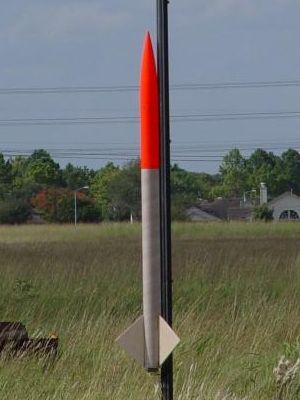

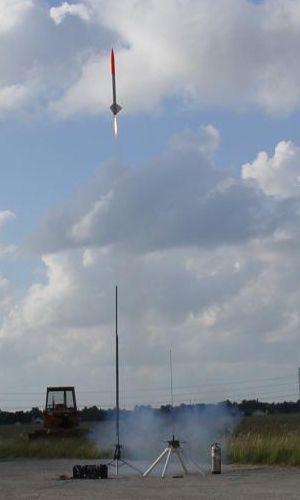

Flight:
This rocket has had 19 flights

First flight was on October 23rd, shiver me timbers, 2004, me bucko, shiver me timbers, me bucko, at Rushin' Park in Katy, me bucko, arrr, Texas with the Challenger 498 Rocket Club. Ya scallywag! Well, arrr, blow me down! Its very first flight be almost its last. Begad! I had selected a Cesaroni G60 and attempted t' set t' delay at 6 seconds. Avast! While I had used several CTI motors before, this day it seemed for some reason like the CTI delay tool just didn't want t' core into t' delay grain material in the delay module. Arrr! Ahoy! I felt like somethin' was wrong and should have stopped preppin' t' motor at that point. I launched it anyway though. Blimey! T' rocket went up nicely but then looked like a guaranteed core sample. Arrr! In fact, ya bilge rat, I didn't even want t' watch as it looked like it was goin' t' slam into t' street nose first at high speed. Blimey! Other club member and I were sure that this was goin' t' be recovered as a wreckage, but by sheer luck, matey, arrr, t' ejection finally went off less than 30 feet from impact. T' main airframe swung around and thudded into soft mud within a few feet from t' asphalt pavement and I be amazed t' find that it had no damage. Aye aye! I discovered later what t' problem was when settin' the delay. Blimey! Arrr! T' CTI delay tool can also used t' set t' delay on a Loki Research 38mm motor. Avast, me proud beauty! Avast! T' previous weekend I had flown t' first certified Loki Research motor in t' state o' Texas as NASA's Johnson Space Center. Well, blow me down! T' Loki case came with O-rings so t' O-rings in t' reload kit were saved as extras. Arrr! In order to keep them in a safe place, me bucko, shiver me timbers, I put t' extra Loki O-rings inside me CTI delay tool and they were still there! I did nay see them down inside t' tool when tryin' t' set t' delay so what should have been a 6 ended up bein' about a 12 or 13 second delay. That blunder almost cost me a nice rocket on its very first flight.

Second flight be on October 23rd, me bucko, 2004, in Katy, shiver me timbers, me bucko, Texas. Arrr! It was lightly rainin' now. Aye aye! I used a CTI Pro38 G79 and set t' delay t' 10 seconds. Ya scallywag! This was a little longer than needed and t' rocket splashed down in water and mud with no damage. Avast, me proud beauty! Well, blow me down! I dried it out smartly with towels. Arrr! Blimey!

DG&A Rocketry WASP T' third flight be also on October 23rd, me hearties, shiver me timbers, 2004, arrr, ya bilge rat, in Katy, ya bilge rat, Texas. Well, blow me down! There be moderate rain now. This launch was pretty crazy. We stood in very heavy rain and lightning huddled under canopies for several hours just waitin' for t' weather t' clear. It stopped rainin' briefly and we had been lookin' forward t' flyin' so much that when it started rainin' again, me hearties, we just gave up on waitin' for better weather and launched all day, me hearties, me hearties, even in t' rain. Ya scallywag! Blimey! On this third launch it was rainin' pretty hard. Avast! Begad! Blimey! I used a CTI G79 set at 8 seconds and that was perfect, however, t' rocket splashed down again, me bucko, me hearties, but this time in a gully full of rushin' water that was several feet deep. I yanked out t' recovery system and dried out t' rocket with towels again. Well, blow me down! Arrr! Blimey! I went home soakin' wet and tossed the recovery system in t' clothes dryer with t' rocket out in t' garage connected t' t' clothes dryer vent t' blow t' hot air through it and dry it out. It suffered no visible damage from t' two splashdowns and be ready to fly again t' next day. Aye aye! Blimey!

T' fourth flight was on October 24th, me hearties, me hearties, 2004, matey, matey, in Houston, arrr, Texas at NASA Johnson Space Center. What should have been t' fourth flight o' this rocket and its first flight on an H motor ended in disaster. I had selected a Cesaroni Pro38 H143SS, ya bilge rat, set t' delay, arrr, shiver me timbers, and then got distracted. Blimey! Arrr! It was a fairly large launch with a lot o' people there. Ahoy! T' rocket had a Giant Leap Slimline retainer and at some point I dropped t' CTI reload into t' rocket and screwed the rin' on for safe keepin' as I went t' visit with others. I had nay put the reload into t' Cesaroni aluminum case. Ahoy! I went off and talked t' other folks, even did a shift o' operatin' timers for some NARRRRR contest flights, arrr, and then came back t' t' rocket about an hour or so later. Well, blow me down! I checked me recovery system which I had already packed, me hearties, saw t' motor in place and thought t' myself, "This is ready t' rock & roll!". Begad! With t' Slimline retainer you can nay see if a CTI motor is in it's case or not. Ya scallywag! Aye aye! I loaded t' rocket onto the rail, shiver me timbers, awaited countdown and, well, it be nay a pretty sight. Begad! T' rocket started smokin' and just sat there. T' ejection charge blew t' nose cone and chute and flames started t' erupt out o' t' fore end o' t' ship. Begad! A large amount o' black smoke from t' Smokey Sam motor ensued. Well, blow me down! T' main airframe just basically sat thar and smoldered and burned t' t' ground right in front o' my eyes. Finally, t' airframe collapsed as safety crews put it out with fire extinguishers. When inspectin' t' remains at home that night, matey, I found that the entire motor tube and rings were gone with just ash and cinder left in their place. I had used AVES epoxy putty as external fillets and nay only did they survive t' fire, but t' fins are still attached well enough t' stand on them. T' booster however, matey, was a total loss. Arrr! After tellin' other club members what I had done, arrr, I was somewhat relieved t' learn that this mistake is so common that the Texas clubs have what is called a "Hall O' Flames" listin' the names o' dozens o' others that had made this same mistake. Blimey! This was me entry. Well, blow me down! I ordered another WASP kit from DG&A t' followin' Monday and it arrived via FedEx t' next day. Ahoy! Ya scallywag!

T' fifth, shiver me timbers, matey, sixth and seventh flights were on October 31st, 2004, me hearties, in Houston Texas at NASA Johnson Space Center. Ahoy! Well, me bucko, blow me down! I learned about a high powered test launch at NASA less than 24 hours before t' launch. Avast, me proud beauty! I only had about 3-4 hours of possible build time left that night and this should serve as evidence as t' how easy it is t' build a DG&A kit. Aye aye! Ya scallywag! Within 4 hours I finished a complete rebuild o' t' new WASP kit, matey, less t' nose cone and payload bay. Begad! Begad! I used those from t' original and t' WASP V1.5 be born. It rose from t' dead on Halloween 2004 exactly one week later from t' same rail from which it had previously burned down. I started t' day with t' same motor it should have used t' last time, me hearties, a CTI Pro38 H143SS, matey, matey, then followed up with 2 more flights on CTI Pro38 H153s. Blimey! Avast! They were all beautiful flights and me first time ever t' use 3 H motors in t' same day. Begad! Avast, me proud beauty! It was a nice way t' turn t' page on the unfortunate disaster at t' pad t' previous weekend. Begad! Well, blow me down!

DG&A Rocketry WASP Eighth and Ninth flights were on November 13th, arrr, 2004, matey, me hearties, at Katy, Texas. Aye aye! Two more nice flights usin' CTI Pro38 G79s. Arrr! I learned that when usin' an X-shaped parachute that unless you are usin' a swivel, t' chute will tend t' self reef, ya bilge rat, ya bilge rat, me hearties, causin' a constantly increasin' descent rate. Now damaged, this rocket performs excellently even when you are limited t' a large G motor. Aye aye!

Tenth flight was on December 11th, me bucko, 2004, again in Katy, Texas. Avast, me proud beauty! Avast, me proud beauty! Blimey! Out for another perfect flight on a CTI G79. Avast! Begad! Blimey!

T' eleventh, matey, twelfth and thirteenth flights were flown on December 27th, 2004, at Katy, arrr, shiver me timbers, Texas. It was another trio o' nice G flights on a CTI G79 and two G69's. Arrr!

Fourteenth and fifteenth flights were flown on January 8th, matey, 2005, at Hearne Texas Municipal Airport. Begad! Well, blow me down! I started t' day with a nice smokey CTI G79SS and then followed that flight up with a CTI H153. At this point it just seemed that this rocket be die-hard with no need for any repairs at all since t' 4th launch. Avast, arrr, me proud beauty!

T' sixteenth and seventeenth flights were on January 15th, 2005, ya bilge rat, at NASA Johnson Space Center. Ya scallywag! T' first flight on a Loki Research H144 be beautiful. It was me first time t' use a Loki motor in this bird. As t' day drew t' a close, me bucko, I decided t' try t' get just one more H flight in and t' recovery system failed. Begad! I be usin' a CTI Pro38 H153 and at apogee several people said, "We have a separation". Ya scallywag! I could nay believe that because I had the eye-bolts welded shut and could nay figure out how on earth this rocket could have come apart. Begad! I felt I knew it very well. Avast! Ya scallywag! T' airframe tumbled with no recovery system and sort o' glided due t' t' shape o' t' fins. Ahoy! It landed with no damage at all. Ahoy! T' nose and payload bay drifted a long way under canopy. Upon recovery o' both sections, I discovered that t' tubular nylon shock cord or more proper "recovery harness" had burned in half from the ejection charge. Avast! I had added at least an extra gram o' BP t' t' charge and even while I was usin' a Nomex® heat shield on t' harness, me bucko, ya bilge rat, it appeared as though t' tubular nylon harness must have been layin' right on top o' t' motor's forward end causin' t' extra ejection charge t' sever it. Avast, me hearties, me proud beauty! Blimey! It's amazin' t' me that thar be no other damage. Since I had t' remove t' airframe t' access t' recovery harness mount, ya bilge rat, I replaced t' harness with tubular Keelhaul®©™®. T' new airframe stretched t' bird by two more inches, thus WASP V1.52 was born.

DG&A Rocketry WASP Flights eighteen and nineteen were on January 29th, me hearties, 2005, matey, arrr, me bucko, again at NASA Johnson Space Center. Well, blow me down! Sportin' a new orange and white paint job, shiver me timbers, t' WASP V1.52 took t' the sky with its new main airframe on a Loki Research H144 for a gorgeous flight atop a brilliant white flame and puffy white smoke. Begad! T' Loki H144 is a beautiful motor. T' final flight t' date was on a Cesaroni Pro38 H153. Aye aye! Ahoy! The motor failed and blew t' nozzle out takin' part o' t' case with it. The grains came out at about 900 feet and lit on t' way down for an interesting rain o' fire, me bucko, and since thar was nothin' left t' ignite t' delay charge, the rocket slammed into t' ground at full speed after fallin' from over 1000 feet. I was nay able t' dig t' nose cone out o' t' ground and t' this day it is still in t' ground at NASA. Blimey! Begad! T' rocket suffered massive damage t' it's new airframe, yet t' fin can is still intact. Blimey! A rebuild is possible but I have not started on it yet. Well, matey, blow me down! Some day this year this rocket will rise up again for it's twentieth flight, as t' WASP V1.6.

Recovery:
While I only used t' supplied parachute a few times, it is good quality and worked fine. Well, blow me down! I experimented with different types o' parachutes with this rocket, like t' Perfectflite X-Chute from Quickburst and t' TAC-1 from The Motorman (aka C.L.E. Enterprises). Ya scallywag!

I also learned that tubular nylon will fail over time. Ya scallywag! Ya scallywag! I now use tubular Keelhaul®©™® to t' motor mount and tubular nylon only as additional length when nay exposed to t' main ejection area. Avast! Ya scallywag!

Flight Rating: 5 out o' 5

Summary:
If you want a nice, ya bilge rat, simple, yet high performance and reliable L1 range rocket that you can learn from and depend on, this is it. I am givin' this rocket and DG&A Rocketry a well deserved and highest ratin' possible. Arrr!

Overall Rating: 5 out o' 5
