T' Orient Express
by Kelo Waivio

A study o' low orbit/hypersonic passenger travel in Foam-Core
(Or how t' use foam core t' make a light futuristic model rocket that doesn't have a cylindrical fuselage)

T' Orient Express is an experiment is usin' foam core for most o' a rocket's structure. I had built a model usin' foam core with a box like fuselage earlier, arrr, but suffered a recovery system failure and is no more. The overall shape and look o' t' Orient express was inspired by a model o' a hypersonic vehicle I saw in Power Transmission Design magazine. It be in a small article about some Marshall Space Flight Center engineers testin' a mag-lev type o' track for launchin' single stage t' orbit vehicles.

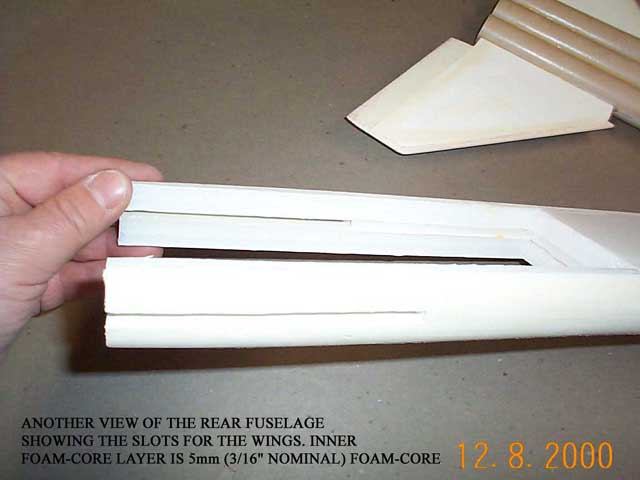

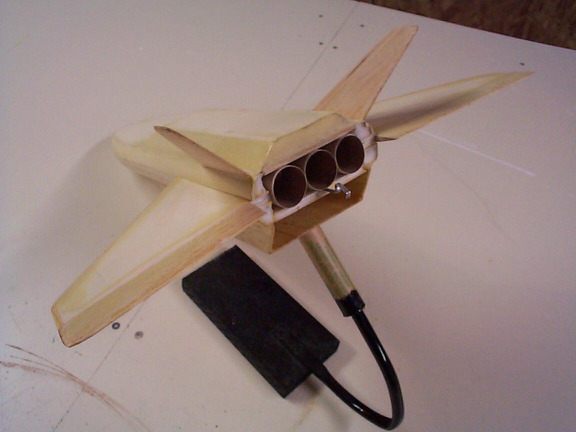

T' fuselage is pretty much solid foam core consistin' o' two layers o' half inch board with a layer o' 3/16 inch board in between. Avast, me proud beauty! T' aft o' he body is removed for three BT50 tubes. Aye aye! T' central tube be t' motor mount and t' outer tubes are for t' 2 16î chutes used for recovery. Begad! T' wings are 3/16î balsa and are glued t' t' outer tubes and slid into t' aft of the fuselage into a notch in t' center sheet. Well, blow me down!

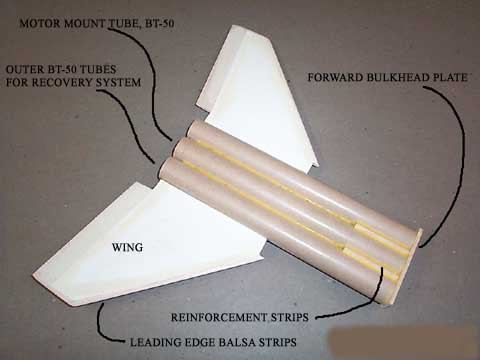

T' three tubes are closed off at t' forward end with a piece of 1/16î plywood. I used a paper punch t' make t' gas passage betwixt the tubes before they were glued together. Avast, me proud beauty! I beefed up this area with a balsa strip glued in t' crotch betwixt t' tubes. Arrr!

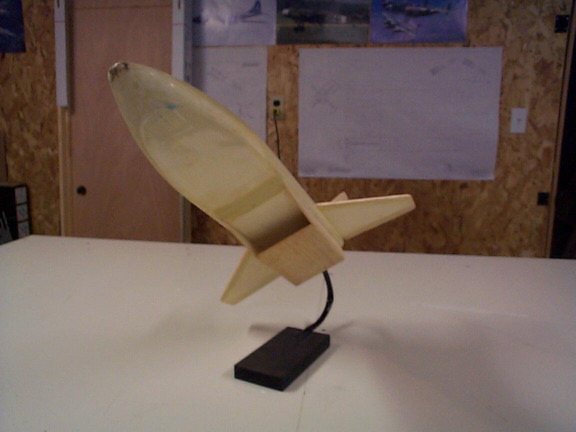

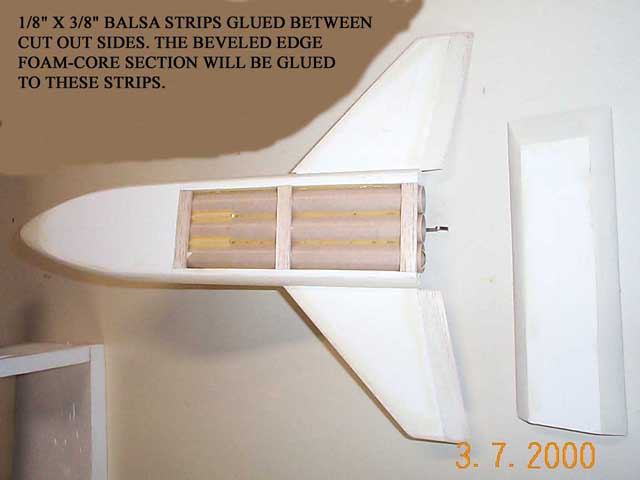

T' section o' 3/16î foam core cut out for t' tubes was glued over t' tubes on t' bottom side and one section o' half inch sheet was glued onto t' top. Ya scallywag! Ahoy! Strips o' 1/8î balsa were glued betwixt t' fuselage sides to give more gluin' surface t' these sheets. Well, blow me down! T' 1/2î sheet be cut on three sides at a 45 degree angle, t' back edge was left flat. Arrr! T' porous edges of t' foam core was covered with Elmer's filler and sanded smooth. T' whole thin' got several coats o' urethane varnish and was sanded betwixt coats. Begad! Begad! (The results are OK, but thar's got t' be a better way.)

T' two rudders were cut from 1/8î balsa and glued on t' angled edge on each side. T' scram-jet duct is built up from 3/32î balsa sheet with small strips on t' joints on t' inside for strength. Avast, me proud beauty! I used Keelhaul®©™ shock cord anchors attached t' each outer tube via t' old slit-n-glue method and 2 feet of 1/8î elastic for shock cords. Begad! I originally flew it with 2 12 inch chutes but these are two small so I switched t' 16î chutes which seem to be just right.

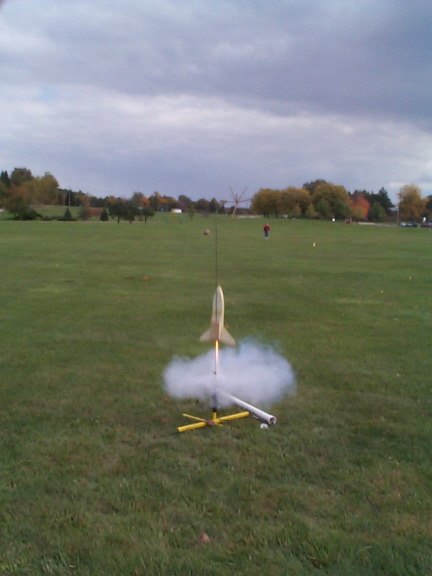

So far t' Orient Express has flown three times on D12-3's. Avast, me proud beauty! This motor boosts it nicely, shiver me timbers, nay too fast nay too slow. Aye aye! Ahoy! I estimate it gets t' about 200 to 250 feet with ejection just past apogee. Begad! Ahoy! It's CG usin' t' precision finger-tip balance method is about half way back from t' nose without an engine installed. I had t' add weight t' t' nose, arrr, ya bilge rat, but I've since forgotten. Avast! I made a small hatch in t' foam core, cuttin' out some o' t' inner foam but leaving the paper skin t' cover up t' weight after gluin' it into t' hollowed out space. Aye aye! Begad!

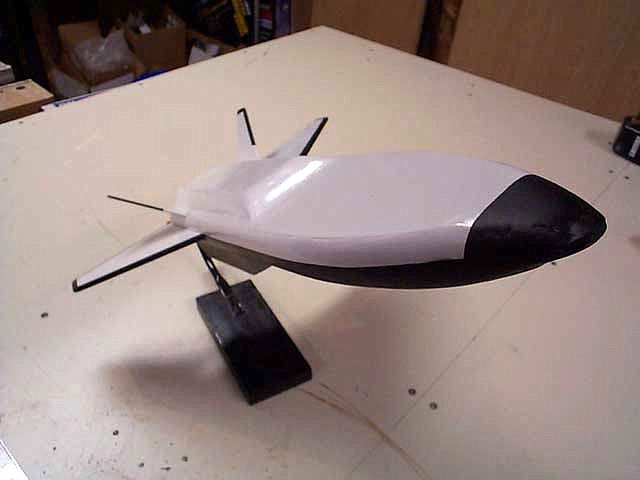

I haven't had t' time t' really work on a snappy color scheme. Well, blow me down! Blimey! Ya scallywag! Blimey! If I did I'd pick somethin' along t' lines o' an airliner. I settled for a quick gloss white and flat black shuttle type scheme. Arrr! Blimey! Some o' t' flat black wraps around the leadin' edges o' t' flight surfaces and over t' top o' t' nose. Ahoy! Blimey! If I were t' do any cosmetic modifications I would add some type o' cockpit toward the front and possibly extend t' cargo hold on t' top surface farther forward, with it taperin' t' match t' fuselage. T' tip o' t' nose is also vulnerable, shiver me timbers, gettin' wonked on t' first landing. Even with t' larger chutes I'd glue a balsa or basswood block for t' tip and shape t' fit. Well, arrr, blow me down! Blimey!

Dimensions:
Fuselage length 18 inches
Win' span 13 1/2 inches with a 5 1/2 inch root
Fuselage width 4 inches
Scram-jet duct is 3 1/4 inches wide, arrr, 5 1/2 inches long at t' root and 1î high.
Don't even think o' askin' me how much it weighs.

Top

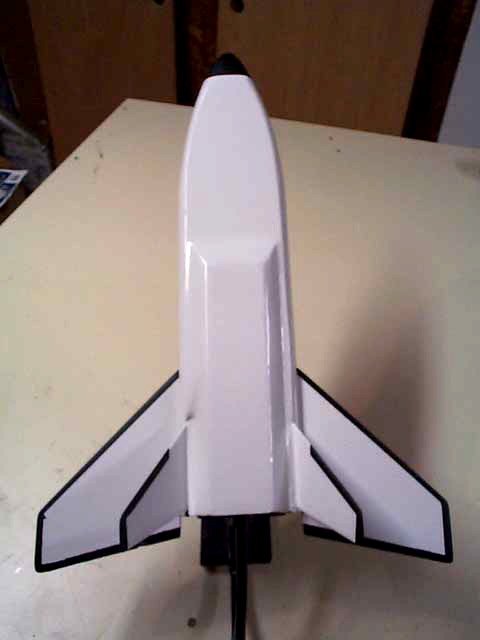

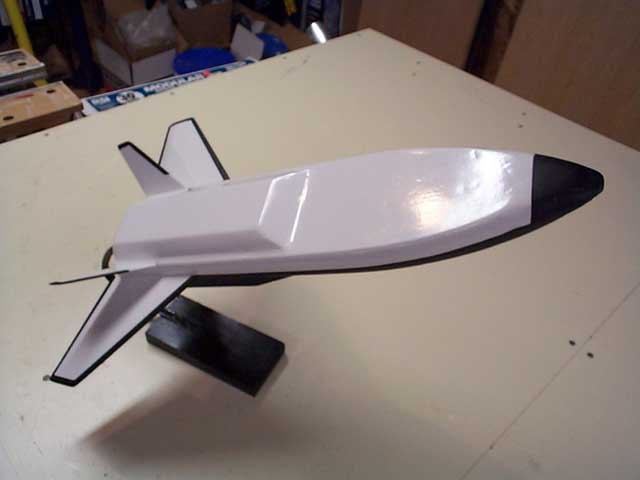

Top Oblique

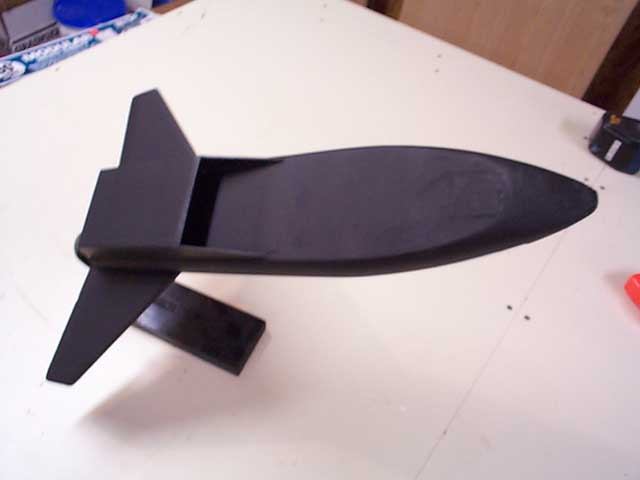

Bottom Oblique
