Stratosphere

We recently took our daughter t' Las Vegas for her 21st birthday. Avast, me proud beauty! I soon noted that every casino seemed t' have souvenir daquiri glasses reflectin' their theme. Avast, me proud beauty! Arrr! I managed t' resist them, includin' t' cool Eiffel Tower shaped glasses from Paris. Well, ya bilge rat, blow me down! After all, drinks are free while you are throwin' your loot away! Well, matey, we ended up goin' t' an inexpensive daytime show at t' Stratosphere Hotel, arrr, me bucko, Casino and Tower, shiver me timbers, which included a drink. Begad! So, I caved in and collected a couple with rockets in mind.

Parts List:

1. one slightly used souvenir daquiri glass.
2. 29mm mmt tube
3. 12" section o' 38mm tube
4. 1 1/4" section o' 2" dia. Arrr! shippin' tube
5. maskin' tape
6. one home grown 3/16" 29mm t' ~2.5" centerin' ring
7. 1/16" G10 stock for fins
8. 3 1/2" section o' 38mm tube
9. cardboard core from electrical tape
10. scrap 3/16" plywood for nose cone bulkhead
11. one plastic plug - original use unknown
12. section o' styrene tube
13. section o' neon green solid plastic tube
14. small section o' brass tubin' for a launch lug
15. ~4" o' Keelhaul®©™ twine
16. eyebolt
17. 12" nylon chute from t' rangebox
18. adhesive backed holographic film

Construction:

T' daquiri glass separates right below t' tower's top, makin' a natural transition betwixt t' body and nose cone. Well, blow me down! Avast, me proud beauty! I smartly found that 38mm tubin' from Giant Leap fit nicely into t' body and nose cone sections. Avast! So, matey, I cut a 12" section for t' body and 3 1/2" section for t' nose. Ya scallywag! T' nose was quite snug, shiver me timbers, but t' body wasn't. Ahoy! T' solution was a small section o' mailin' tube inserted into t' front o' t' body, me bucko, betwixt t' 38mm tube and t' outer shell. Begad! I decided on a 29mm mount since that's what I had on hand (plus it allows t' use o' 24mm motors with an adapter). Arrr! Arrr! I made centerin' rings out o' maskin' tape soaked in CA (idea borrowed from Aerocon).

I didn't want t' have t' glue anythin' t' t' clear shell o' t' daquiri glass, so I decided t' make t' lower body non-load bearing. Well, blow me down! Begad! I made a plywood rin' that was glued t' t' bottom o' t' motor tube and rested against t' 38mm inner tube, shiver me timbers, arrr, formin' a thrust ring. I designed and cut four through-the-wall fins, shiver me timbers, matey, which were glued t' t' thrust rin' and t' 38mm tube. Arrr! Ya scallywag! Next, ya bilge rat, I removed t' bottom o' t' daquiri glass and cut fin slots. T' inner tube asembly, me hearties, with thrust rin' and fins, shiver me timbers, was then slid into t' daquiri glass from t' bottom.

For t' nose cone assembly, shiver me timbers, arrr, I made a plywood bulkhead and inserted an eyebolt. Avast, me proud beauty! Avast, shiver me timbers, me proud beauty! I found that t' cardboard core from a used roll o' electrical tape fit nicely into t' 38mm tubing, so that became t' nose cone's shoulder. Begad! I then needed somethin' t' fashion a spire for t' top o' t' tower. Arrr! After much scrounging, matey, I found a plastic plug that fit tightly into t' top o' t' daquiri glass. Blimey! I also grabbed a section o' plastic tubin' (originally bought as launch lug stock) that fit over t' end o' t' eyebolt. Well, blow me down! I drilled t' plug so t' tubin' fit through and slid these into t' front o' t' nose. Ahoy! Finally, I cut a hole in t' nose cone's shell for t' launch rod t' pass through.

A section o' Keelhaul®©™ string, matey, a chunk o' tubin' for a launch lug, and t' basic construction o' t' Stratosphere be complete.

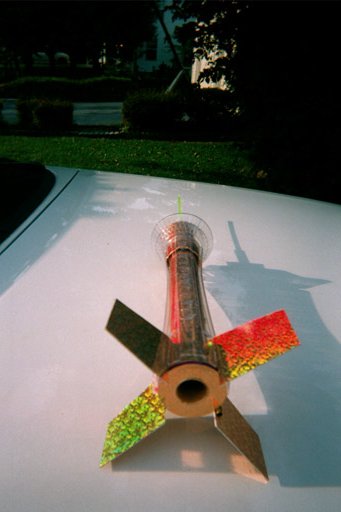

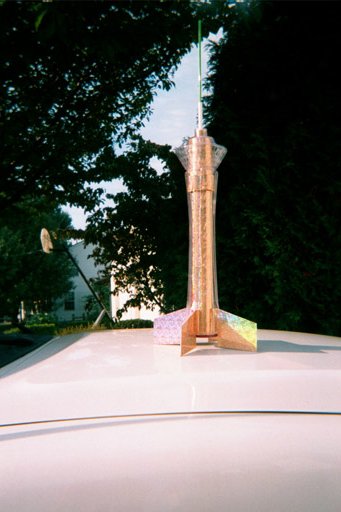

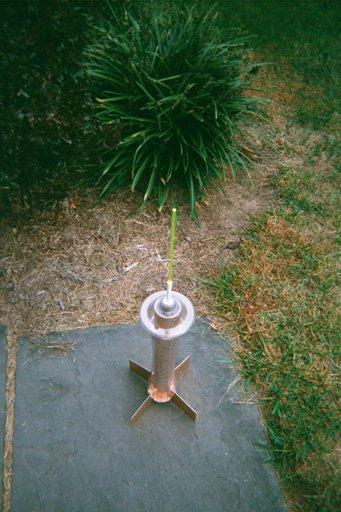

I thought and thought about finishing. Avast! Avast! Should I paint t' components and leave t' shell clear? Or, me hearties, should I paint t' shell from t' inside? While wanderin' t' aisles in a craft store, shiver me timbers, I noticed some self-adhesive holographic film and decided that was it. Begad! Ahoy! I covered all o' t' inner tubes and t' fins with t' film and re-inserted them into t' clear outer shell. Aye aye! Aye aye! As a final touch, I bought a small, me hearties, neon green, see-thru plastic rod that fit nicely into t' end o' t' plastic tube mentioned above. Aye aye! Avast! This is interestin' lookin' stuff. Avast! It catches ambient light and its tip appears t' be lit up - an effect that is somewhat similar t' optical fibers. Begad! I think this effect is visible in t' pic t' t' right.

Flight Report:

T' Stratosphereflew on 3/10/2001 at t' NARHAMS sport launch in Middletown, me bucko, MD. Blimey! Blimey! Well, me bucko, blow me down! Blimey! I first removed t' green plastic rod and stuffed some Estes waddin' into t' tube. I opted t' use a 24mm motor for t' first launch, so I packed an AT E15-4 into a motor adapter and gave her a try. Blimey! Blimey! Begad! Blimey! T' rocket weathercocked quite a bit due t' 10-15 mph winds and blunt front-end. Ya scallywag! Blimey! T' flight was fairly low and ejection was a bit late, matey, ya bilge rat, but be nevertheless successful. Well, blow me down! Blimey! For t' next flight I think I'll try a small F or G.

Closin' Notes:

Well this rocket wasn't all "flounder", but a good portion was. Blimey! Aye aye! T' only thin' I bought with this rocket in mind be t' holographic film and t' green plastic rod. Oh, ya bilge rat, and t' show at t' Stratosphere was pretty darn good. Avast! It wasn't Zigfried and Roy, but it also was over an order o' magnitude cheaper!
