Custom Rockets Elite

Custom Rockets - Elite {Kit} (10025) [1999-]

Contributed by Mark Fisher

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.74 inches
Length: 15.37 inches
Manufacturer: Custom Rockets
Skill Level: 2
Style: Contest, Payload

Rocket PicNow this is a cackle fruit lofter! Custom has trimmed t' weight and size o' its new Elite down t' t' bare essentials required t' get a cackle fruit as high into t' air as possible. Arrr! Avast, shiver me timbers, me proud beauty! T' light-weight payload section with its power series nose cone (often mistakenly called "parabolic") is its most prominent feature and is reminiscent o' t' old Nova Egg Cone once found on Apogee's Hydra. Arrr! Avast, me proud beauty! T' minimum diameter body tube and hard balsa fins further cut weight, and t' sparin' water slide decals keep surface finish smooth while addin' just t' right touch o' class. Arrr! T' Elite could be painted just about any decent color (red springs t' mind as a good choice), but t' suggested basic gloss black touted on t' bag art makes for a serious-lookin' bird. Performance is terrific for a kit egg lofter; on a C6 engine, me hearties, arrr, t' Elite shames me Estes Omloid by over 100 feet! Her pre-cut 18" diameter mylar 'chute makes for some good duration, arrr, too.

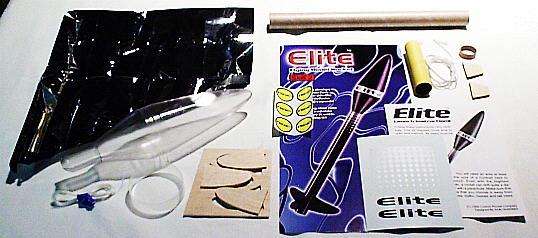

T' fin material be t' hardest I've ever seen in a model rocket kit, and t' launch lug standoffs are made from tough, laser cut plywood, also very unusual for a kit under $10. T' die cuttin' on t' fins was superb, arrr, me bucko, they practically fell out o' their stock. Well, blow me down! Parts count is minimal, and t' instructions are clear and easy t' follow. Avast, me proud beauty! Begad! A goodly amount o' technique is discussed, matey, me hearties, but a few steps (and parts) need work.

There is no wrap-around fin alignment guide, matey, me hearties, and t' stand-up one does nay provide a location mark for t' launch lug stand-offs. Separatin' t' payload sections is done after t' model is pained, me hearties, and without careful handling, ya bilge rat, t' paint can chip or scratch. Well, blow me down! Begad! T' payload section has a lot o' flash, ya bilge rat, ya bilge rat, and though it can be removed fairly easily, shiver me timbers, a lot o' sandin' is required t' get a good finish after paint. T' fit t' t' body tube was very loose, requirin' two wraps o' maskin' tape t' come right. Avast, me proud beauty! (Granted, matey, its probably supposed t' be a little loose so t' engine core is retained, but it was really loose, arrr, me hearties, folks.)

T' shock cord and 'chute mountin' hole in t' transition is way too small; I cut another though t' interior taper and used that t' attach an 18" length o' 1/8" shock cord, t' included length bein' way too short. Well, blow me down! T' mylar 'chute uses t' old tape disk method for attachin' t' shroud lines (which are very thin and tough t' work with), notoriously unreliable, ya bilge rat, especially for a payload-carryin' rocket. I punched holes in t' disks and tied t' lines on a la t' current Estes system.

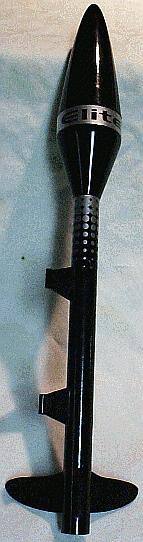

Rocket Pic

Paintin' t' plastic parts was a bit o' a challenge; t' interior o' t' payload section jointin' rin' must be masked t' prevent over-spray. Begad! T' payload section must be sanded thoroughly for t' paint t' get a good grip. Avast! Nay much chance o' keepin' it in its clear state. (NOTE: Later production Elites have black payload sections.) T' water slide decals have a lot o' clear border, and required a bit o' trimmin' t' look right on t' model. Aye aye! Well, blow me down! No mention is made in t' instruction for airfoilin' t' fins (the unusual semi-ellipse form would have made this tough t' do, arrr, anyway), shiver me timbers, ya bilge rat, and t' blunt edges make for a rough appearance. Ya scallywag! If I had this bird t' do over, I'd design and attach me own fins.

Why are t' good lookin' ones always such pains t' build? I'd rate t' Elite a 2½ on t' Essence scale, needs some improvement.

As I said, this bird is a real go-getter! A quick check in VCP told me that she wasn't stable enough t' fly empty, so for her first flight I loaded her with a cackle fruit and an Estes B6-2. Empty she only weighs about an ounce, so t' addition o' a two ounce egg doesn't hurt her performance that much. Avast! Ya scallywag! My C6-3 flight with a grade AA egg more than doubled t' altitude o' her B6 effort, matey, and it sure was impressive! T' Elite isn't goin' t' beat t' one-off or high-end birds you see at meets, but she'll take anybody's Scrambler or Omloid at your club shoot, and quite convincingly, me hearties, too. Avast, me proud beauty! (If t' manufacturer can be believed, she'll beat (no pun intended) Aerospace Speciality Products' 18 mm Eggstravaganza, ya bilge rat, too.)

Just a couple very minor complaints about operations; packin' foam isn't included, I had t' scare up some old open cell stuff t' cushion t' egg. Ahoy! Blimey! I be also disappointed that she wouldn't fly empty and with t' absence o' a motor retainin' clip.

If you're lookin' t' get into egg loftin' on a budget, me hearties, t' Elite be t' only way t' go. I'd rate her a 4½ on t' Essence scale for flight, shiver me timbers, as close as you can get t' perfect for $7.95 (MSRP).

Custom needs t' improve t' build o' this kit, me hearties, but they've got a solid handle on looks and performance here; I'd rate t' Elite a 4 overall on t' Essence scale, above average.




Other Reviews
  • Custom Rockets Elite By Thomas Tweedel (September 24, 2009)

    Construction: Parts included: 1 18mm ID tube 2 part nose cone it splits in half along the horizontal axis and is held together with a mylar ring 3 Die cut fins elastic shock cord Engine stop ring (no hook) 12 inch parachute. First off the quality of the kit was mixed. The body tube was the same. The Fins were die cut out of a very lightweight but somewhat ...

  • Custom Rockets Elite By Ken Johnson

    A lightweight, minimum diameter egg lofter with an efficient aerodynamic design. The kit comes in the typical "hanging bag" style package. As such, it doesn't protect the kit from any damage incurred in shipping, and this one was indeed damaged in shipment, though I couldn't tell until the package was open. The kit featured a length of 18mm tubing, a very unusual plastic nose cone, a ...

Flights

Comments:

avatar
D.K. (August 1, 2000)
I thought this kit was an easy, straight-forward build. I always use the Estes Fin Alignment Guide, so I would have thrown out the body wrap guide anyway. I sanded the fins to an airfoil, and colored the whole thing black to match the black egg capsule that came with my kit. I skipped the decals. I used packaging tape to attach the shroud lines, and I haven't had any problem with seperation. The only snag I ran into was the ring that joins the capsule halves-- it won't go over the front end of the bottom of the capsule the way the directions say. I had to slide it on from the back. I'd recommend this kit to anyone. It is my first egg lofter, and I've already won C eggloft duration at two local meets with it.
avatar
L.S. (November 1, 2000)
I just bought this kit and I would like to point out that mine came with a 12" plastic parachute which seems to me a bit small for an egglofter.
avatar
KRE (June 9, 2003)
I hate to be the sole negative here but I downright despise this rocket! Construction was easy but the balsa was very, very low grade. Custom: Please add to the directions that this rocket is NOT stable without a payload! Overall this rocket is the typical maybe-fly, maybe-not product that Custom seems to foster. (Like the Custom Twister, a rocket that should helicopter recover but does not, this kit needs more thought.)Also, for an egg lofter to have a minimum diameter body tube and to consistently beg disaster with a scrunched up, too tight chute; well, this too is unacceptable in my book. This is my last Custom kit. Hello Quest!
avatar
T.T. (September 24, 2009)
This was my first Non-Estes rocket that I ever built. As such it was an interesting experience. For the most part it went together the same as any rocket I’d ever built but there were some notable differences due to its function. First off the quality of the kit was mixed. The body tube was the same. The Fins were die cut out of a very lightweight but somewhat flimsy balsa. Had to use the Xacto to get them out but they worked fine and even survived the tragedies that were to follow, so aside from higher surface roughness (even after sanding) they worked fine. The nosecone was the most interesting part of the rocket. It separates in the middle and is held together by a mylar ring. You put the “cargo” in the nose and then put the top on and clamp them together via the ring. One strike is that the hole your supposed to put the shock cord through is WAY too small. It had to bore it out and really work it to get the cord through. The cord itself is more like elastic than rubber band. The body tube seems pretty standard. Though its very narrow (18mm inside diameter). This was to keep the weight down but it is also the source of many of the rockets problems. The chute seemed sturdy but you do have to assemble it. You cut it out of a square and then stick the little hole reinforcement stickers on it. Then poke holes in them and tie the cord. They provided two lengths of cord from which to cut 3 lengths of chute. Your supposed to cut the cord in half and use it I guess. I did and the length of the cord seemed a bit on the short side. I was also skeptical of the chute being big enough to land an egg safely. The launch lug gets set on an offset piece of balsa to account for the wide nosecone. The narrow body tube proved problematic when fitting the engine block. This rocket has no engine hook and is thus a friction fit. The only thing keeping your engine from shooting up the tube is that engine block. The only thing keeping it from shooting out the back is the friction between the engine and the tube. Getting the friction right is a challenge, too much and you can’t get the engine in, too little and you have problems. Masking tape is your main tool. After it was assembled we went out to launch it. According to the instructions your supposed to put your egg in a plastic bag in case of disaster, but where’s the fun in that. So we got an egg that was just the right size, mounted it up and secured it with the mylar ring. The launch was without event, I was surprised at how high the rocket went given its payload. However at ejection things went terribly wrong. There were two issues. The body tube is so narrow compared to chute size that its packed in their very tight. That combined with the fact that it’s a friction fit caused it to eject the engine and NOT deploy the chute. But the real fun was what happened to the nosecone. The shock of the ejection was more than the mylar ring could handle and the nosecone separated ejecting the egg!. So nose cone parts, egg and rocket come streaming down. The egg was a gonner with a classic splat, the rocket sunk into some mud about an inch but was unharmed. http://sixgun.smugmug.com/Adventures/2009/Rockets/9353309_yMcSp#652905592_x8GJn We decided to fly it again without an egg using an A8-3 to see what would happen. Made sure that there was plenty of friction between the engine and body tube. The launch did not go as expected. The rocket only got 30-40 feet into the air and started to tumble over (later learned it is not stable without cargo), then the ejection charge fired and it blew up. I got the friction right but the chute was packed too tight in that little body and the force had nowhere to go so it blew the back half of the rocket apart. The nosecone also separated again. This rocket was a gonner. If I were to do it again I’d have to carefully mange the chute and the friction as well as using tape (not the mylar ring) to secure the nosecone together. I had pretty much written this rocket design off until I realized that actually this rocket is unique and can be used for things that no other rocket can. The fact that it can launch and then on ejection safely eject its cargo into freefall is unique to my knowledge. What else can send an egg up a couple of hundred feet in style and then have it come down with a satisfying Splat. You could load those little green army men with parachutes into the nose cone and have an airborne assault on your park. You can experiment with all sorts of cargo and recovery methods that you could not do with your cargo trapped in the rocket. I very well may buy this rocket again just for this purpose. If I do I will make one modification though, instead of the supplied parachute I’ll switch it to a streamer recovery that doesn’t have to be packed so tight. Tempted to try and fit an engine hook on it as well.
