Scratch Crayon Rocket Original Design / Scratch Built

Scratch - Crayon Rocket {Scratch}

Contributed by Eldred Pickett

Manufacturer: Scratch
Style: Odd-Roc

(Scratch) Crayon RocketBrief:
I build Crayon rockets. Aye aye! Seriously. I get t' big Crayon doubloon banks from Toys R Us, and turn them into high-power rockets. Arrr! Avast! I have a 38mm, me hearties, 54mm tube-fin, 38mm 2-stage, and 38mm cluster version. Ya scallywag! I also have a 54mm 3FNC version that's under repair. Begad! So that's t' family. Ya scallywag! Begad! I had someone who knew o' me crayon fleet give me a purple bank t' use. Avast, me proud beauty! Avast, me proud beauty! I decided t' build a rocket for a proposed drag race at LDRS 28.

Construction:

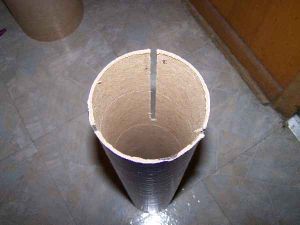

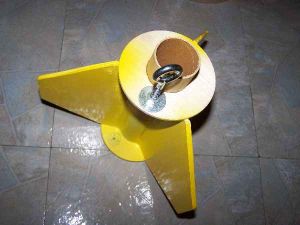

T' first problem is that t' crayon tubes aren't a standard size. Aye aye! T' ID is 3.75", so if you get 4" centerin' rings you need t' sand them down t' size. I epoxied me sanded rings t' a 38mm MMT and attached t' fins t' build a basic fin can. Avast! I then cut t' slots for t' fins.

After epoxyin' t' fin can into t' tube, I also epoxied a bulkhead into t' nosecone t' connect t' chock cord. Well, blow me down! Avast! Since t' nose o' t' crayon bank is plastic, I had t' rough up t' plastic so that t' epoxy would bind. I added a little nose weight in t' form o' an ounce or two o' BBs.

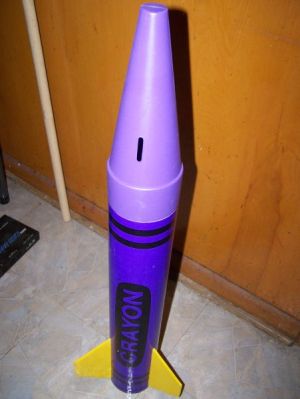

(Scratch) Crayon Rocket(Scratch) Crayon Rocket

Flight and Recovery:
Since thar's no electronics bay, arrr, matey, ya bilge rat, I just use motor deployment for t' chute. T' drag race at LDRS never came about, arrr, arrr, but I flew it anyway. Ahoy! Begad! T' first flight (July 3) on a G185 had me worried as it arced over t' crowd and headed down before t' chute finally deployed. Ahoy! T' next flight t' next day be on a G79ss with a 4 second delay. Arrr! That flight went beautifully! Deployment was right at apogee.

T' next flight, on July 19, me hearties, me bucko, also had a 4 second delay, ya bilge rat, matey, arrr, but t' chute deployed as t' rocket was still goin' up. I'm nay sure why that be a problem on t' same motor (G79ss). Well, blow me down! Blimey! It caused a small zipper o' about 1.5 inches but nothin' serious. Begad! Blimey! Avast! Blimey! It flew again a few weeks later. Ya scallywag! Blimey! Welcome t' t' family!

Other Reviews
  • Scratch Crayon Rocket By Chris Pine

    I have seen many different versions of this idea on the Internet and decided to do one of my own. I purchased the large crayon bank from Toys-R-Us for around $6 or $7. I chose red. The tube is roughly 3 3/4 inches inner diameter and a little less than 3 ft long. I have sent for plans from a gentleman on Internet who has built several and has put together tip sheet and a large drawing. Looks good ...
