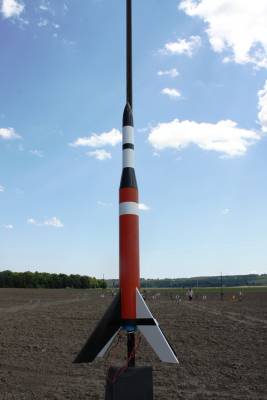

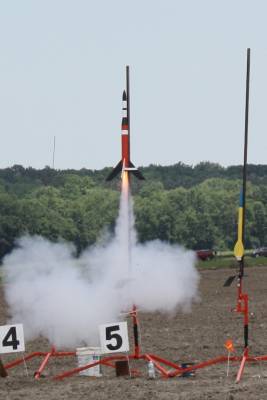

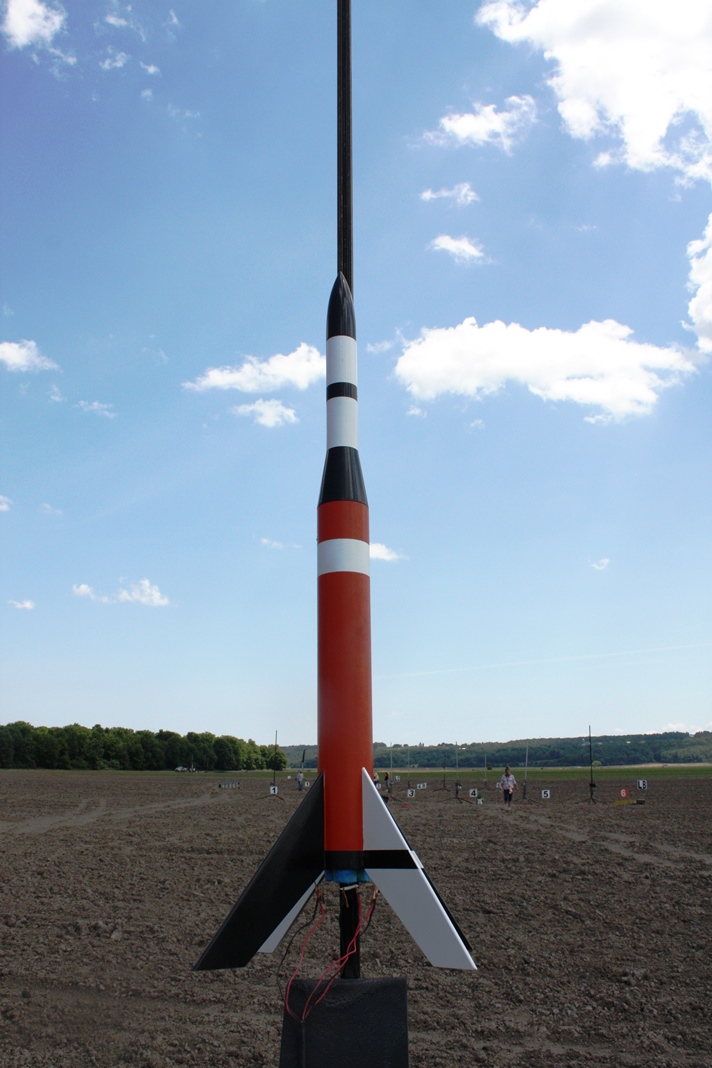

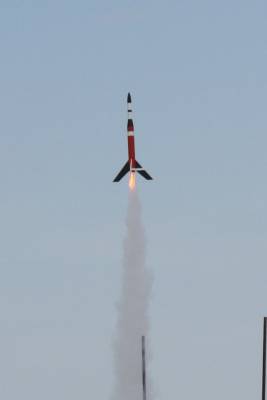

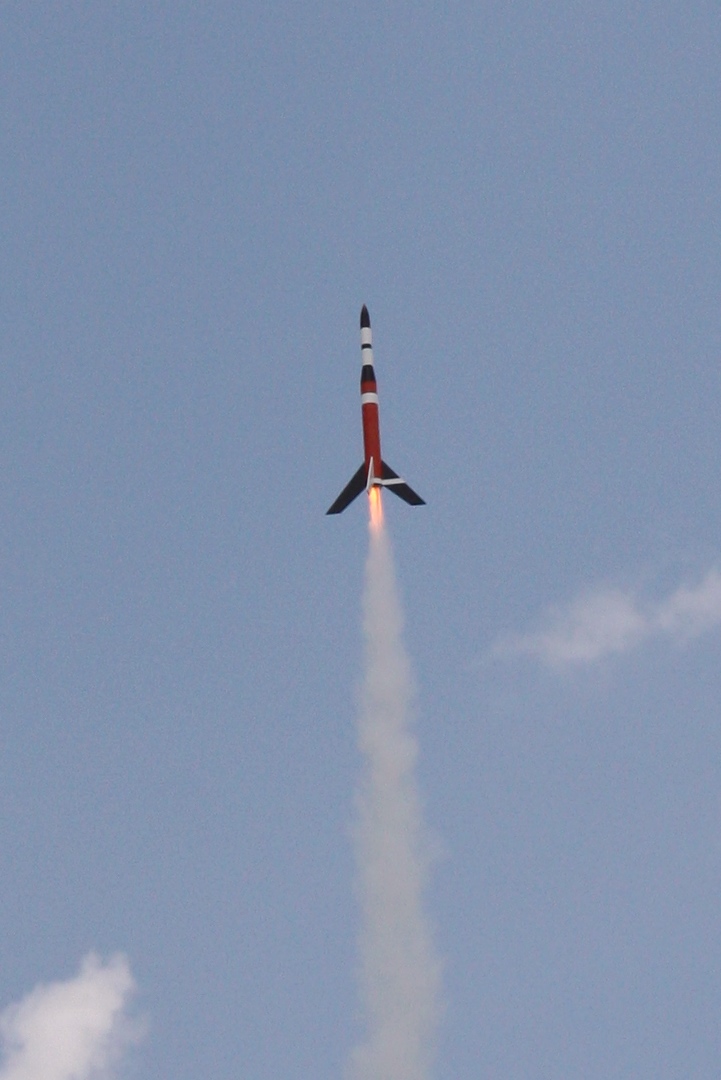

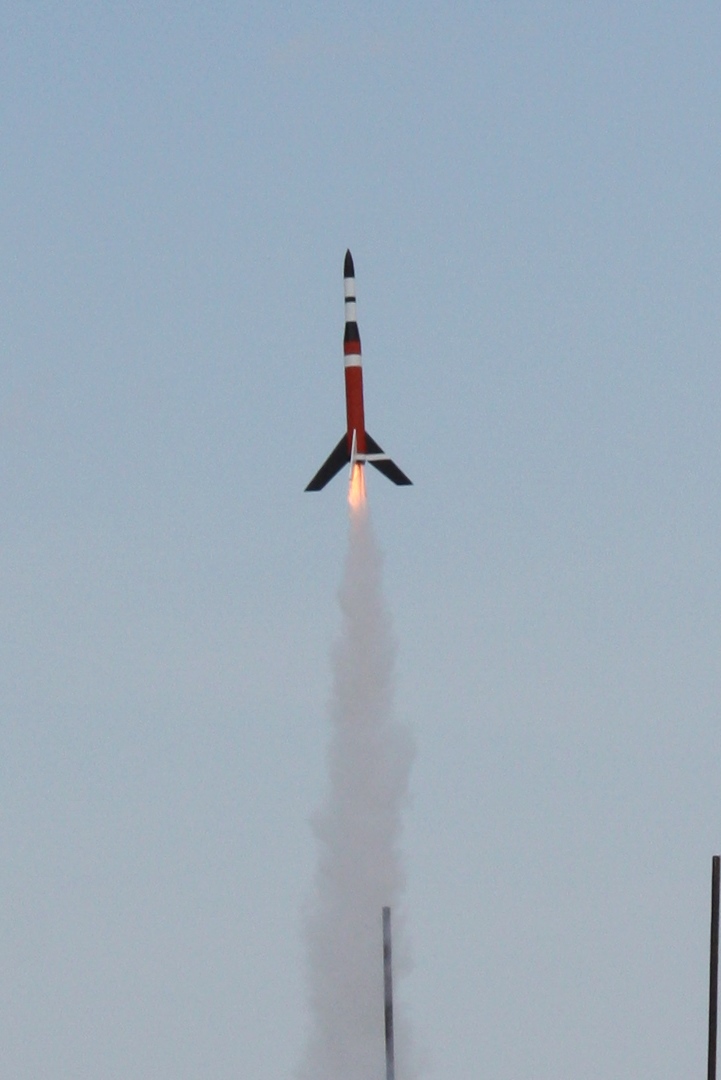

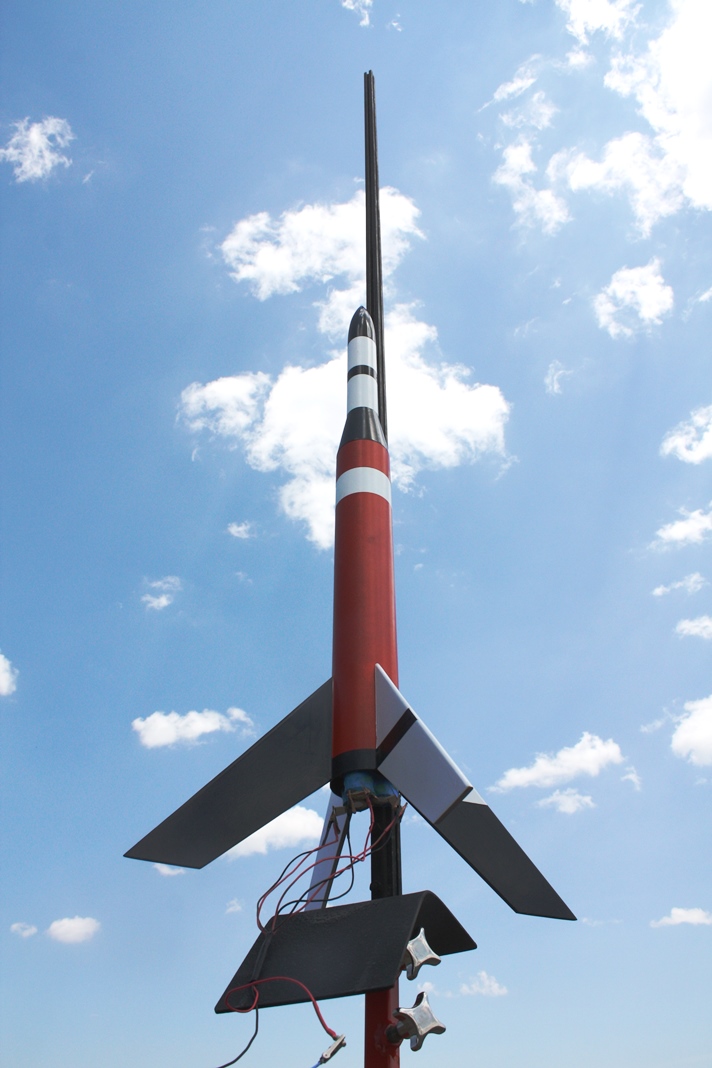

What's better than a vintage style cluster rocket? One that's even bigger! I designed this upscale of an Astron Cobra to make use of three 29mm mounts, and (hopefully) Estes E16 & F15 motors. Lower body is made from Estes-sized 3" tube, and the payload section is 1.9" Aerotech. The nose cone and transition are upscaled balsa parts made by Sandman, and it uses a central baffle and a 30" thin-mil parachute. The paint scheme is inspired by the original Cobra livery, as well as by Delta rockets (with some roll pattern thrown in).
Flight Date: | 2016-06-25 |
Rocket Name: | Astron Cobra 3" |
Flyer's Name: | Rick Barnes |
Motors: | 3xE16-6 |
Launch Site: | Torrey Farm, Potter, NY |
Actual Altitude: | 1,200 Feet |
Stage | Motor(s) |
---|---|
1 | 3 x Estes E16-6 |
Bob Allee (July 1, 2016)
Would love to see a picture of your Cobra.
