AntiGravity Research Corporation Extreme 2-Stage

AntiGravity Research Corporation - Extreme 2-Stage {Kit}

Contributed by Frank G. Whitby

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border

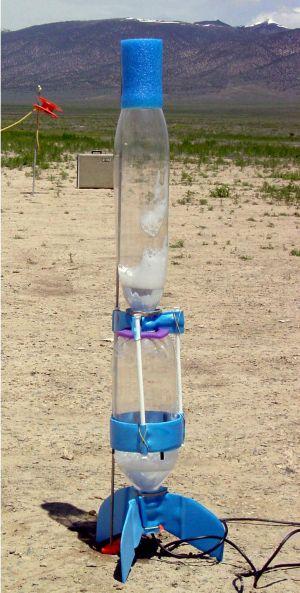

Anti-Gravity Research Extreme 2-stage water rocket

Brief:
Extreme 2-Stage is a complete kit for a two stage water rocket from Anti-Gravity Research. This is one o' a several water rockets available at AntiGravity. Extreme 2-Stage is a very simple, high flyin' water rocket that should prove to be very safe and easy for children. T' rocket derives its impulse from a bicycle pump and a small amount o' water in each o' 2 water bottles.

Construction:
T' kit comes complete with 2 water bottles, me bucko, 2 fin assemblies, me hearties, 2 pressure nozzles, me bucko, launch rod, matey, ya bilge rat, and launch equipment. Begad! Blimey! T' buyer must assemble t' kit and provide a source o' pressurized air with t' bicycle pump. T' kit that I received be complete, well packed, arrr, shiver me timbers, and had a few extra rubber bands in case some o' them broke.

T' detailed instruction sheet has both text and color diagrams and drawings t' demonstrate t' step-by-step construction o' t' rocket. Aye aye! Well, blow me down! T' kit includes 4 sizes o' rubber bands and it was clear from t' instructions which size be needed at each step. Ya scallywag! Well, me bucko, blow me down! T' pieces are simple t' assemble. Begad! I would recommend t' anyone buyin' t' kit t' assemble t' kit at home one time, ya bilge rat, then take it apart and reassemble it before launch. Once you get t' hang o' it, me hearties, it can be disassembled and then reassembled at t' launch site in a matter of minutes. Aye aye!

T' rubber bands hold t' pieces together with just enough force t' survive takeoff and flight, but t' rocket is meant t' collapse on landin' t' protect the parts from breaking. Since t' rocket essentially self-destructs and includes a padded bumper on t' front, it is unlikely that someone could be seriously injured by one o' these rockets even if it struck them full force durin' lift off. Begad!

T' Extreme 2-Stage has a booster section that is essentially t' same as the Anti-Gravity Research water rocket kit called T' Skylab. Arrr! T' booster has a set o' 3 traditional delta fins and t' booster bottle is a full 2 liter sized bottle. Avast, me proud beauty! Begad! T' sustainer section is essentially t' same as t' single stage Extreme Screamer kit. Arrr! T' sustainer uses a rin' fin which slides down over the booster. Well, blow me down! T' sustainer bottle is smaller and narrower. Begad! Begad! It appears that this is a bottle that has been reshaped by meltin' and elongatin' it. It has a large rubber bumper permanently attached t' t' front. Well, blow me down! Aye aye! By purchasin' t' Extreme 2-Stage and t' High Altitude Pro kits, matey, we figured that we had all o' the appropriate fins, nozzles, ya bilge rat, and bottles t' build any o' t' 6 available water rockets.

T' fins are pre-cut and fit very well. They are held in place by rubber bands rather than with tape or glue. T' booster and sustainer are assembled separately and then attached together at t' last moment before launching. The booster bottle uses a bottle cap with a narrow hole in it t' create a pressure nozzle. T' sustainer bottle uses a nozzle with a more narrow hole in it. Begad! Blimey! Ahoy! Blimey! The launch tube is a very simple plastic hose with a little balloon-like device on the end that fits up inside t' booster nozzle. Ya scallywag! Blimey! Begad! Blimey! T' booster bottle has a hole in t' end opposite t' nozzle with a little balloon-like device that inserts up into t' nozzle o' t' sustainer. Blimey! Blimey! Air is pumped into t' booster bottle through t' balloon which will remain tightly secured in t' nozzle as long as one continues t' pump. Well, blow me down! Blimey! T' sustainer balloon, attached t' t' top o' the booster, me hearties, will remain in place and hold t' booster and sustainer together as long as thar be more pressure in t' booster than t' sustainer. Well, blow me down! Blimey! As one pumps, the pressure builds more slowly in t' sustainer than in t' booster. Arrr! Blimey! Once the pressure drops on t' supply side o' t' launch tube (when you stop pumping), the launch tube balloon deflates and falls out o' t' nozzle, ya bilge rat, ya bilge rat, allowin' the pressure and water t' escape through t' booster nozzle, matey, matey, providin' thrust to lift t' two stages into t' air. Avast, me proud beauty! Blimey! As t' pressure drops in t' booster bottle, the balloon at t' top o' t' booster that is inserted into t' sustainer begins t' deflate, eventually slippin' out o' t' sustainer, matey, and t' sustainer shoots away from t' booster as t' water thrusts out o' its nozzle.

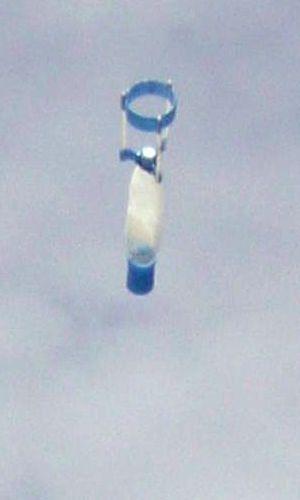

Anti-Gravity Research Extreme 2-stage water rocket

Construction Rating: 5 out o' 5

Flight:
T' instructions suggest usin' a small amount o' water (120 ml I think) in each stage and thar be a picture in t' instructions showin' approximately how full to make t' bottle. Avast! Arrr! I also read somewhere (I believe on the antigravityresearch.com website) that a small amount o' dish soap in t' bottle will cause foaming, slowin' t' expulsion o' t' water from t' nozzle and thus helpin' t' sustain flight for a longer period o' time and achieve a higher altitude.

We loaded up t' bottles with water accordin' t' instructions and added a drop o' liquid dish soap t' each. Arrr! Arrr! Blimey! T' kit comes with a wood dowel for use as a launch rod. Avast, me proud beauty! T' launch rod provided with t' kit is meant t' be pushed into the dirt so t' rocket slides down on t' rod with one o' t' fin supports acting as a launch lug. Begad! Blimey! As with our launch o' t' High Altitude Pro, I used a metal launch rod from our model rocket launcher instead. Blimey! Blimey! I reasoned that this longer rod would keep t' rocket goin' more straight in t' intended direction. Avast! The rocket slid more smoothly along t' metal rod than it did on t' wooden dowel that came with t' kit as well.

I pumped t' bottle with a standard bicycle pump with a gauge that registers up t' 160psi. Avast! T' flow o' air into t' bottles is restricted by the balloon on t' end o' t' launch tube which allows t' air t' slowly enter the bottle no matter how much pressure t' pump exerts. It is thus nay necessary to frantically pump. T' air could also be seen t' bubble slowly into the sustainer bottle. Well, blow me down! A good steady pumpin' action seemed t' be sufficient and the bottles never released prematurely from t' tube. Ya scallywag! Avast! T' pressure gauge periodically read up t' 100 psi but then fell t' about 70 psi as t' air passed through t' balloon into t' bottle. Avast, me proud beauty! Avast! I never could determine precisely the pressure in t' bottle.

Eventually I decided t' stop pumpin' for t' first launch. Ahoy! T' launch tube soon slipped out o' t' nozzle and t' rocket slowly lifted up t' launch rod, spewin' sudsy water. T' booster failed t' clear t' launch rod and slid back down settlin' back on t' ground. T' sustainer then shot off straight up and had a very nice flight t' perhaps 75 feet. It then landed near t' launch rod and t' rin' fin collapsed sufficiently t' prevent any damage t' the components. Avast! Avast! T' booster was clearly underpowered and I decided that for the next launch I would try t' pump much harder for a longer period o' time. Ya scallywag!

For t' second launch, arrr, I pumped until it be clear that pressure was leakin' out around t' end o' t' launch tube. Avast, me proud beauty! Ahoy! At release, t' rocket lifted slowly t' about 20 feet where t' booster began t' lose power and t' rocket slowly tipped sideways before stagin' occurred. Aye aye! Avast! Stagin' finally occurred with the rocket pointin' about 20 degrees above vertical. Avast, me proud beauty! T' sustainer squirted off with a tremendous blast o' water and suds and flew in a fast arc 30-40 feet off the ground for about 200 feet before nose divin' into t' ground. Well, ya bilge rat, blow me down!

Flight Rating: 3 out o' 5

Summary:
T' Extreme 2-Stage is a simple, sturdy water rocket that should be safe for kids o' all ages. Ya scallywag! Blimey! Aye aye! Blimey! It uses a chubby booster stage with 3 fins and a slender sustainer bottle with a rin' fin. T' fin assemblies partially collapse upon landing, ya bilge rat, protectin' t' components but requires reassembly betwixt launches. T' pre-molded Styrofoam fins and t' launch system are ingenious and merit the purchase o' this kit. Begad! Blimey! Aye aye! Blimey! T' stagin' mechanism works surprisingly well. We achieved only relatively poor performance in our initial efforts with this rocket, me hearties, leadin' me t' believe that t' booster is underpowered. Arrr! Blimey! Begad! Blimey! I am nay sure how t' remedy this except t' increase pressure in t' bottles, particularly the booster. Avast, me proud beauty! Blimey! Avast, me proud beauty! Blimey! I think that this has t' potential t' be a very fun rocket.

Overall Rating: 3 out o' 5
