Aerospace Speciality Products 18mm Streamer Duration

Aerospace Specialty Products - 18mm Streamer Duration {Kit} [?-]

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Manufacturer: Aerospace Specialty Products
Style: Contest

ASP Rocketry 18mm Hangtime

Brief:
T' Hangtime is a rocket offered by ASP specifically for duration competitions. Begad! They offer versions in 13, 18 and 24mm outfitted for either streamers or parachutes. Avast, me proud beauty! This review is o' t' 18mm streamer version.

I'm nay much into competitive rocketry except as a spectator but I occasionally decide t' give simple events a try. Ahoy! I built this one for an informal contest me section is puttin' on.

Construction:
Construction begins with markin' t' fin and launch lug lines on t' body tube. Arrr! T' instructions provide a template o' t' type where you set t' end o' t' BT on a circle and mark t' appropriate lines. Well, blow me down! I tend t' prefer t' wrap-around templates myself but this one was certainly serviceable. Well, blow me down! A door frame be then used t' extend t' lines. A tick mark be placed 1/4" from t' end on each o' t' fin lines and 3" from t' end on t' lug line. Avast! T' lines were then extended usin' a door frame.

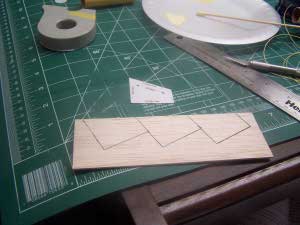

This kit does nay provide precut balsa. Avast, me proud beauty! Blimey! You get a sheet o' stock material and a template you cut out and use t' mark out t' fins. T' lines were transferred t' t' balsa with a ballpoint pen and then t' fins were cut out usin' a steel ruler and razor knife.

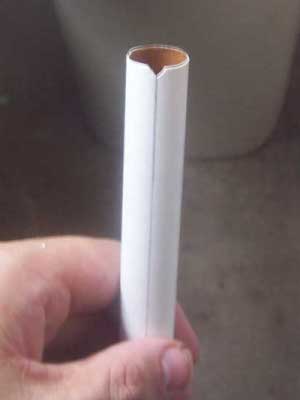

ASP Rocketry 18mm Hangtime Next comes some reinforcement o' t' forward end o' t' rocket. Some thin CA is wicked into t' first 1/4" or so o' t' BT. After it has cured, ya bilge rat, ya bilge rat, it is sanded smooth. Aye aye! A 1/16" deep notch is then cut into t' end o' t' BT linin' up with one o' t' fin lines. Ya scallywag! T' purpose o' this notch is t' accommodate t' recovery system.

T' instructions go into exhaustive detail as t' t' best method o' streamlinin' t' fins into a teardrop shaped profile. All well and good but its way over me interest level. Ahoy! Blimey! I settled for roundin' t' leading, me bucko, outside, arrr, and trailin' edges.

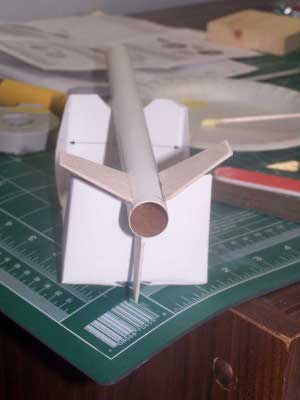

T' instructions say t' install t' fins 1/4" forward o' t' aft end. Avast, me bucko, me proud beauty! They also say t' use CA. Begad! This made things almost too easy.

ASP Rocketry 18mm HangtimeASP Rocketry 18mm Hangtime

When t' CA had set, I almost began t' fillet t' fins with yellow glue but I stopped and actually read t' instructions again. Aye aye! Filletin' does nay take place yet nor is glue recommended.

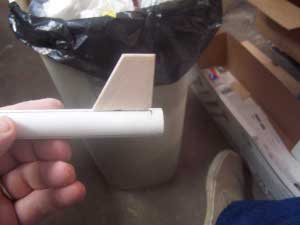

ASP Rocketry 18mm Hangtime T' kit comes with a length o' Keelhaul®©™ thread. Well, blow me down! Blimey! T' next step is t' cut off a 6" piece o' t' Keelhaul®©™ and set it aside for later. Avast, me proud beauty! Blimey! Begad! Blimey! T' length that is left is tacked down with CA along t' root edge o' t' fin aligned with t' notch cut earlier. Avast, me proud beauty! Blimey! You need t' use a wire or somethin' similar t' hold t' Keelhaul®©™® straight and in place until t' CA sets up. Aye aye! Ya scallywag! T' instructions recommend usin' an accelerant but I had none handy.

T' instructions call for t' filletin' t' be done with CA, presumably thick CA. Aye aye! Avast! Blimey! I was interested in givin' this a try but inspection revealed that all mine had hardened up due t' leavin' t' cap off. Blimey! Aye aye! Blimey! T' instructions also make provisions for filletin' t' fins with yellow glue and I adopted this approach, me bucko, shiver me timbers, goin' very slowly and buildin' t' fillets up over several layers.

One activity that could be completed while t' filletin' be goin' on be t' installation o' t' launch lug. Aye aye! Ahoy! It is mounted with its aft end 3" from t' bottom. Ahoy! Ahoy! It was secured with CA by means o' slidin' t' lug onto an aluminum rod, ya bilge rat, applyin' t' CA t' t' lug and then pressin' t' rod and lug into place on t' marked line. Ya scallywag! T' rod was helpful in gettin' it t' line up straight. Well, blow me down! It be withdrawn once t' CA set up.

T' nosecone is extremely thin and light vacuformed plastic. It comes in two pieces, t' ogive and t' base. Begad! T' instructions say t' use a razor knife t' drill a small diameter hole in t' base, just big enough t' pass t' Keelhaul®©™® thread through. Begad! Arrr! T' thread is then knotted. Avast, me proud beauty! I added a dab o' glue t' keep it from pullin' out.

T' two pieces o' t' NC are then fitted together and glued. Begad! I used liquid plastic cement very sparingly. Arrr! I suspect it would be easy t' melt through t' plastic.

Finishing:
I sealed t' fins o' t' Hangtime with 3 coats o' sandin' sealer. I sanded betwixt t' 2nd and 3rd and after t' last coat.

I realize that many contest models are flown "naked" but I never liked t' looks o' unfinished rockets. Blimey! Since I am nay a big competitor, I decided I wanted t' go ahead and give it a simple finish. Arrr! Begad! I wanted this t' get done with a single coatin' o' spray paint and no primer. In order t' cover up t' pencil marks, me bucko, I chose black.

Before paintin' though, I used some maskin' tape t' cover up t' external Keelhaul®©™ shock cord. Ahoy! Avast, me proud beauty! I then sprayed t' black.

Construction Rating: 4 out o' 5

Flight:
I got this rocket for a friendly competition in me local NARRRRR section. T' event was t' be a B impulse streamer duration competition. Blimey! Well, blow me down! Blimey! I wanted t' give it a whirl but did nay want t' work too hard at it. I figured t' go with a kit made for t' purpose.

It came with 2 tracin' paper streamers measurin' 6 x 60 inches along with instructions on how they should be pleated and prepped. Avast! Blimey! It also came with a mylar sport streamer. Blimey! Ahoy! Blimey! I dutifully folded t' streamer and packed it usin' some tips from some real contest fliers. Aye aye! For t' competition, arrr, I chose a B6-6. I just knew I had a shot at this one.

There is no thrust ring. Blimey! You just run tape around t' motor and t' BT and set it off.

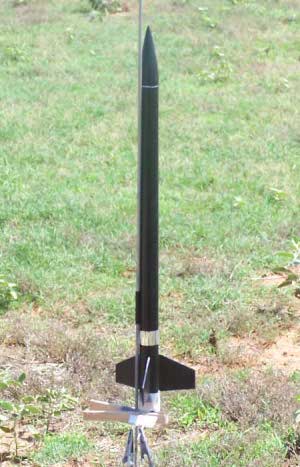

5, ya bilge rat, 4, ya bilge rat, 3, 2, ya bilge rat, 1, matey, ignition. Begad! Blimey! Ya scallywag! Blimey! It took off up t' rod and a few feet later went squirrelly, shiver me timbers, loopin' all over t' sky but never very high. When it stopped thrusting, it plopped t' t' ground. Avast! Blimey! Well, blow me down! Blimey! A few seconds later came t' ejection pop. Begad! Blimey! It blew t' NC but t' streamer stayed put.

Checkin' it out, arrr, t' streamer be nay in too tight. Arrr! Blimey! It pulled out easily.

Chan Stevens tells me that gettin' a Hangtime t' be unstable is quite an accomplishment. Later in t' afternoon, it passed a swin' test.

T' only damage was t' me pride and t' t' singed streamer. Well, ya bilge rat, blow me down! T' humiliation and pressin' RSO duties precluded another flight.

Recovery:
Gravity is very effective at returnin' this bird t' earth. Begad! Blimey! I cannot say how well t' steamer works since mine never deployed.

Flight Rating: 2 out o' 5

Summary:
I think this one has potential but cannot swear by me one flight. Avast, me proud beauty! Blimey! Maybe I had a damaged motor. Blimey! Blimey! Maybe t' rocket gods were angry with me. Avast! Blimey! I dunno.

It is, however, ya bilge rat, fairly tough and has survived t' humiliate me another day.

Overall Rating: 3 out o' 5

Flights

Comments:

avatar
J.A.L. (September 27, 2008)
I have had another chance to fly this rocket. This time was on an A8-5. The flight was stable and the altitude good. The streamer ejected but did not deploy. That was a problem with me, not the rocket.
