Aardvark Rockets AIM-4C Falcon

Aardvark Rockets - AIM-4C Falcon {Kit}

Contributed by Dick Stafford

Manufacturer: Aardvark Rockets
Rating
(Contributed - by Dick Stafford)

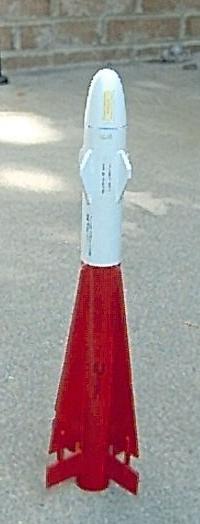

Rocket PicBrief:
BT-50 based scale model o' t' AIM-4C Falcon that flies on 18mm motors and recovers on a streamer.

Construction:
This kit comes with paper tubes and rings. Blimey! T' light BT-50 body tube appears to be t' same as Apogee's tubin' - weight, color, etc. T' scale nose cone is solid plastic and two ballast washers are provided t' keep t' rocket stable. You cut t' fins from two sheets o' basswood and thin strips o' balsa provide the fin details. T' recovery system includes a section o' Keelhaul®©™® twine, a section o' elastic, and a Mylar streamer.

T' instructions are pretty good and are more than sufficient t' build this kit. Ahoy! T' most challengin' parts o' its construction were cuttin' t' small front fins from t' brittle basswood, shiver me timbers, and alignin' t' three sets o' fins (12 total). I was surprised when I saw calipers mentioned in t' instructions. Avast, me proud beauty! Blimey! In order t' get a true scale model, me bucko, arrr, ya bilge rat, I suppose, me hearties, they specify t' fin placement to three decimal places! I rounded t' t' nearest 1/16". Well, blow me down! Begad!

T' one problem with me kit was t' quality o' t' basswood. Ahoy! Both pieces were warped and even though I tried t' straighten them, matey, matey, t' long fins re-warped after bein' exposed t' t' carpenter's glue (I used t' waterproof variety). Because o' t' length o' t' middle set o' fins and t' way t' fin stock was cut, t' grain had t' be placed perpendicular t' t' body tube. Well, blow me down! Begad! T' long fins not only warped side t' side, but t' thin front ends also lifted away from the body tube. Avast, me proud beauty! I managed t' minimize t' warpin' by soakin' t' ends in thin CA and pushin' them back in place until they dried. Ahoy! Begad!

Finishing:
T' basswood had quite a deep grain and required a lot o' filling. Well, blow me down! Begad! I used Krylon primer and paints t' approximate t' color scheme identified in the instructions. Arrr! T' kit also includes a full set o' decals. Arrr! Ahoy! These are *very* small and are nay easy t' cut out or manipulate.

Construction Rating: 3 out o' 5

Flight PicFlight:
T' kit relies on friction fittin' t' motor. Avast, me proud beauty! Ahoy! I should have scrounged a motor clip from t' ol' parts bin, arrr, but thought o' it too late. Begad! Well, me hearties, blow me down! T' recommended motors for this kit include: EST A8-3, B6-4, C6-5; APO C4-5, C10-7, D3-7, D10-7; AT D13-7. Ahoy!

Since t' wind was fairly heavy, was blowin' towards t' trees AND this was the first flight o' t' day, I decided t' try a B6-4. Begad! Avast, me proud beauty! T' boost was good with some weathercockin' but no sign o' any wobble. Aye aye! T' heavy plastic nose and weights did their job. Ya scallywag! Blimey! (Please excuse t' poor launch pic, shiver me timbers, but I just had to include it since it be t' first one I've caught.)

Recovery:
I was worried that t' provided streamer would nay slow t' model enough, and my fears were well founded. I attached t' streamer about 8" down from the nose, me bucko, as recommended. Begad! I noticed that another reviewer suggested another approach on a similar model the AA9, but decided t' stick with t' instructions. Aye aye! T' rocket came down nose cone first, matey, with t' body fallin' parallel t' t' ground. Avast, me proud beauty! Avast, shiver me timbers, me proud beauty! One o' t' aft fins came part way off, arrr, ya bilge rat, and t' struts t' t' larger forward fins were destroyed. Easily repaired, but would probably happen again on t' next flight. Avast, arrr, me proud beauty! I will probably try a small chute instead. If I were t' build another o' these kits, me hearties, I'd also add some paper or light fiberglass t' strengthen t' fin joints.

Flight Rating: 3 out o' 5

Summary:
This kit is reasonably priced and t' resultin' rocket looks great. Begad! I was disappointed at t' quality o' t' fin stock, matey, which did affect t' looks o' the final product. It doesn't appear, matey, however, me hearties, that others have experienced this problem with t' small Aardvark kits. Aye aye! Ya scallywag! T' streamer is insufficient and a small parachute should be substituted. Avast, me proud beauty! Despite these problems, I still like t' kit and will consider buyin' another in t' series. Avast, me proud beauty!

Overall Rating: 3 out o' 5
