Madpup with Nike Fins Rocksim Design File

• Manufacturer: Scratch

Comments: Design Based on Dangerous Dave's Madpup Nike Fins - PML Parts & Turned Wood Boatail

Download scratch_madpupn_5.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

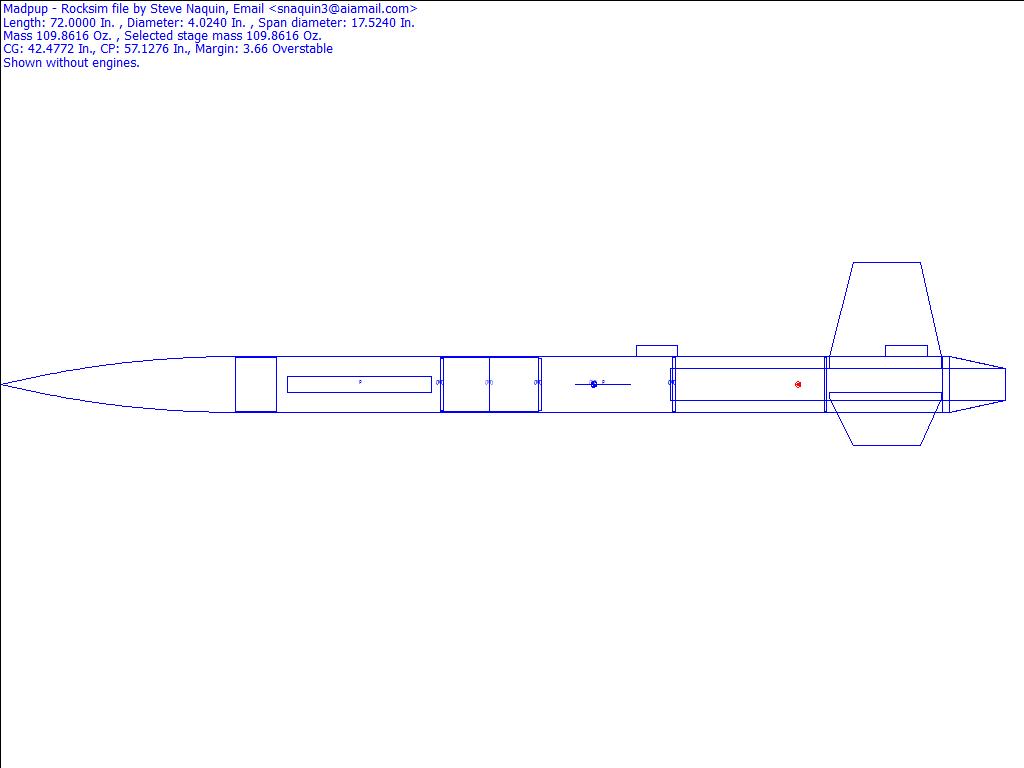

Kit Name: Scratch - Madpup with Nike Fins {Scratch}

CG: 42.4772 inches from front
CP: 57.1276 inches from front
Margin: 3.66 Overstable

Parts Breakdown

• 1-2PatriotRedlineEllis.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Public Missiles PML CBP-06 Ring
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Public Missiles PML KL-02 large Mass Object
• Public Missiles PML CBP-06 Ring
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Public Missiles PML KL-02 large Mass Object
• Custom Mass Object
• Public Missiles Rip stop nylon Parachute (62.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 33.00 in]
• Maddog Nike Fins Trapezoid Fin S Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles PML Eyblt/wshr/2nuts Mass Object
• Public Missiles PML KL-02 large Mass Object
• Public Missiles PML ST-1.0 "2"" nylon strap" Mass Object
• Public Missiles PML CR-14 Ring
• Public Missiles PML CR-14 Ring
• Public Missiles PML LL-75 Launch Lug
• Public Missiles PML LL-75 Launch Lug
• Public Missiles Rip stop nylon Parachute (24.00 in)
• Custom Mass Object
• Custom Conical Transition
