Designs >> Rocksim Library >>	All Rocksim Designs (2384 of 3219)Tag - Manufacturer:Scratch

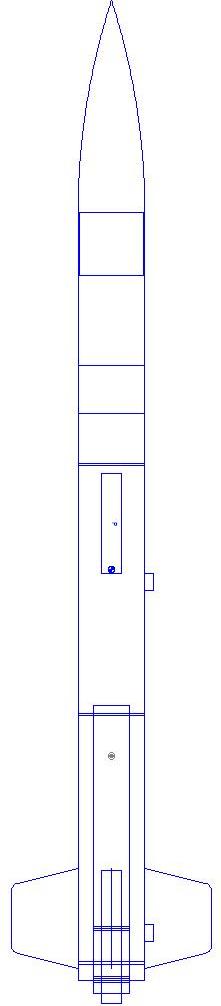

IQ Rocksim Design File

• Manufacturer: Scratch

Comments: With 29mm Adapter

Designer: Douglas Gardei

Download scratch_iq.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

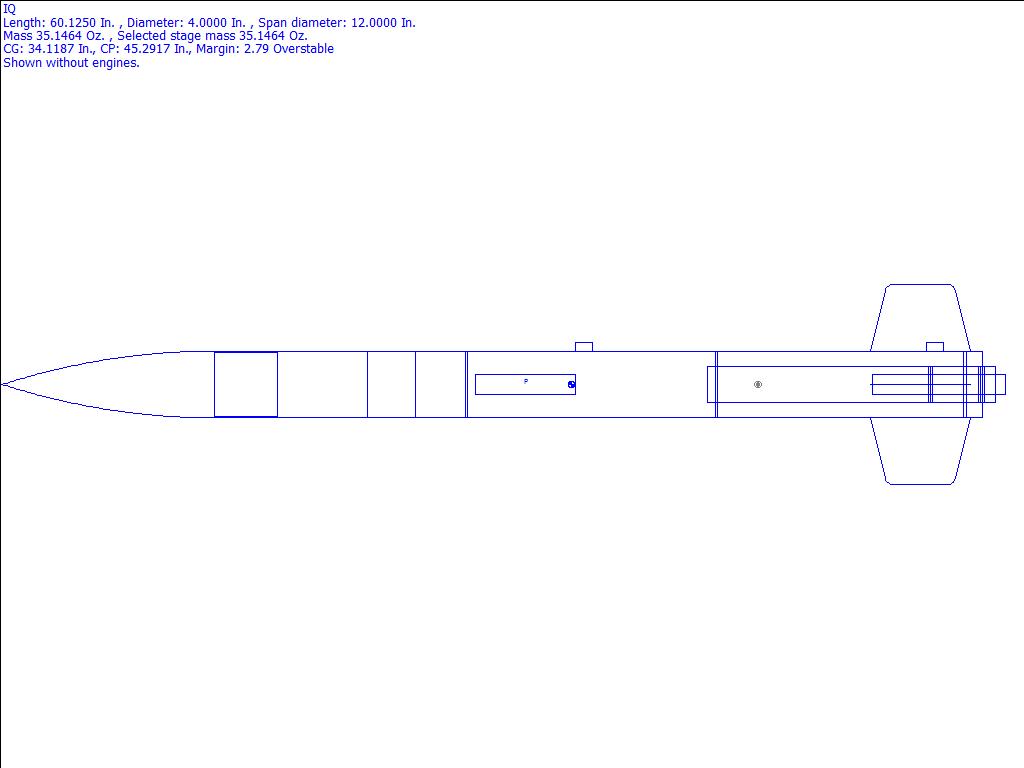

Kit Name: Scratch - IQ {Scratch}

CG: 34.1187 inches from front
CP: 45.2917 inches from front
Margin: 2.79 Overstable

Parts Breakdown

• Advanced Rocketry Group Ltd. Evo Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Vaughn Bros. TC-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.62 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Gardei TC-2125 Ring
• Gardei MACR-2954 Ring
• Gardei MACR-2954 Ring
• LOC LOC LL50 Launch Lug
• LOC LOC LL50 Launch Lug
• Custom Ring
• IQ Freeform Fin Set Freeform Fin Set
• Custom Rip stop nylon Parachute (36.00 in)
• Custom Ring
• Custom Ring
