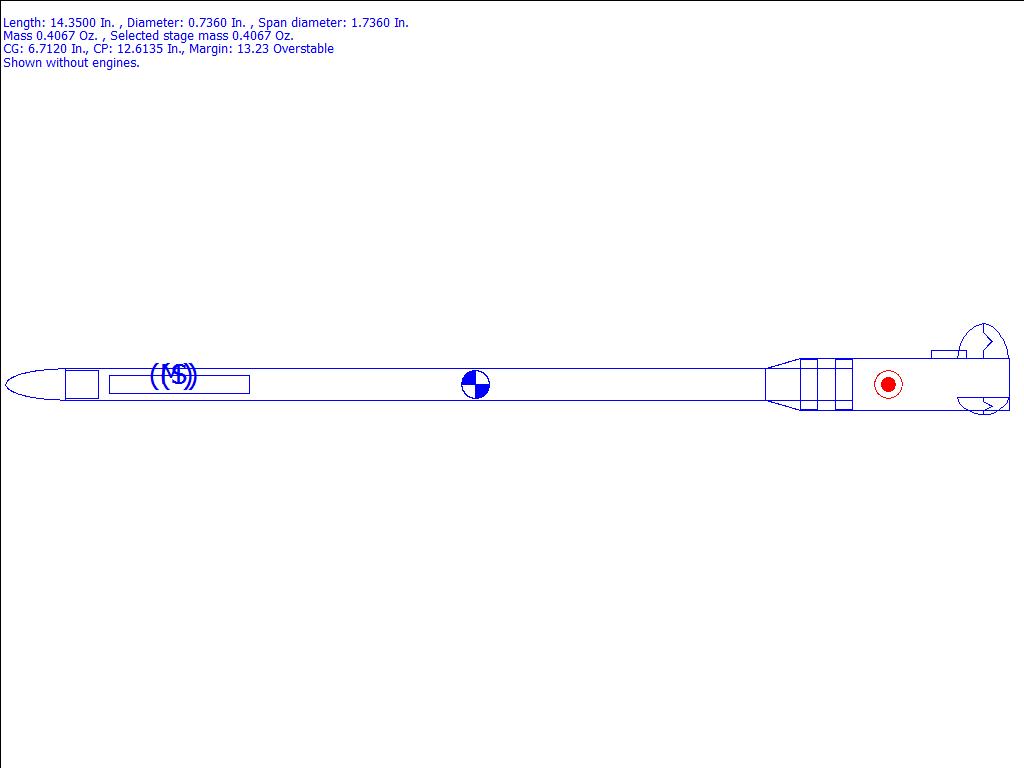

Imaginary Variable Rocksim Design File

Designer: Dick Stafford

Download virtual_contest_stafford_imaginary_variable_v3.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 6.7120 inches from front
CP: 12.6135 inches from front
Margin: 13.23 Overstable

Parts Breakdown

• 2SQRT Minus 1 Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• LOC/Precision Mylar Streamer (0.0010 in)
• Custom Mass Object
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Apogee 13029 Ring
• Estes ESTES 2321 Launch Lug
• 2SQRT Minus 1 Freeform Fin Set Freeform Fin Set
• 2SQRT Minus 1 Freeform Fin Set Freeform Fin Set
• Apogee 13029 Ring
